Home > Auto, Motorcycle Parts & Accessories > Car Electronics > Car Charger > 6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus thumbnail-3

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus thumbnail-4

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus thumbnail-5

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus thumbnail-6

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-1

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-2

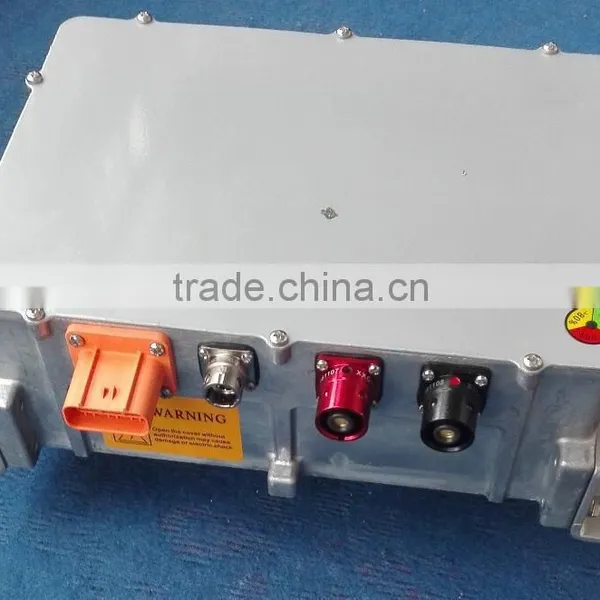

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-3

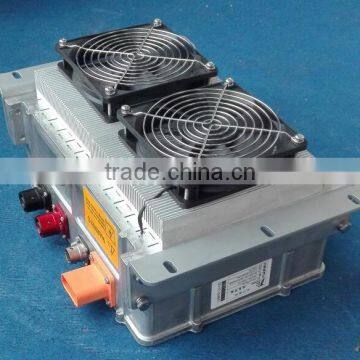

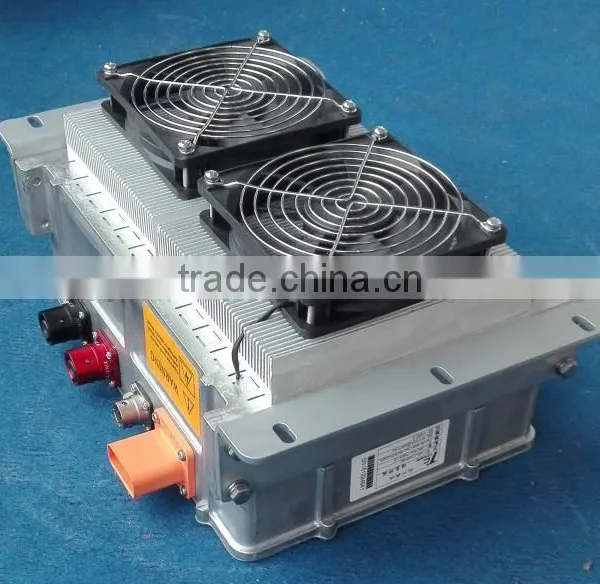

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-4

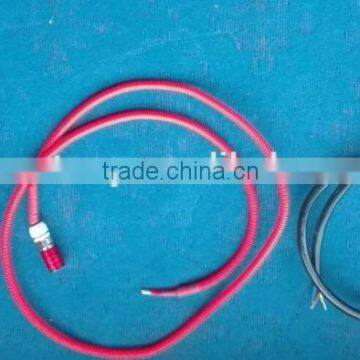

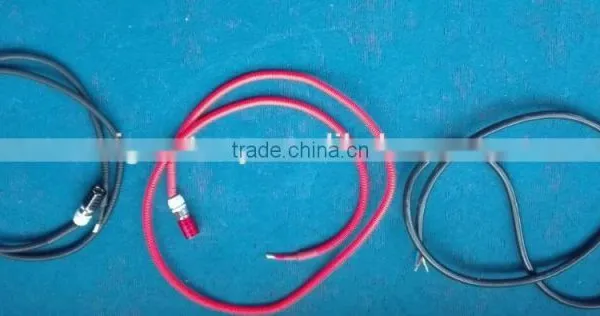

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-5

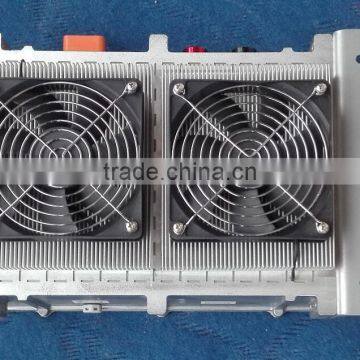

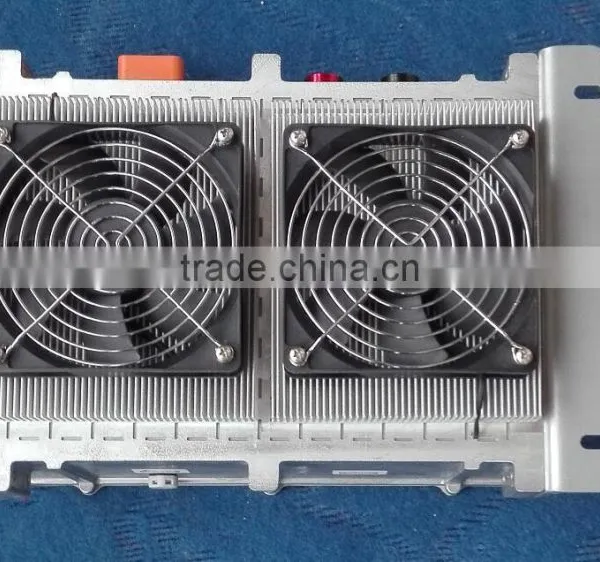

6.6KW 132V 64A on Board Lithium EV Battery Charger With Canbus photo-6

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Model Number:

HK-J-H132-64

Contact Supplier Request Quote Chat Now

Dezhou Greatway Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name GW

Model Number HK-J-H132-64

Warranty 12 Months

HK-J Series 6.6KW charger is a new generation of charger, it replaced the old charger GWCH series charger ,which is based on the national standard charger, specially designed the product that supply the power battery of electric vehicles . The charger not only has the advantages of high efficiency, small size, high stability, long life, more high protection level, high reliability, complete protection and other characteristics, is the ideal charging power device for electric vehicle . The Charger is built-in thermal sensors, with overheating protection, can be automatically restored. Fully encapsulated potting process, up to IP67 degree of protection, to ensure that the charger can work without causing failure under any complex environment

2. Main feature:

1) Full potting process, air cooling (modular optional) , it can be reliably work in 40 ℃ - +85 ℃ degrees of conditions

2) Built-in temperature sensor, It can be turn off the output in hazardous operating conditions (internal 95 ° C)

3) Protection class IP67,it can work safely in mmersion conditionin short time



	6. Safety and others

			Input to Output:2000VAC≤10mA
	Withstand Voltage		Input to Ground:2000VAC≤12mA
	Withstand Voltage
			Output to Ground:2000VAC≤10mA,all 1min

	Insulation Resistance		Input, output, signal terminal to casing≥10MΩ
	Insulation Resistance		Testing Voltage 1000VDC
			Testing Voltage 1000VDC
Electromagnetic		GB/T 18487.3-2001		11.3.1
Immunity		GB/T 18487.3-2001		11.3.1
Immunity
Electromagnetic		GB/T 18487.3-2001		11.3.2
Abusive		GB/T 18487.3-2001		11.3.2
Abusive
Harmonic Current		GB 17625.1-2003		6.7.1.1

Inrush Starting Current		≤24A

Current-rise Time		≤5S,Overshoot≤5%

Close Response time		100% --10%≤50mS,100- 0%≤200mS

Protection Level		IP67

Vibration Resistance	10-25Hz Amplitude1.2mm,25-500Hz 30m/s2,8hrs per direction

Noise		≤60dB(A )

MTBF		150000H

Work Environment		Relative Temp 5%-95% No condensation

Working Temperature		-35℃ ~ +85℃

Storage Temperature		-55℃ ~ +100℃

Lead acid Battery charger	Lithium Battery charger	Output voltage Nominal	Output voltage Maximum	Output current Maximum
HK-J-H48-105	HK-J-H66-105	48V	66V	105A
HK-J--H60-90	HK-J-H82.6-90	60V	82.6V	90A
HK-J-H-72-75	HK-J-H96.2-75	72V	96.2V	75A
HK-J-H-84-63	HK-J-H112-63	84V	112V	63A
HK-J-H-96-54	HK-J-H130-54	96V	130V	54A
HK-J-H108-J48	HK-J-H144.7-48	108V	114.7V	48A
HK-J-H120-45	HK-J-H168-45	120V	168V	45A
HK-J-H144-36	HK-J-H192-36	144V	192V	36A
HK-J-H156-33	HK-J-H208-33	156V	208V	33A
HK-J-H180-27	HK-J-H233.3-30	180V	233.3V	30A
HK-J-H192-27	HK-J-H243-27	192V	243V	27A
HK-J-H216-24	HK-J-H289.5-24	216V	289V	24A
HK-J-H240-21.6	HK-J-H337-21.6	240V	337v	21.6A
HK-J-H288-20	HK-J-H389-18	288V	389v	20A
HK-J-H16.5	HK-J-H417-18	312V	417v	18A
