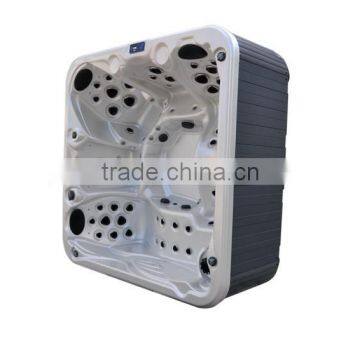

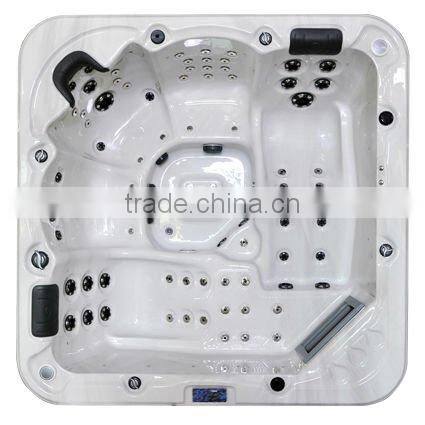

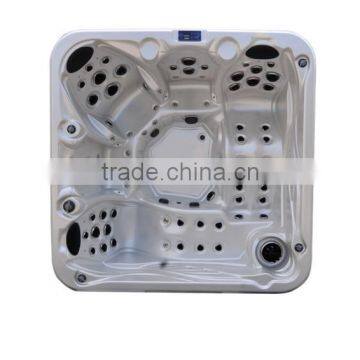

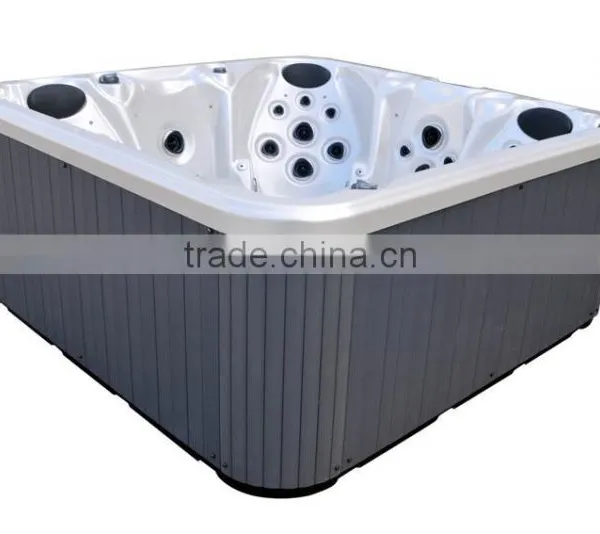

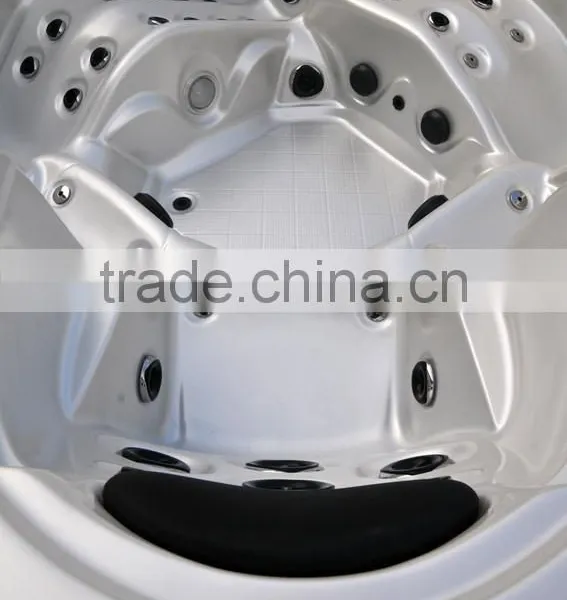

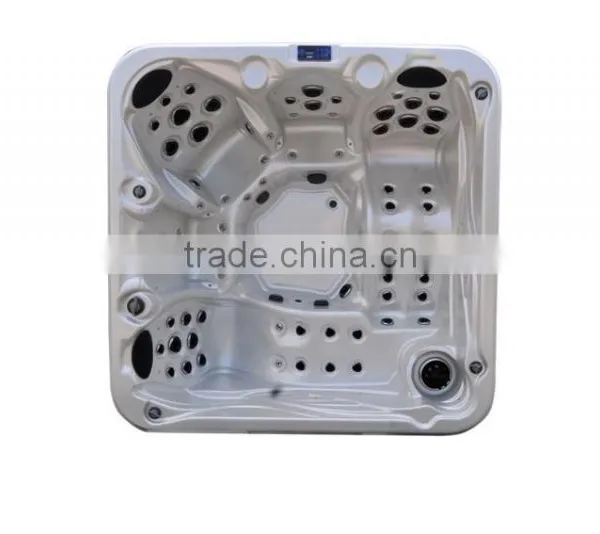

Acrylic Material and Corner,Center Drain Location Bathroom Tub for Jakuziy

STANDARD SYSTEM

SPECIFICATIONS:

Model No.:A521

6 sets / 20'GP

12 sets / 40'HQ

G.W.: 447kgs

N.W.: 409kgs

Volume: 4.5CBM

Dimensions (L x W x H):

213x213x 92 cm

Seating Capacity:

5 adults

Lounge Seat (s):

2

Water Capacity:

1,136 liters

Dry Weight:

408 kg

Filled Weight:

1,544kg

Spa Shell Material(USA):

Lucite® Acrylic (Standard Shell Colors: Alba, Sterling silver & Navy)

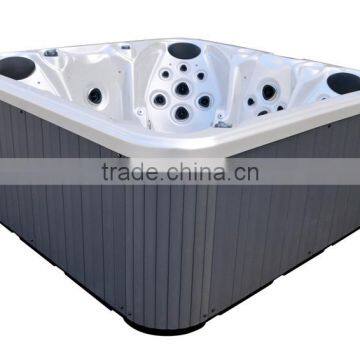

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Preserve Woods+ stainless steel

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim(USA):

Dark Grey Plastic

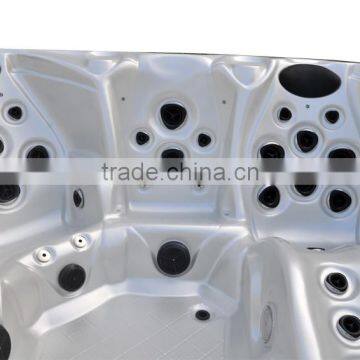

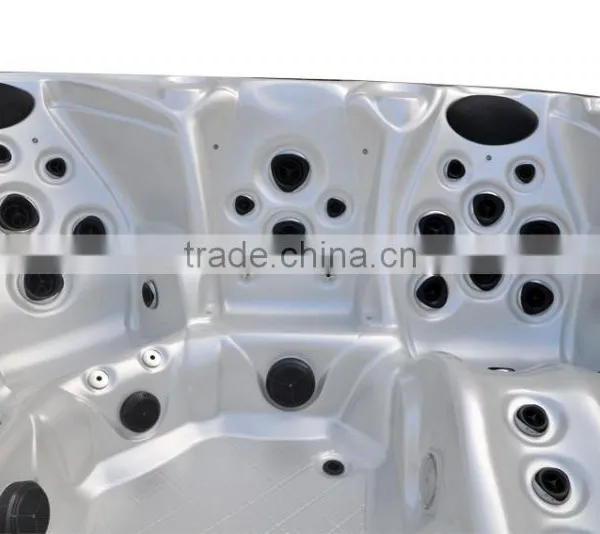

Total Jets (pcs):

61

5" Rotational  Jets (pcs)

7

5" Massage Jets pcs):

1

4" Rotational Jets (pcs):

8

4" Directional Jets (pcs):

1

3" Rotational Jets (pcs):

4

2" Rotational Jets (pcs):

28

2" Directional Jets (pcs):

6

1" Directional Jets (pcs):

2

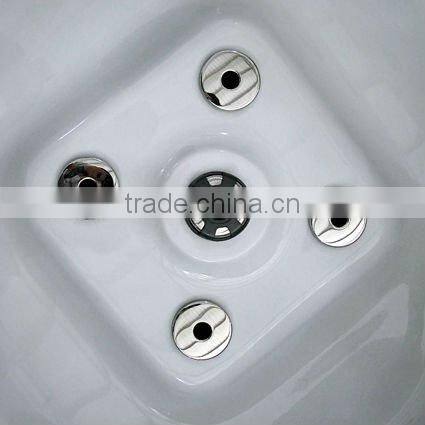

Ozone Jets

8

Air jets(pcs) (Optional):

1

Pump 1(CE, TUV Approved):

One-speed / 3.0HP

Pump 2(CE, TUV Approved):

One-speed / 3.0HP

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

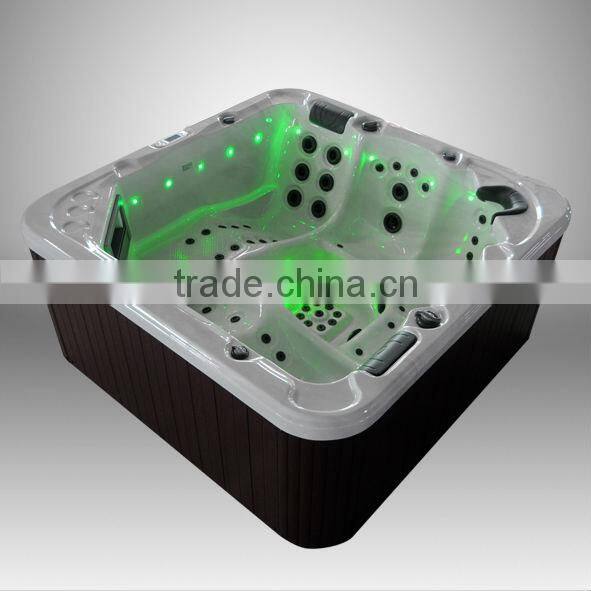

Lighting(ETL Approved):

Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 26A Max.

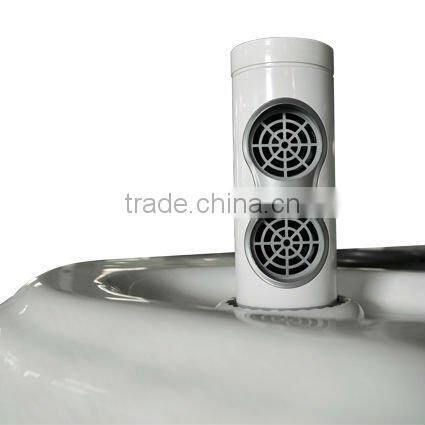

Suctions(UL Approved):

2 x 200GPM, 3 x 94GPM

Filter Size:

100sq.ft.

Diverter Valve(pc):

2

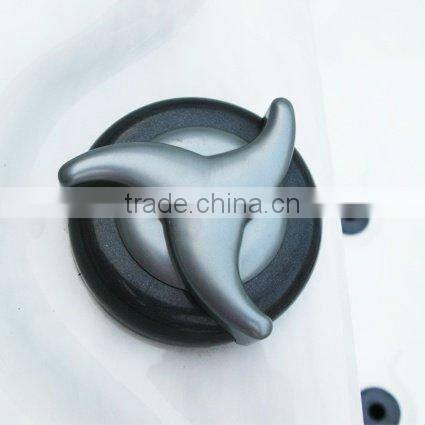

Air Control Valves (pcs):

3

EVA Spa Pillows(pcs):

3

Bottom Drain(pc):

1

Drain Valve(pc):

1

Using spray insulating PU foam (USA) on the under-side of the spa shell:

Yes

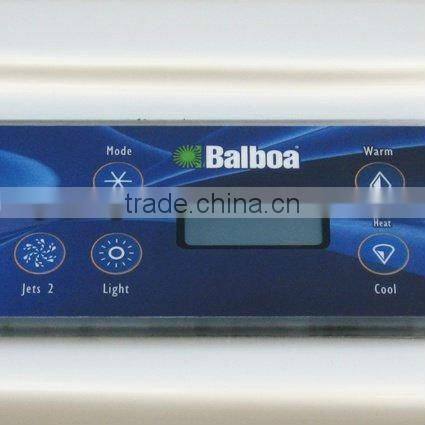

Sparelax Control System

Yes
