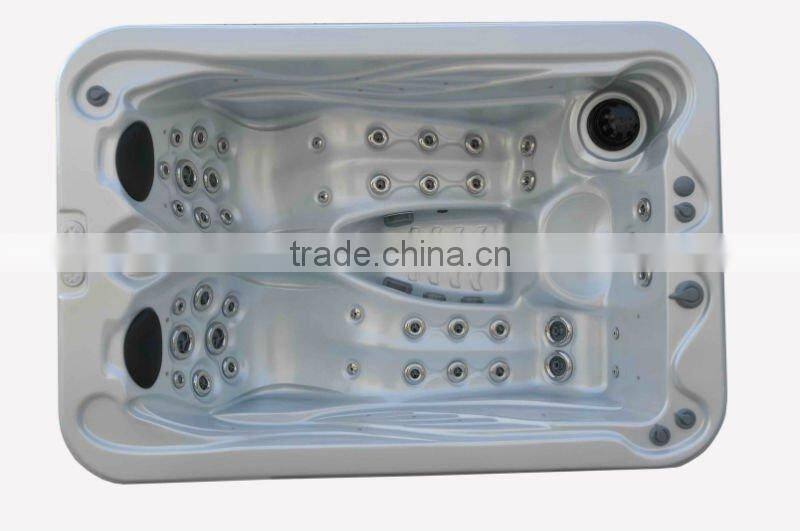

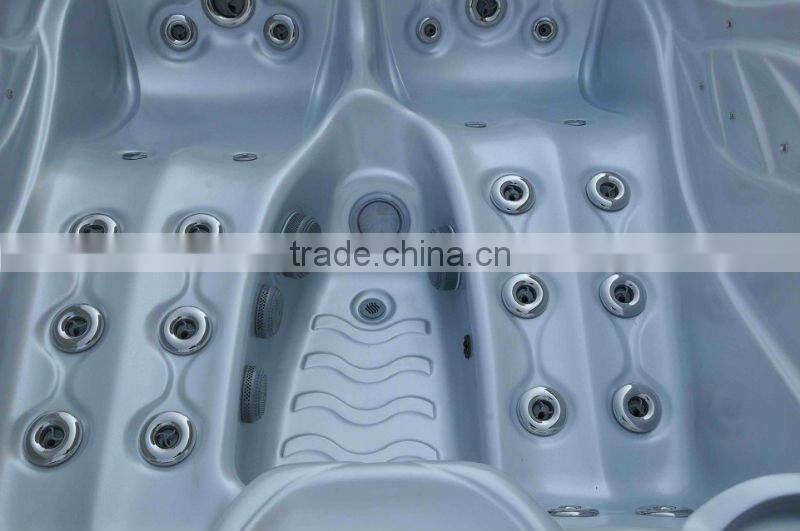

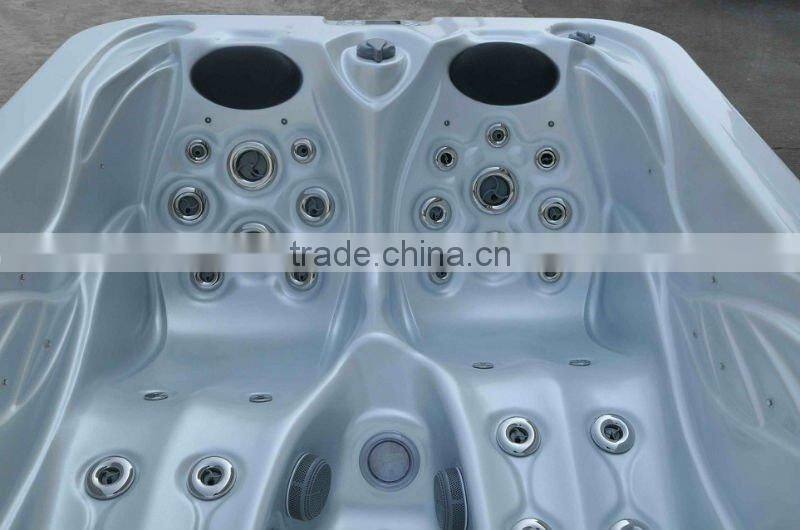

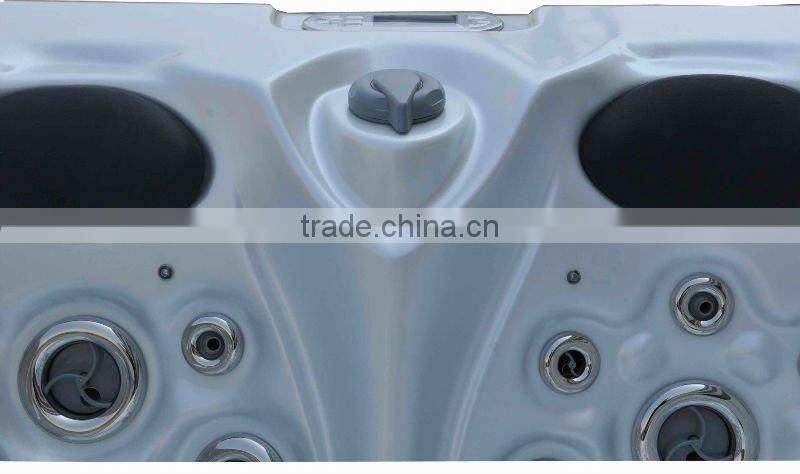

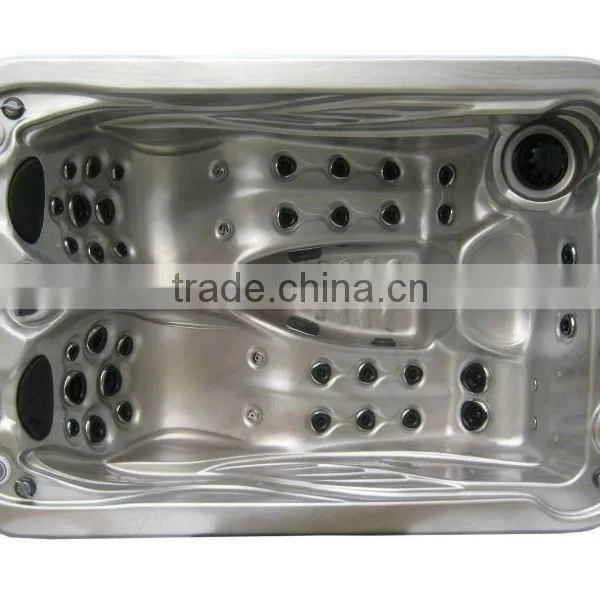

Lover Outdoor Spa S300

STANDARD SYSTEM

Massage spa

Model No.: S300

Loading Quantity:  14 sets / 40'HQ

7 sets / 20'HQ

Dimensions (L x W x H):

225x155x78cm

Seating Capacity:

3 adults

Lounge Seat (s):

2

Water Capacity:

695 liters

Dry Weight:

256 kg

Filled Weight:

951 kg

Spa Shell Material:

Lucite® Acrylic(Standard Shell Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Stainless steel Frame

Bottom (Pedestal Base):

Fiberglass bottom

Jet Ring Trim:

Dark Grey Plastic (Rising Dragon Alpha series )

Total Jets (pcs):

37

5" Rotational Jets (pcs)

3

5" Massage Jets (pcs)

2

4" Rotational Jets (pcs)

3

3" Rotational Jets (pcs):

18

3" Directional Jets (pcs):

3

2" Rotational Jets (pcs):

2

2" Directional Jets (pcs):

5

Ozone Jets (pcs):

1

1" Air Jets:(Option)

6

Control system

Balboa GS501Z System w/

VL400 Panel

Pump 1(CE, TUV Approved):

One-speed / 2.0HP

Pump 2(CE, TUV Approved):

One-speed / 2.0HP

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

1 x 12V, Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 16A Max.

Suctions(UL Approved):

2 x 200GPM, 2 x 94GPM

Filter Size:

50sq.ft.

Diverter Valve(pc):

2

Air Control Valves (pcs):

4

EVA Spa Pillows(pcs):

2

Bottom Drain(pc):

1

Drain Valve(pc):

1

Reflective aluminum foil and batt

insulation on the bottom and the

backsides of spa cabinet (inside)

Yes

Using spray insulating PU foam (USA) on the under-side of the spa shell:

Yes
