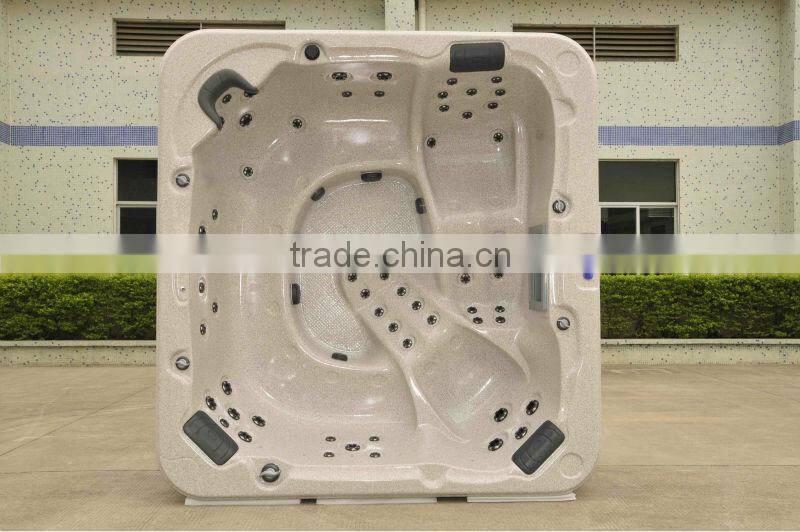

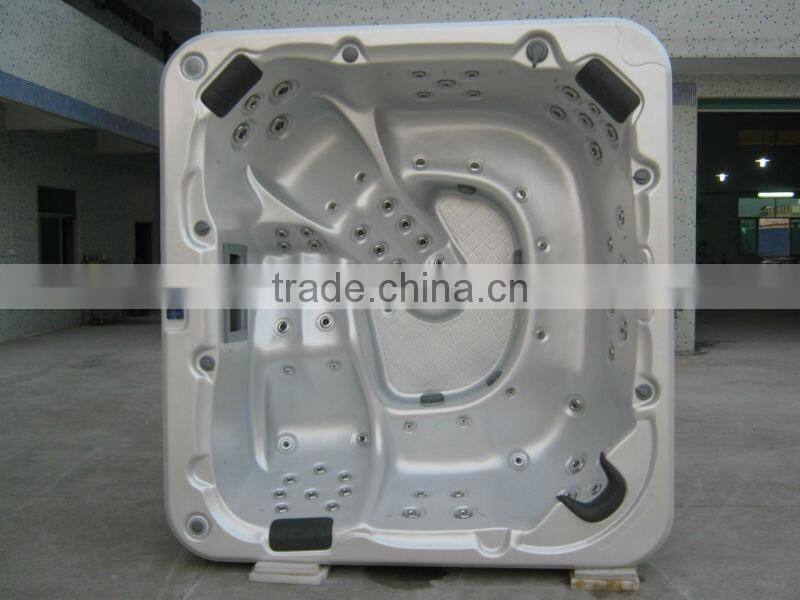

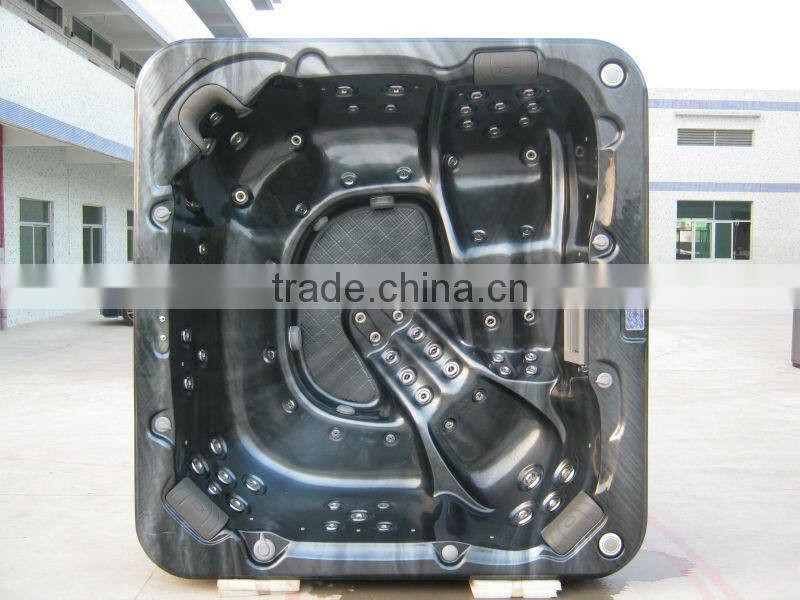

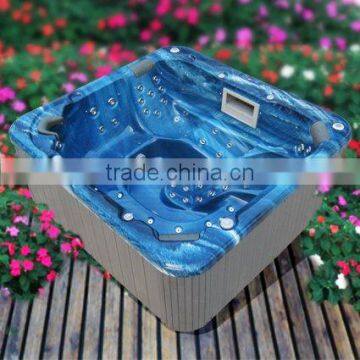

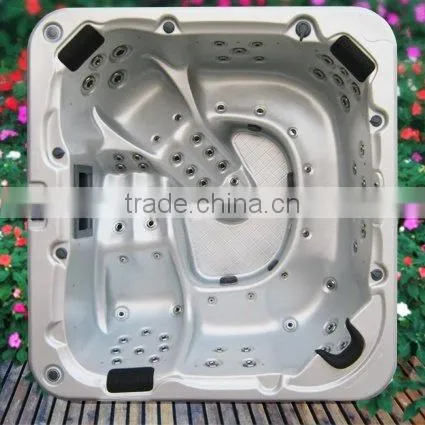

Fountain Jet Outdoor Water Spa-A860

STANDARD SYSTEM

Jacuzzy Spa SPECIFICATIONS:

Model No.: A860

Loading Quantity:

4 sets / 20'GP

12 sets / 40'HQ

Dimensions (L x W x H):

225 x 238 x 92 cm

Seating Capacity:

7-8 adults

Lounge Seat (s):

2

Water Capacity:

1,605 liters

Dry Weight:

475 kg

Filled Weight:

1,925 kg

Spa Shell Material(USA):

Lucite® Acrylic (Standard Shell Colors: Alba, Sterling silver & Navy)

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Preserve Woods+stainless steel

Bottom (Pedestal Base):

PVC Plastic sheet

Jet Ring Trim(USA):

Dark Grey Plastic

Total Jets (pcs):

64

4" Rotational Jets (pcs):

3

3" Rotational Jets (pcs):

7

3" Directional Jets (pcs):

6

2" Rotational Jets (pcs):

31

2" Directional Jets (pcs):

16

Ozone Jets (pcs):

1

Air jets(pcs) (Optional):

12

Pump 1(CE, TUV Approved):

One-speed / 3.0HP

Pump 2(CE, TUV Approved):

One-speed / 3.0HP

Circulation Pump (CE, TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

Multi-coloured LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 26A Max.

Suctions(UL Approved):

2 x 200GPM, 3 x 94GPM

Filter Size:

100 sq.ft.

Diverter Valve(pc):

1

Air Control Valves (pcs):

4

EVA Spa Pillows(pcs):

4

Bottom Drain(pc):

1

Drain Valve(pc):

1

Insulation(High density closed PU foam(USA)):

Yes

Item:

Spa
