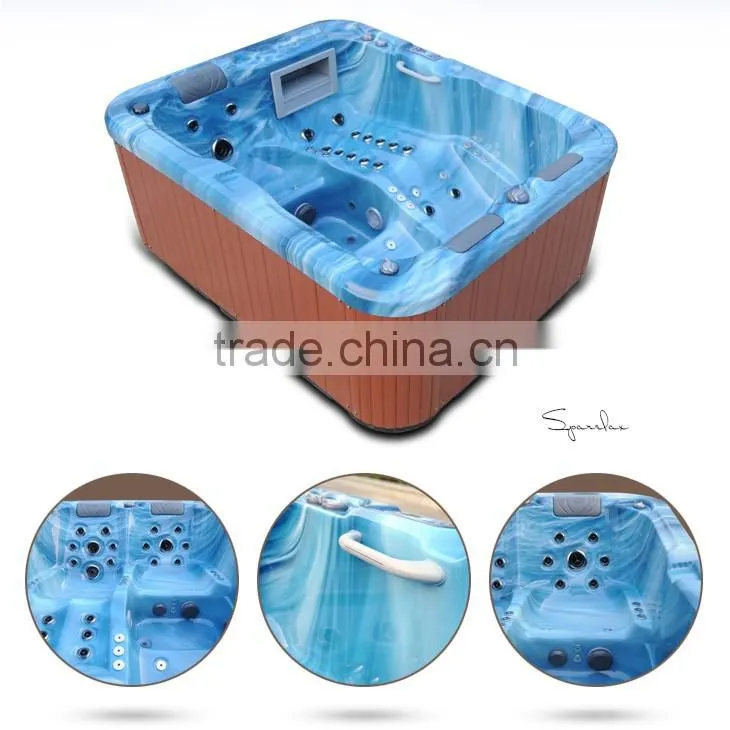

Small Massage Bathtubs for Family Two Person Indoor Spa Tubs With 33 Jets Hot Spa Tub

STANDARD SYSTEM

SPECIFICATIONS:

Model No.: A430

hot tub spa

Loading Quantity:

7 sets / 20'GP

14 sets / 40'HQ

Dimensions (L x W x H):

205x 165 x 80 cm(ABS)/82cm

Seating Capacity:

3adults

Lounge Seat (s):

1

Water Capacity:

776 liters

Dry Weight:

281 kg

Filled Weight:

1,057 kg

Spa Shell Material:

Lucite® Acrylic

Spa Cabinet Material:

PS Wood-Plastic Composite Panels

Cabinet Frame:

Preserve Woods + stainless steel

Bottom (Pedestal Base):

ABS Plastic sheet

Jet Ring Trim:

Dark Grey Plastic

Total Jets (pcs):

33

Pump 1(CE, TUV Approved):

One -speed / 3.0HP

Circulation Pump (CE,TUV Approved):

1 x 0.5HP

Heater(CE, UL Approved):

1 x 3.0kW

Lighting(ETL Approved):

Multi-colored LED Underwater Light

Ozone Water Purification System:

Yes

Electrical Requirements:

220-240V/50Hz, 15.6A Max.

Suctions(UL Approved):

1x 200GPM,2x 94GPM

Filter Size:

100 sq.ft.

Diverter Valve(pc):

1

Air Control Valves (pcs):

2

EVA Spa Pillows(pcs):

3

Bottom Drain(pc):

1

Drain Valve(pc):

1

Using spray insulating PU foam (USA) on the under-side of the spa shell

Yes

SpaRelax  Control system

Yes
