Remote Control Wristband for Events / Party Dmx Wristband

remote control wristband for events / party dmx wristband

DMX 512 compatible. with3 x RGB lights. can program custom light colors and flashing way via DMX512 controller. accept max. 20 groups for separate group control.

Instruction Manual DMX control Wrist Band

Notice: This DMX512 control wristband has 2 functions:

1) The on/off switch on back works to change led color and switch on/off. ( This function only works when

     there is no DMX signal ( means: do not connect the transmitter with DMX512 controller ).

2) When connect the transmitter with DMX512 controller, there is DMX signal and the on/off switch on

     back of wristbands do not work when you press it.

 This is On/off switch function of the DMX control wristband/ bracelet.

- 1) First remove the plastic strip at the back of the wrist band.

       if there not connect transmitter and DMX512 controller, there is no DMX signal:

- 2) Then press the button at its back, the wrist band lights on.

- 3) If you press again, it will change to other color or RGB color automatic change. Press for 2 seconds,

       it lights off.

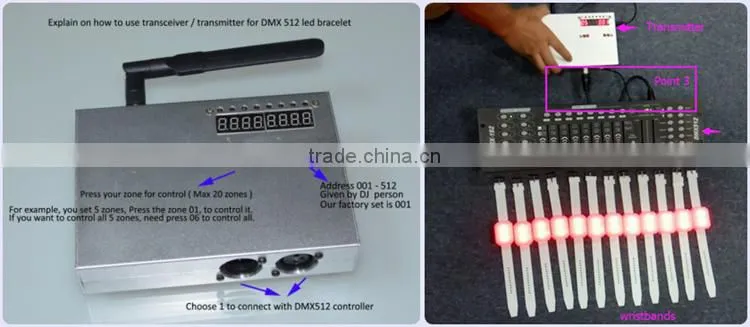

Transmitter:

- First connect DMX 512 controller and Transmitter by plugging the data wire ( see above pic point 3 )

- Please connect the transmitter to the power supply.

- On the transmitter panel, there are two set of RED buttons you can set.

A. The 2 on the left: referring to number of zone ( 1-20) you can control. Means you can assign max.

     20 zones for the DMX512 wristbands. Wristbands on the same zone, will work in the same flash way

     and work at same time. For the 12pcs samples, we did not assign zones. It is total 1 zone . So just press

      01 to control all these 12 pcs wristbands in Zone 1.

B. The 2 red buttons on the right side: referring to DMX address ( 001 - 512 ). Means you can write an ID

    or address for each wristband or include all other DMX control audio or sound, etc.

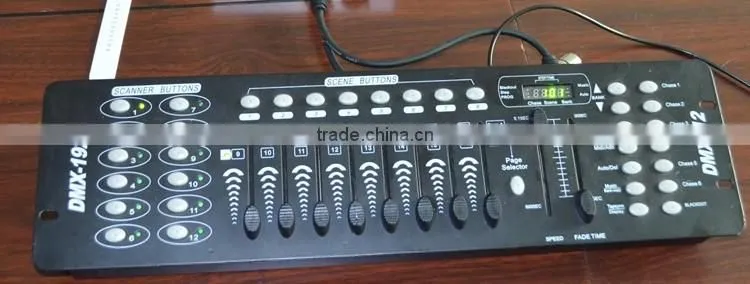

DMX512 controller

- When succeed in connecting the transmitter with the DMX 512 controller, the on/off button on wristband back does not work, only the DMX512 controller can activate these wristbands.

Suggestions: If you are not professional in using DMX512 controller, please ask a DJ people to work on it.

KL-0610 DMX512 control led wristbands: /v_show/id_XMTYwODgwNzE0NA==.html

DMX512 led wristbands, Event effect video: /89938276

Our advantage for the dmx512 led bracelet:

1) Our software program and transceiver are under our own R&D, stable and strong signal, over 500 meters

 control distance. Both bracelets and transceiver can be used again and again for 2 - 3 years.

  The transceiver is 2 in 1, with address writer function. You can write address for each led bracelets and

  divided into groups to control separately. ( For this point, only ours DMX led bracelets have )

2) There is an ON/OFF switch on the back cover of battery. When there is DMX signal, the led      bracelet goes to DMX512 control automatically. When there is no transceiver for DMX signal, the   led bracelet goes to maul mode to work as simple on/off led bracelet. You can switch the bracelet on or off by yourself, instead of DMX512 controller. ( For this point, only ours DMX led bracelets have )

3) It is powered by 2 x 4LR44 dry battery, work at 6 hours continue use and easy to replace it after battery used off. Also its standby time is over 1 year after you load the dry battery inside and do not use it.
