automatic snack food making machinery
Introduction:
This line use wheat flour as the main raw material, first extruded, cured by the double screw extruder, then fried by the fryer, this line can produce the salad snack food with fashion shape, good and special taste, the tissue of the food fine and smooth, easily to absorb and is quite popular in the market.,and it can produce the snack food automatically.
Voltage:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Technical parameter :
Model |
CY65-II |
CY70-II |
CY85-II |
Installed capacity |
54KW |
60KW |
135.5KW |
Power consumption |
35KW |
40KW |
105.6KW |
Output |
120-150kg/h |
160-180kg/h |
200-250kg/h |
Size |
14000*1200*2200mm |
16000*1200*2200mm |
33000*1800*2500mm |
Photo |
|
|
|

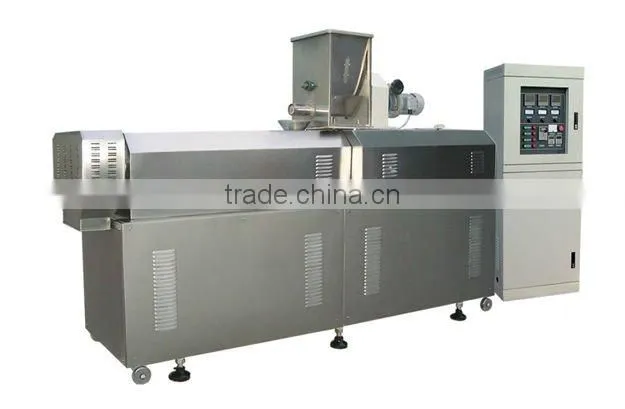

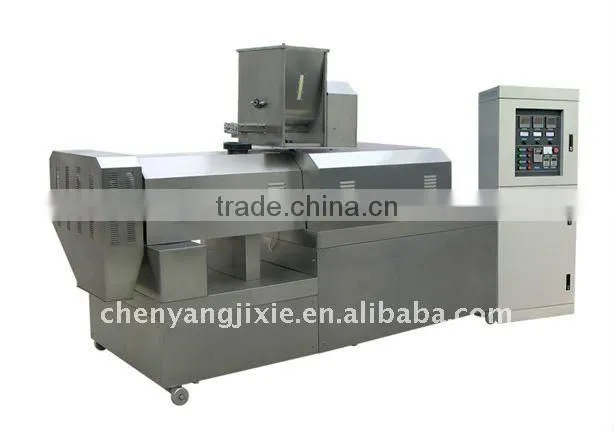

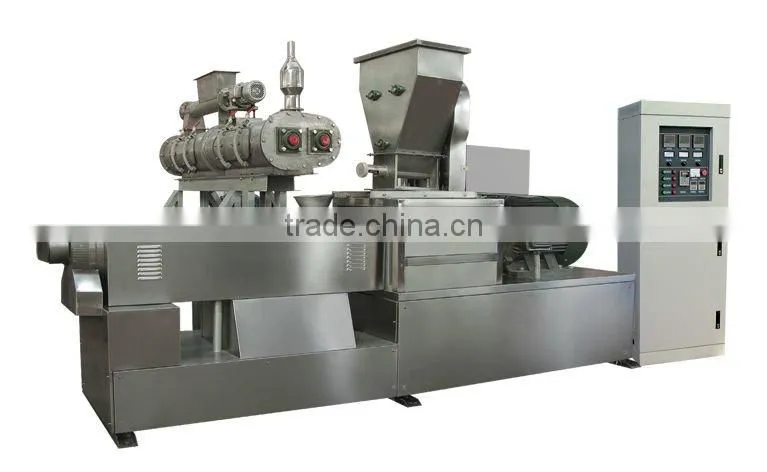

CY65-II double screw extruder :
main motor:22 KW
cutting motor :0.37 kw
feeding motor:0.75kw
oil control motor:0.75kw
capacity: 120-150kg/h
size: 3.0*1.0*1.8 m
Screw diameter:65mm
Screw length:1050mm
Barrel/Screw materials:38 ARMOAL
The barrel and screw HRC(High-Rupturing capacity):60

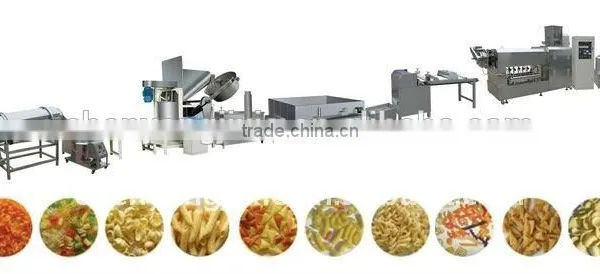

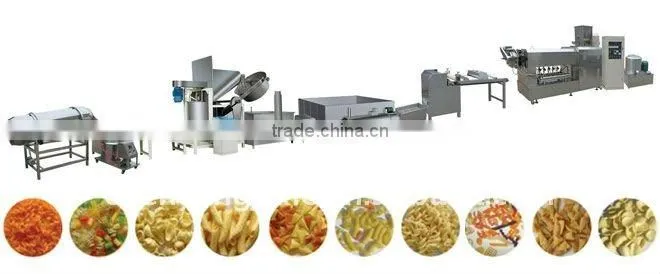

The detailed information for fried snack food production line:
NO |
Machine
|
Motor Power
|
Capacity
|
dimension
|
Quantity
|
Function |
1 |
Mixer |
4KW |
50kg/3-5min
|
800*700*1200mm |
1set |
To mix the raw materials with the water |
2 |
screw conveyor |
1.1KW |
|
3000*800*2000mm |
1set |
To send the materials to the extruder |
3 |
CY65-II Double screw extrude |
30KW
|
100-200kg/h |
2200*1200*3000mm |
1set |
To extrude and inflate the food. |
4 |
Conver cutting shaper
|
1.5KW |
150kg/h |
1000*800*1300mm |
1set |
Can cut various shapes according to you |
5 |
Automatic fryer
|
120KW |
150kg/h |
4500*1000*2000mm |
1 set
|
Fry the snack food |
6 |
Automatic flavoring line |
6.5KW |
100-200kg/h |
4000*700*2000mm |
1set |
Have different delicious taste |
Samples:

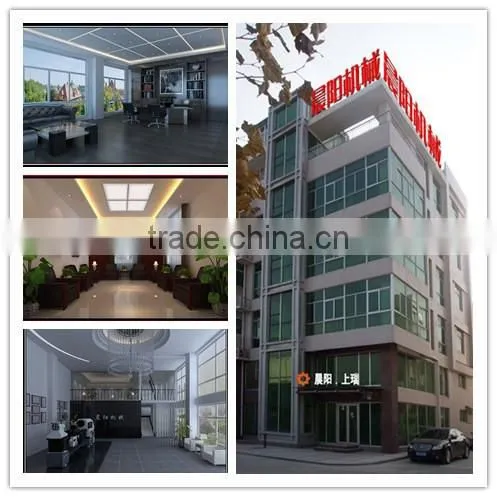

Our Company:
Our partner:
Our customer:
Our Certificate:
If you have any question about our product or any other question about this kind of machine ,please contact with us,we will try our best to help you with your problems.
We-chat:2621693984
QQ:2621693984
you can also write Email to me,and my name is daisy.I will reply you within 24 hours.
welcome to visite our company!
