Specifications
1 large amount2 good price
3 best quality

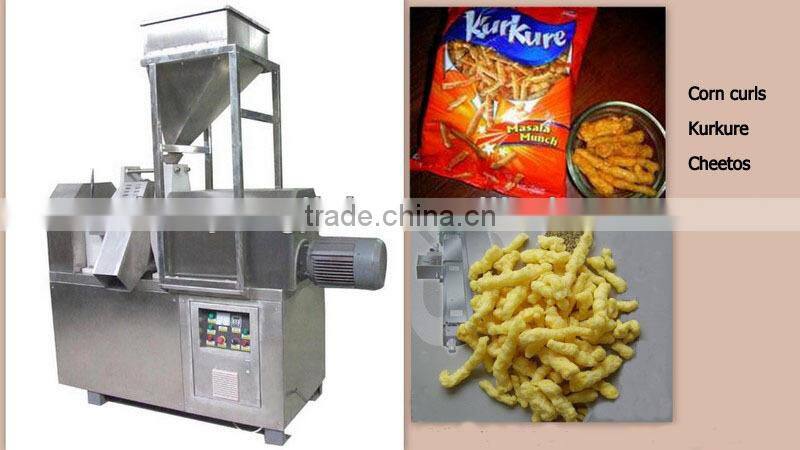

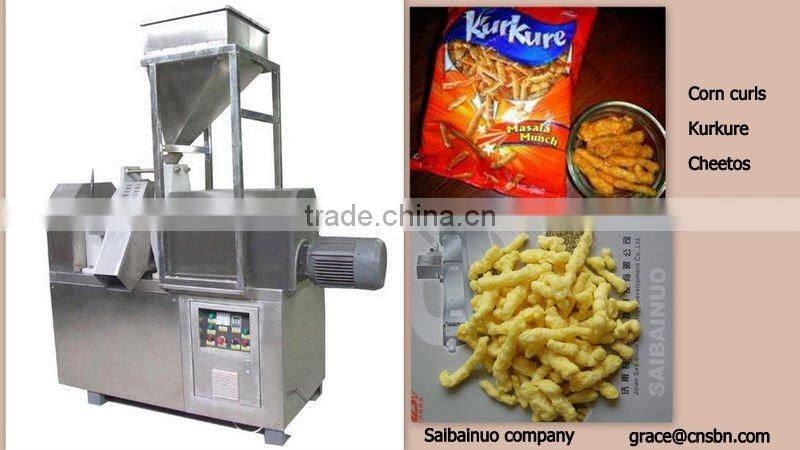

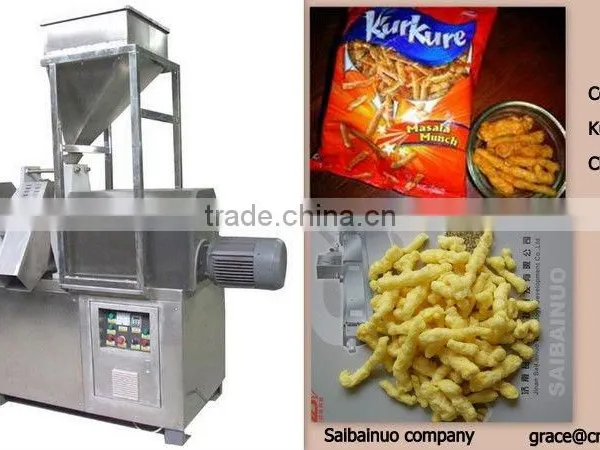

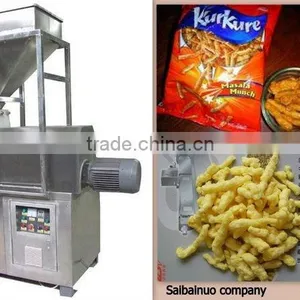

Kurkure processing assembly line
Introduction:
The line is a kind of extruded snacks, using corn grits as raw materials meanwhile mixing with water and oil,very crunchy and great in taste. Kurkure/Cheetos snack food is made by extrusion process. The snack food are moisturized in a vertical mixer with water, oil then feed to the Rotary Head Extruder. In the extruder, due to excess heat and pressure from the screws the meal gets heated and the moisture content gets reduced. The meal passes through the die and gets cut by the cutting knifes into required lengths. The kurkures/cheetos snacks food is fried in cooking oil and then cooled before flavoring. Seasonings are sprayed on the kurkures snack food to improve their taste.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
The production process flow
Mixer---Screw conveyor---extruder--Elevator---Cooling machine---Shaking machine---fryer---Automatic flavoring machine --cooling machine
The pictures:
The detailed information for Kurkures/cheetos,Nik naks snack food line
NO | Machine
| Motor Power
| Capacity
| dimension
| Quantity
| Function |
1 | Mixer | 4KW | 300kg/h | 0.8*0.7*1.5m | 1set | To mix the raw materials with the water |
2 | screw conveyor | 1.1KW |
| 3.0*0.8*2m | 1set | To send the materials to the extruder |
3 | Snack extrude machine | 30KW
| 100kg/h | 2.6*1.5*2.8 m | 1set | To extrude and inflate the food. |
4 | Elevator | 0.75KW | 100-150kg/h | 2.4*0.8*2m | 1 set | this conveyor just take the raw kurkure snacks to cooling machine |
5 | Cooling machine | 4KW | 200kg/h | 0.2*0.9*1.5m | 1set
| in order to cooling the hot kurkure snacks out of the extruder |
6 | Shaking machine | 4KW | 100-200kg/h | 1.3*0.6*0.65m | 1set | cooling and separate the stick kurkure snacks .and send them to frying machine |
7 | Flavoring machine | 12kw | 100-200kg/h | 2.2*0.65*1.85m | 1set | coating the flavoring powder on the kurkure snacks food surface after frying . |
8 | cooling machine | 1.2kw | According to the extruder | 6m length | 1set | To cool the Kurkure snack snack reduce the temperature before packing
|
TradeManager:cn1510969003 Skype:hongzhen.yang2 Mobile:+86 15562508596
