Fried flour snack food extruder
- 10 Set / Sets per Month
- Qingdao port
- T/T L/C D/P D/A
- mobile soft serve ice cream machine
- 2015 Commercial snack machine hot dog machine hot dog making machine on sale
- 2015 high quality popcorn machine A commercial popcorn and cotton candy machine
- 2015 high quality popcorn machine A industrial popcorn maker Aimee Liu
- delicious commercial popcorn making machine A high quality popcorn maker gas heating mode
- 2015 high quality popcorn machine A
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | chenyang |
Model Number: | CY85 | Application: | Chips | Voltage: | 380V 50HZ |
Power(W): | 22KW | Weight: | 1200KGS | Dimension(L*W*H): | 12*1.2*1.8M |
Certification: | CE ISO | Warranty: | 12Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Fried flour snack food extruder uses advanced extruding technology, through changing moulds and production technics to produce many kinds of popular snack food in the market. It has a agility scheme, strong adaptability, has gained good praise and agreement from public.
This process line uses double-screw extruding technique to replace the traditional steam boiling process,It includes mixing ,steaming,curing,extruding,and shaping processes,no boiler.with high efficiency and no pullution .The raw material can be the rice powder,corn powder ,wheat flour individually,or their mixture.Changing the moulds can make different shapes.The crispy rice chip has the best taste.
Introduction:
This line use wheat flour as the main raw material, first extruded, cured by the double screw extruder, then fried by the fryer, this line can produce the salad snack food with fashion shape, good and special taste, the tissue of the food fine and smooth, easily to absorb and is quite popular in the market.,and it can produce the snack food automatically.
Voltage:Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries
Extruded fried snack food Productions Flow-chart
The production process flow
Mix---Screw conveyor---Double-screw extruder----Conver cutting shaper---
Automatic fryer--Automatic flavoring line

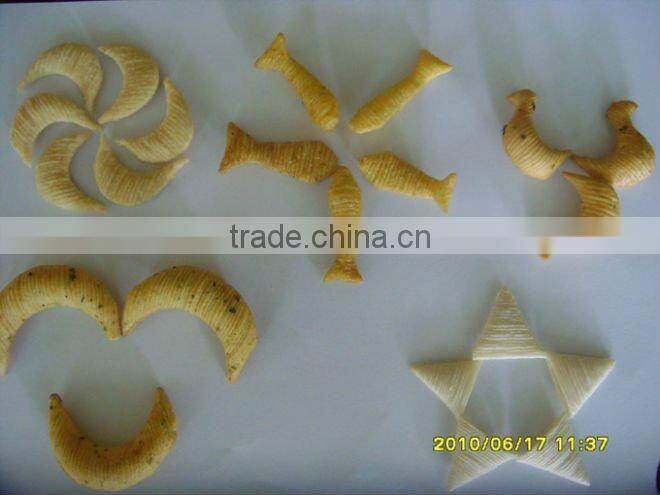

The fried snack processing line can produce the snack good of different shape by change the moulds:
Technical Parameter
Model | CY65-III Double-screw extruder line |
Installed capacity | 45 kw |
Power consumption | 30 kw |
Output | 120-150kg/h |
Size | 12000*1600*2300mm |
The detailed information for fried snack food production line
NO | Machine
| Motor Power
| Capacity
| dimension
| Quantity
| Function |
1 | Mixer | 4KW | 50kg/3-5min
| 800*700*1200mm | 1set | To mix the raw materials with the water |
2 | screw conveyor | 1.1KW |
| 3000*800*2000mm | 1set | To send the materials to the extruder |
3 | CY65-II Double screw extrude | 30KW
| 100-200kg/h | 2200*1200*3000mm | 1set | To extrude and inflate the food. |
4 | Conver cutting shaper
| 1.5KW | 150kg/h | 1000*800*1300mm | 1set | Can cut various shapes according to you |
5 | Automatic fryer
| 120KW | 150kg/h | 4500*1000*2000mm | 1 set
| Fry the snack food |
6 | Automatic flavoring line | 6.5KW | 100-200kg/h | 4000*700*2000mm | 1set | Have different delicious taste |
About installation and after-sale service system:
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the fried snack food processing line arrived your country, and we will send two engineers to go and help you to install the fried snack food line, teach your worker(3-4 workers) how to operate the fried snack food line, until your worker know the fried snack food line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the fried snack food and help customer to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
6. other item:
a). Free consultation service before, during, and after sales;
b). Free project planning and design services;
c). Free debugging of equipment until everything is functional;
d). Free management of equipments' long distance shipping;
e). Free training of equipment maintenance and operating personally;
f ). Free new production techniques and formulas;
g). Provide 1 year complete warrantee and life-time maintance service;
This Fried flour snack Food Processing Line Include these parts:
1 | Mixer |
2 | Double-screw inflating extruder |
3 | Core filler |
4 | Multi-function shaper |
5 | Large-hoister |
6 | Three-layer electrical roasting oven |
7 | Flavoring line |
Technical parameter: | ||||||||||||||||||||
|
