Fish feed extruder machine:
Main feature of the fish feed technology:

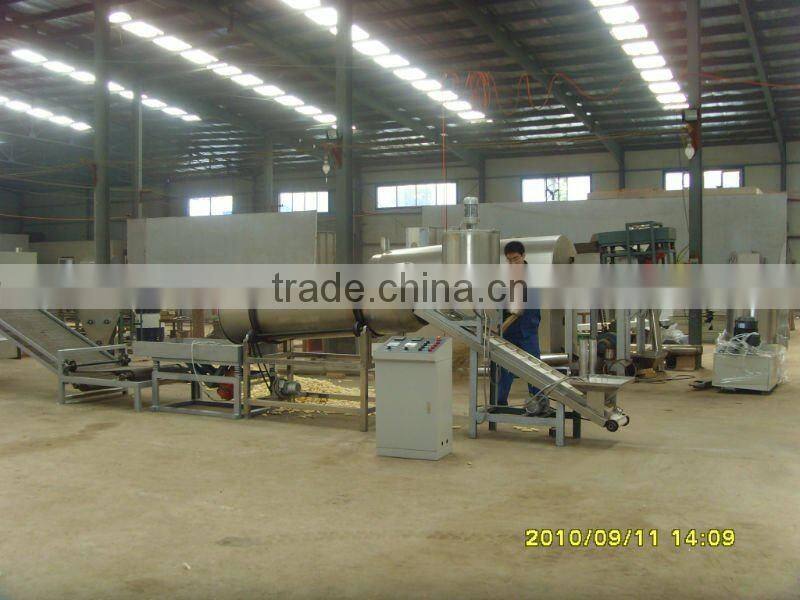

The pet food and protein food processing lines feature is as follows:Extruding and inflating technology is that it can supply us unimage processing measure, combine with market demand,pet food machinery produced by Chenyang Company, adopts particular process technics and equipment scheme, the final products with fashion shape, special taste, scientific nutrition combinative, easily to absorb and is quite popular to the pet market.
Portion food processing line use low temperature soya bean dregs, peanut dregs as raw material to produce protein food. Which is a new type of masticatory food taste like meat. It is widely used to ham. Sausage,Can, fast food and deepfreezed food
The detailed information
NO | Machine
| Motor Power
| Capacity
| dimension
| Quantity
| Function
|
1 | Milling machine | 7.5kw | 200-300kg/h | 3.0*1.2*3.5m | 1set | To mill corn into powder |
2 | Silo |
| 5 Ton/once | 1.8*5.3m |
| To save the corn powder |
3 | mixer | 4KW | 50kgs /once time | 0.8*0.7*1.5m | 1set | To mix the raw materals with the water |

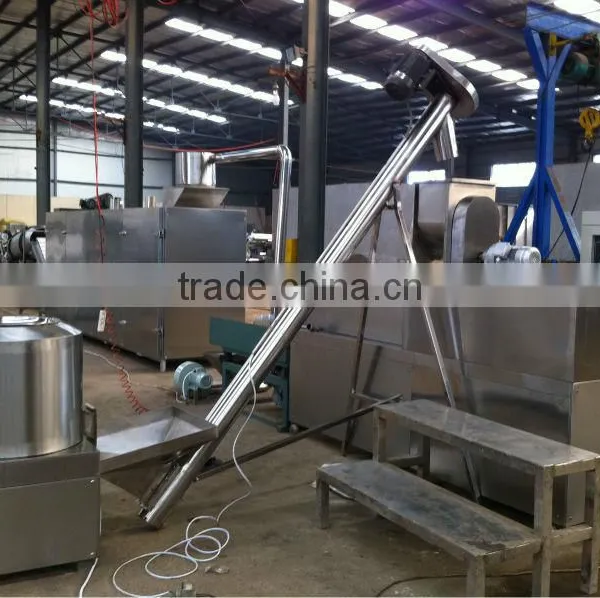

4 | screw conveyer
| 1.1KW | 150kg/h | 3*0.8*2m | 1set | To send the materials to the extruder |
5 | CY70-II Double screw extruder | 30KW
| 200-220kg/h | 2.8*1.0*1.8m | 1set | To extrude and inflate the food.the main machine of the line |
6 | Shifter
| 0.55kw | 150kg/h | 1.6*1.0*1.2m | 2set | To select good pet food, one shifter put after extruder, another shifter put after dryer. |
7 | Large hoister
| 0.37KW | 150kg/h | 4.1m height | 1set | To send the food into the dryer |
8 | 5layer 5meter dryer | 45kw | 180-300kg/h | 5.0*1.2*3.5M | 1set
| To dry the food
|
8 | Double roller flavoring system | 1.5kw | 150-200kg/h | 2.1*1.1*1.9m | 1set | To flavor the snack food with flavoring materials |
Technical Parameter:
Model: | CY65-VI double-screw inflating line | CY85-II double-screw inflating line |
Installed capacity: | 70 kw | 140 kw |
Power consumption: | 45 kw | 110 kw |
Ouput: | 120-150KG/H | 300-400KG/H |
Size: | 12×1.2×1.8 M | 13×1.2×1.8 M |
