breakfast cereal/corn flakes snack foos machine/ production line o

Specifications

1.high quality corn flakes food processing line
2.Advanced extruder
vide basic formula
fessional after-sale system

High Quality breakfast cereal/corn flakes snack production line/ machine





Raw materials

Kinds of cereals, such as: corn flour, rice flour, corn grits, millet and so on.

Capacity

120-150kg/h, 300-400kg/h

Machine material

All the machines are made by ss201,ss304,ss316.

Voltage

Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .

Process Flow

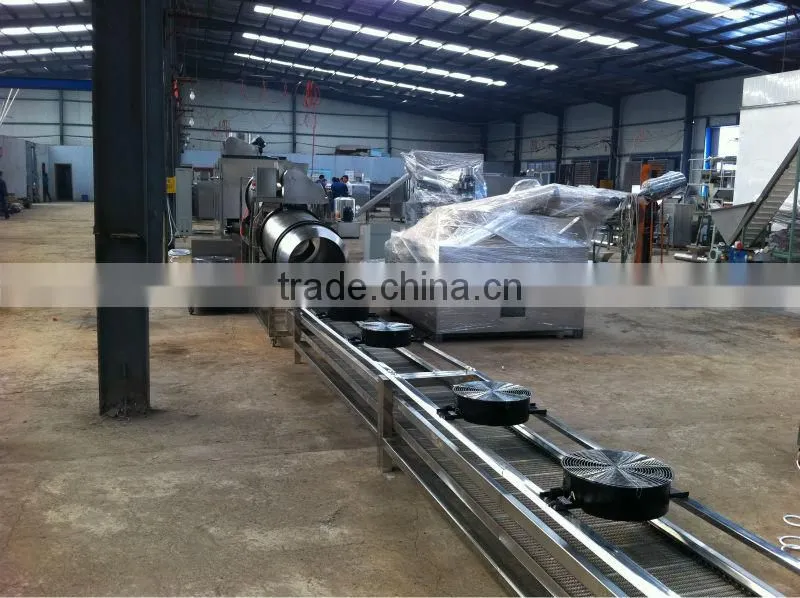

Mixer---extruder---vibrate cooler---air conveyr---rollers drying machine---flaking machine---air conveyor---roasting oven---high temperature oven---second vibrate cooler---sugar spayer--- multi-layer oven---cooling



Technical parameter of the corn flakes production line



Model	CY65-II Double-screw extruder line	CY85-II Double-screw extruder line
Installed capacity	100KW	180KW
Power consumption	70KW	140KW
Output	120-150kg/h	300-400kg/h
Size	28.0*1.2*2.0m	30.0*1.5*2.0m

Introduction of machine

	Machine	Motor Power	Capacity	Dimension	Quantity	Function
1	Mixer	4KW	50kgs /time	0.8*0.7*1.5m	1set	To mix  the raw  materals  with the  water
2	Screw conveyer	1.1KW	100-150kg/h	3.0*0.8*2m	1set	To send  the  materials  to the  extruder
3	CY65-III Double  screw extruder	30KW	120-150kg/h	4.0*1.2*3.0 m	1set	To extrude  and inflate  the food. the main  machine  of the line

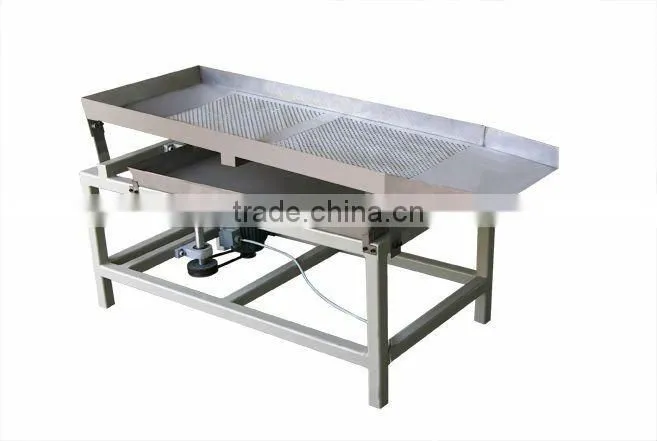

4	Shifter	0.55KW		2.0m length	3sets	To cool  and  sifting  the  corn  flakes.
5	Air conveyer	1.5KW		4.1m length	4set	To connect  two  machines
6	Single roller	0.37kw		2.1*0.7*1.6m	1set	to cool  the corn  flakes,  avoid  to stick  together
7.	The flaking machine	5.5kw	150kg/h	1.8*1.1*1.2m	1set	To flake  the  corn pellets  into corn  flakes
8	5layers 5meter oven		150-300kg/h	6.0*1.4*2.0m	1set	To dry  the corn flakes
9	High-temperature oven		100-150kg/h	3.0*1.5*1.5m	1set	To inflate  the  corn  flakes
10	Sugar coating drum	0.55kw	150kg/h	2.1*1.1*1.9m	1set	To flavor  the  corn  flakes
11	5layers 5meters  oven with hoister		150-300kg/h	9.0*1.4*2.0m	1set	To dry  the  corn  flakes
12	Cooling machine	1.2kw	150-300kg/h	6m lenth	1set	To cool  the  corn  flakes





About installation and after-sale service system:

1. We can provide factory layout according to customer’s factory size in advance.

2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the corn flakes processing line arrived your country, and we will send two engineers to go and help you to install the corn flakes line,

teach your worker  how to operate the corn flakes line, until your worker know the corn flakes line well.

3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.

4. Our engineers can provide basic formula for producing the corn flakes, breakfast cereals, snack food etc. and help customer to produce good quality food according customer’s detailed formula.

5. We provide the spare parts will at preferential price for an extended long time.

thank you,

Heather
