2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing Line

Jinan Chenyang Technology Co., Ltd.
2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing Line thumbnail-1
2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing Line photo-1
US$ 2,000 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
CY
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qing Dao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name CY
Model Number CY
Application Other, snack food
Voltage 380V/50HZ
Power(W) according to different models
Weight 1200kg according to different models
Dimension(L*W*H) 23*1.2*0.6m
Certification CE ISO
Warranty 1YEAR
After-sales Service Provided Engineers available to service machinery overseas

Specifications

corn flake making machine
1high automation,convenient operation,low energy and small floor space
2 longer using life

2014 new Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing line



The detailed information

Raw materials

Kinds of cereals, such as: corn flour, rice flour, corn grits, millet and so on.

Capacity

120-150kg/h, 300-400kg/h

Machine material

All the machines are made by Stainless steel 201,If you have special requirement, we also have ss304,ss316.

Voltage

Chinese Input Voltage is 380V/ 50Hz /3, If it is different from yours , we will adjust it .

Process Flow

Mixer---extruder---vibrate cooler---air conveyor---rollers drying machine---flaking machine---air conveyor---roasting oven---high temperature oven---second vibrate cooler---sugar sprayer--- multi-layer oven---cooling

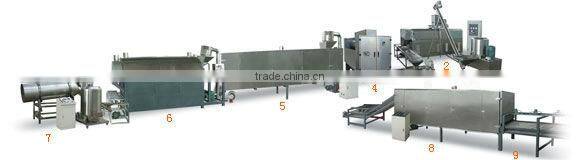

The pictures :







 2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing line



 2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing line

2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing line



Technical parameter of the corn flakes production line

Model

CY65-II Double-screw extruder line

CY85-II Double-screw extruder line

Installed capacity

100KW

180KW

Power consumption

70KW

140KW

Output

120-150kg/h

300-400kg/h

Size

28.0*1.2*2.0m

30.0*1.5*2.0m



Introduction of machine

NO

Machine

Motor Power

Capacity

Dimension

Quantity

Function

1

Mixer

4KW

50kgs /once time

0.8*0.7*1.5m

1set

To mix the raw materials with the water

2

Screw conveyor

1.1KW

100-150kg/h

3.0*0.8*2m

1set

To send the materials to the extruder

3

CY65-III Double screw extruder

30KW



120-150kg/h

4.0*1.2*3.0 m

1set

To extrude and inflate the food.the main machine of the line

4

Shifter

0.55KW



2.0m length

3sets

To cool and sifting the corn flakes.

5

Air conveyor

1.5KW



4.1m length

4set





To connect two machines





6

Single roller

0.37kw



2.1*0.7*1.6m

1set

to cool the corn flakes, avoid to stick together

7.

The flaking machine



5.5kw

150kg/h

1.8*1.1*1.2m

1set

To flake the corn pellets into corn flakes

8

5layers 5meter oven



150-300kg/h

6.0*1.4*2.0m

1set

To dry the corn flakes

9

High-temperature oven



100-150kg/h

3.0*1.5*1.5m

1set

To inflate the corn flakes

10

Sugar coating drum

0.55kw

150kg/h

2.1*1.1*1.9m

1set

To flavor the corn flakes

11

5layers 5meters oven with hoister



150-300kg/h

9.0*1.4*2.0m

1set

To dry the corn flakes

12

Cooling machine

1.2kw

150-300kg/h

6m length

1set

To cool the corn flakes



About installation and after-sale service system:

1. We can provide factory layout according to customer’s factory size in advance.

2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the corn flakes processing line arrived your country,

and we will send two engineers to go and help you to install the corn flakes line, teach your worker(3-4 workers) how to operate the corn flakes line, until your worker know the corn flakes line well.

3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.

4. Our engineers can provide basic formula for producing the corn flakes, breakfast cereals, snack food etc. and help customer to produce good quality food according customer’s detailed formula.

5. We provide the spare parts will at preferential price for an extended long time.

6. other item:

a). Free consultation service before, during, and after sales;

b). Free project planning and design services;

c). Free debugging of equipment until everything is functional;

d). Free management of equipments' long distance shipping;

e). Free training of equipment maintenance and operating personally;

f ). Free new production techniques and formulas;

g). Provide 1 year complete warrantee and life-time maintance service;



2014 New Full Automatic Breakfast Cereal&Corn Flakes Making Machine/processing line
