Specifications
Corn Cheese Balls Making Machine1.supply basic formula and technology support
2.CE,ISO
3.fix all life
Made In China Corn Cheese Balls Making Machine can produce various shapes sanck food with different jam centers, like : butter/cream/chocolate are okay.
Sweet corn puff food machine :1. Mixer---Screw conveyer---Double-screw extruder---Corn filler---Multi-function shaper---Large-hoister---Three-layer electrical roasting oven--Automatic flavoring line
2. The output is 100-120kg/h The power is 55kw The size is 18000*800*1600mm
3. The processing flow chart: Mixer---Extruding to make the shape---Fill in core center---Shaping and Cutting---Conveyer---Heating---Flavoring---Cooling---Packing
Technical Parameter:
Name |
Processing Line |
Output (kg/h) |
Power (kw) |
Size (mm) |
Snack food |
1.Mixer 2.Double-screw extruder 3.Air conveyer 4.Roasting oven 5.Flavoring line |
100-120 |
53 |
15000*800*1600 |
Jam Center food |
1.Mixer 2.Double-screw extruder 3.Multi-function cutting shaper 4.Core filler 5.Large-hoister 6.Roasting oven 7.Flavoring line |
100-120 |
55 |
18000*800*1600 |
Details:
1 |
Mixer |
Power:4kw Output: 50kg/3-5min Size:1000*900*1200mm To touch the food is SS. To mix the raw materials such as corn flour with some additives.
|
2. |
Screw conveyer |
Power: 1.1kw Size: 3000*800*2000mm Usage: can convey food not only on the level but also by any angle, materials can be conveyed without leaking, dust pollution. |
3 |
Double-screw extruder (CY65) |
Installed power: 35kw Consumotion:28kw Main power: 22kw Output: 120-150kg/h Size: 2500*1000*1800mm
|
4 |

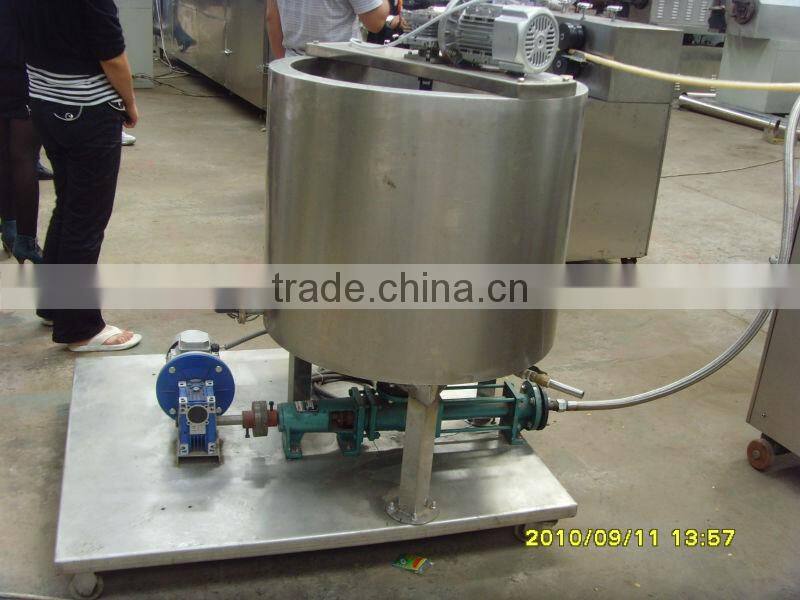

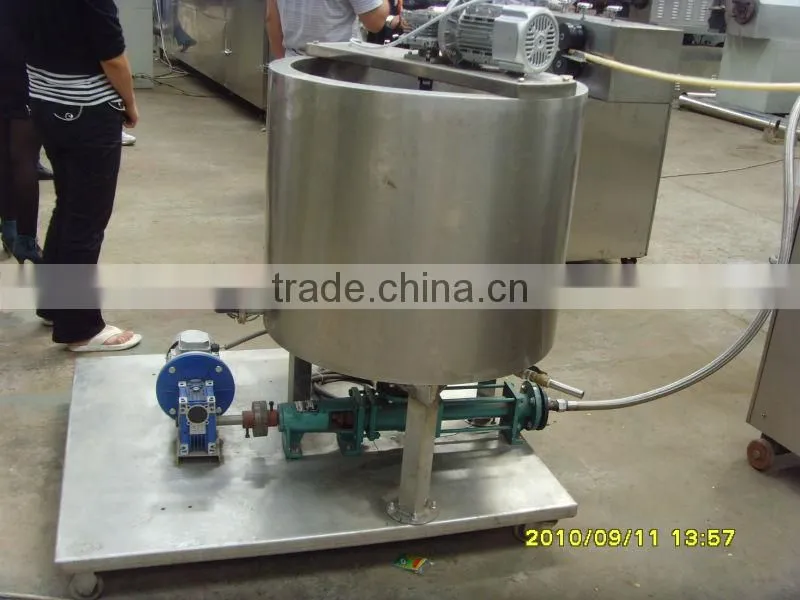

Core filler |
Power: 3.5kw Size: 800*600*1800mm Usage:
|
5 |

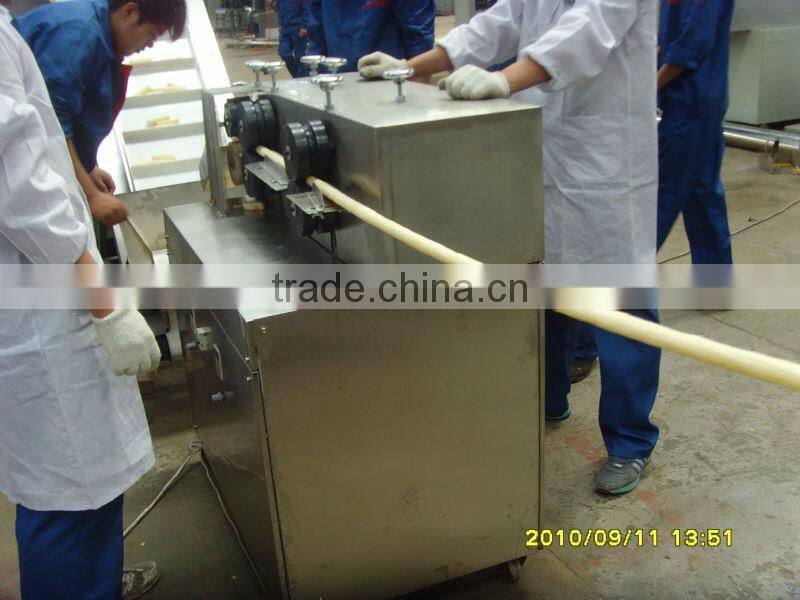

Multi-function cutting shaper |
Power: 2kw Size: 1100*800*1300mm Usage: make sure the appearance of products more smoothly, the length and width can be adjusted |
6 |
Large-hoister |
Power:0.55kw Size:2200*500*2200mm Usage: to convey food to another machine, |
7 |
Five-layer Roasting oven |
Consumption: 37.5kw/h Output:200-400kg/h Size:5000*1200*1700mm Heating temperature: 0~200 degree The temperature and speed can adjust according to your need.
|
7 |
Automatic Flavoring line |
Weight of spraying oil:60-80kg/h Heating power:2kw Power of flavoring machine:0.18kw Whole power: 4.5kw Size:4000*700*2000mm |
The samples:
About installation and after-sale service system:
1. We can provide factory layout according to customer’s factory size in advance.
2. When we received your deposit of this order, we will ask our engineers to prepare to apply the visa, when the processing line arrived your country, and we will send two engineers to go and help you to install the line, teach your worker(3-4 workers) how to operate the line, until your worker know the line well.
3. Our engineers has responsibility to teach your worker how to clean the extruder, how to change the screw, how to change barrel etc. and we have responsibility to provide technology support with you forever.
4. Our engineers can provide basic formula for producing the core filling food and help customer to produce good quality food according customer’s detailed formula.
5. We provide the spare parts will at preferential price for an extended long time.
6. other item:
a). Free consultation service before, during, and after sales;
b). Free project planning and design services;
c). Free debugging of equipment until everything is functional;
d). Free management of equipments' long distance shipping;
e). Free training of equipment maintenance and operating personally;
f ). Free new production techniques and formulas;
g). Provide 1 year complete warrantee and life-time maintance service;

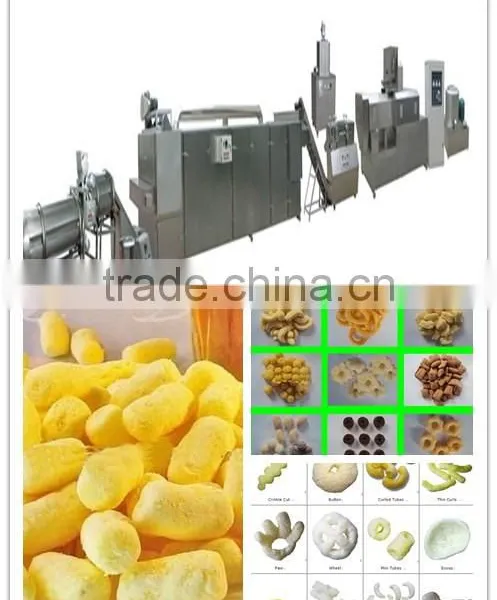

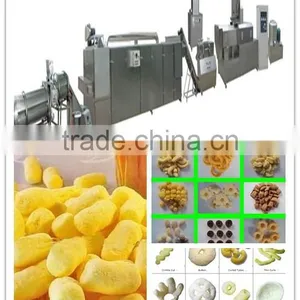

The core filling snack food equipment show:
skype:sherry1017929
Mobile phone:+86-15053181065 or +86-15553158922
