Corn Powder Snack Extruder
Snack Food Machinery
1.adopt frequency speed-controlling with high automation and stable per-formation
2.Automatic lubricating cooling , to guarantee the extruder running safely
3.Bear grinding steady and reliable longer using life
1. Introduction
Inflating|Puffed Snacks System is a new type of extruding food processing line designed and developed by ourselves on the basis of learning from advanced technology in the world so that its technical performance and quality of products both reach to the most advanced in the world. This line will finish mixing, extruding, cutting, spraying and producing in one-pass operation automatically. This line features lots of types, flexible collocation, extensive applied materials, various products and easy operation.
2. Raw Material
Corn flour,wheat flour, rice flour, oat meal, other grain meals
3. Flow Chart
Our company has rich experiences in this fiel. We are able to supply turnkey project including grinding system for raw material, production machines for cereal, packing system for final products, even other lab testing equipments, etc.
Flour Mixing – Extrusion – Drying – Flavoring – Packing
Detailed information for CY65-II extruder
Double screw extruder mainly contains :feeding systems, extruding systes, cutting systems, heating systems, gearing systems, lubricating system, control system.
Main features:
A:Extruding systems: the screw with high wear-resistant performance by using alloys steel materials(38ARMOAL), screw is made by special technique, is able to bear grinding, steady and reliable, longer using life. according to different screw design rate to full different technology request.
B:Cutting system:the cutting system adopt center cutting, high exactly to make sure that the cutting knife keep a parallel place with the cyclostyle avoid the wear and tear, the head of the cutting knife like a spring ,so that the symmetrical pressure make the cutting very easy ,and cutting the product size look more perfect. especially avoid the metal powder go into the products.
C:Heating system: use the far infrared heating manner, circulate water for cooling, to guarantee the extruder running safely.
D:Gearing system: the main motor, feeding ,cutting, liquid feeding system of the extruder all use the frequency to control the speed ,the frequency we use is : DELTA, the gear we use hard gear, enough strong, running placidity and low noise.
E:Lubricating system: have single oil box circle system,and have a inspect equipment for the press meter.
F:Controlling system: consists of feeding system, extruding system and cutting system adopts frequency speed-controlling with high automation and stable per-formation.
G:Feeding system: according to different materials, to choose the relative single or double screw feeding system, the materials should be uniformity and stable.
H:Cooling system: we add the cooling system on each zone,it can control the temperature well.

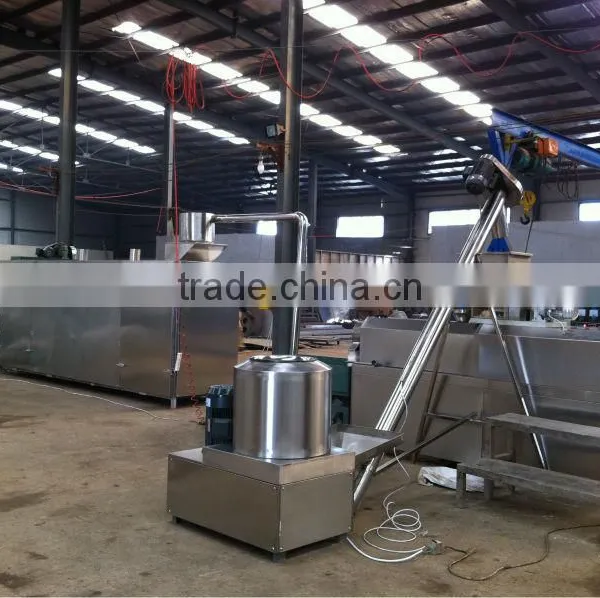

CY65-II extruder for puffed snack food production line
| Model | CY65-II double screw extruder |
| main motor | 22 kw |
| cutting motor | 0.37 kw |
| feeding motor | 0.75 kw |
| oil control motor | 0.75 kw |
| capacity | 120-150 kg/h |
| size | 3.0*1.0*1.8 m |
| screw diameter | 60 mm |
| screw length | 1050 mm |
| barrel/Screw materials | 38CrMoAl |
| The barrel and screw HRC(High-Rupturing capacity) | 60 |
