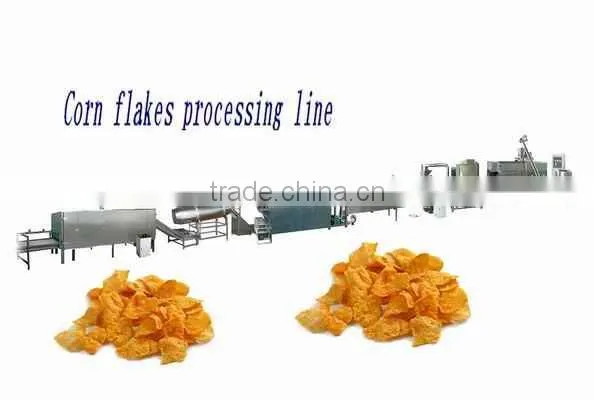

corn flakes/breakfast cereals processing line
Main features
- Corn flakes breakfast processing is developed by the international advanced extruder technology.
- The technology performance and quality can reach to the international advanced level.
- Breakfast cereals use cereals such as corn as main raw material. we can product it by extruding(or boiling), planishing, drying, roasting, coating and cooling, and we can get many shapes such as ring, grain or flakes shape after extruding and inflating. This kind of food can be mixed with coffee or milk.
- Of course, it can be eaten directly as snacks, taste good as well.
The Production Process Flow
Mixer---extruder---vibrate cooler---rollers drying machine---flaking, air conveyor and rosting---high temperature inflate---second vibrate cooler---sugar spayer---multi-layer oven---cooling--packing
Composing part of corn flakes/breakfast cereals processing line
NO. |
EQUIPMENT |
QUAN -TITY |
TECHNICAL PARAMETER |
IMAGE |
FUNCTION |
1 |
Mixer |
1 |
Power:4kw Output:50kg/tube Size:0.8*0.7*1.2m |
|
To mix the raw materals with the water
|
2 |
Screw conveyer |
1 |
Power:1.1kw Output:100-500kg/h Size: 0.2*0.8*3.0m |
|
To send the materials to the extruder, |
3 |
Double-screw extruder CY65-II |
1 |
Power:35kw
Length-diameter ratio: 1050*65 Output:120-150kg/h Size: 2.5*1.0*1.8m |
|
To extrude and inflate the food.the main machine of the line |
4 |
Vibrate cooler |
2 |
Power:0.75kw Output:100-500kg/h Size: 2.5*1.5*0.8m |
|
To cool the food
|
5 |
Rollers drying machine |
1 |
Power:0.75kw Output:100-500kg/h Size: 3.5*1.25*1.6m |
|
To dry the food
|
6 |
Air conveyer |
2 |
Power:0.75kw Output:100-500kg/h Size: 2.5*0.6*2.0m |
|
To send the food to the next machine
|
7 |
Flaking machine |
1 |
Power:7.5kw Output:100-500kg/h Size: 2.5*1.2*2.2m |
|
To flake the food to flakey
|
8 |
Roasting oven (3layer/5m electrical) |
2 |
Power:27.5kw Output:100-150kg/h Size: 5*1.3*2.0m |
|
To dry the food
|
9 |
High-temperature inflated oven |
1 |
Power:36kw Output: 100-150kg/h Size:5.0*1.0*2.8m |
|
To puff the food
|
10 |
Sugar sprayer |
1 |
Power:13kw Output: 120-300kg/h Size:3.5*1.5*1.5m |
|
To spray the sugar to the food
|
11 |
Cooling machine |
1 |
Power:3kw Output:100-150kg/h Size: 6.0*0.6*1.0m |
|
To cool the food |
The Processing Line Technical parameter
| Model |
CY65-II Double-screw extruder line |
CY85-II Double-screw extruder line |
| Installed capacity | 100KW | 180KW |
| Power consumption | 70KW | 140KW |
| Output | 120-150kg/h | 300-400kg/h |
| Size | 28.0*1.2*2.0m | 30.0*1.5*2.0m |
