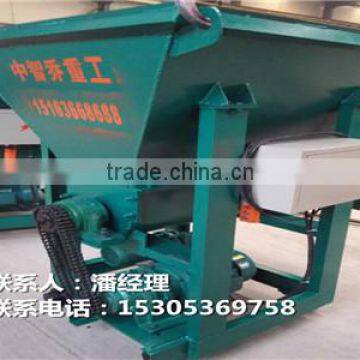

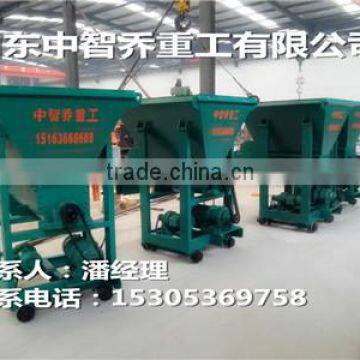

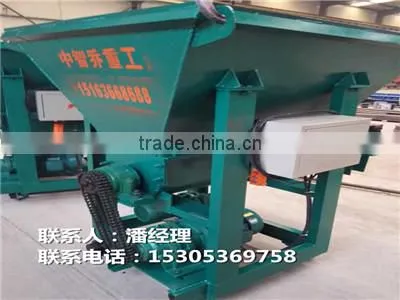

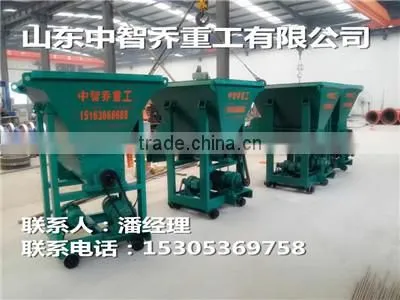

the Introduce of Suspension Roller Feeding Machine
Suspension Roller Feeding Machine is automatic feeding equipment for hanging roller cement pipe production line . Consist of the walking device, conveyor belt, electrical control etc. The running device adopts the groove track to avoid the scattered blocks, and the transmission device adopts the chain transmission to avoid the wheel slip. Belt feeding machine should be in the cement pipe die within the whole range of reciprocating retreat, stable moving, driving speed as slow as possible. For the convenience of adjusting the feeding amount, the feeding machine should be accompanied by the control valve of concrete material flow, in order to maintain the continuous uniform
Requirements of concrete raw materials for cement production
1. Cement
For the cement ,Portland cement, ordinary portland cement or slag Portland cement should be used. Also, the sulfate resistance Portland cement, rapid hardening sulphoaluminate cement. The performance of cement shall be in accordance with the provisions of GB 175, GB 748 and GB 20472. The centrifugal process should not be used in Portland cement.
Jacking construction with reinforced concrete drainage pipe cement strength grade should not be less than 42.5.
2. aggregate
Fine aggregate
Fine aggregate should be used for the coarse sand fineness modulus 3.3 ~ 2.3 of the hard, the performance shall be in accordance with the provisions of GB/T 14684. When the sand production of reinforced concrete drainage pipe, the chloride content (NaCI) should not be greater than 0.06%, and should the desalination. Fine aggregate should not be mixed with frozen in winter freezing area.
Coarse aggregate
Coarse aggregate can be used as gravel , its performance should be in accordance with the provisions of GB/T 14685. The maximum size of the coarse aggregate, for the concrete pipe should be no more than 1/2 of the wall thickness of the pipe. For reinforced concrete pipe should not be greater than the thickness of the pipe wall 1/3, and should not be greater than the ring to the net distance of the 3/4.When using the suspension roller and extrusion process, it is appropriate to select the gravel with a slightly smaller particle size.
Into the plant's coarse, fine aggregate should be stacked on the hard floor, should not be mixed with weeds, leaves, etc.
3. water
Concrete mix water should comply with the provisions of JGJ 63.
1.centrifugal spinning machine( includes motor, electric control cabinet )
ncrete spun pole steel mold
ncrete pole steam boiler
4.automatic concrete feeding machine
5.prestressed tensioning machine
6.button head machine
ding machine
8.steel bar coiling machine
9.spot welding machine
10.pulling head and plate
11.pole shifting trolley
12.hanging rod
13.gantry crane
14.bridge crane
15.steel wire straightening and cutting machine
ncrete mixing system
Packaging: standard sea worthy packing
Shipping: standard export container
Shandong CICQ Heavy Industry Co.,LTD is a leading manufacturer , producing prestressed concrete pole equipment, concrete electric pole production line equipment, drainage pipe production line equipment. And passed ISO9001:2008 quality management system. The company has many years of manufactering experience, the products sell well all over the world.
In order to provide the best service to our customers ,we will have the following service commitments : According to the requirements of customers , we will help them to choose the suitable equipments, provide the complete high-performance products production lines as well as equipment debugging and installation. Any questions what the customers may have , we will answer and help to solve it timely.
Q: What's the main advantage of the concrete electric pipe making machine ?
A: Formed by pressing, built and conveyed in sections, the mould of prestressed and nonbprestressed concrete pipes have the advantages of high strengh, good rigidity, long service life as well as being easy in transportation,quick in assembling and simple in maintainance.
