Concrete Cement Pipe Mould/hume pipes moulds/drainage pipe moulds
2.Made of 45 steel
3.Good resistance.
4.Durable
1. Introduction of Concrete Pipe Mould
2. Features of Concrete Pipe Mould
2.1 The adoption of integrated design is reinforced design of leakproof slurry, no rough edges on which the mouth of pipe joints, easy mold-opening.
2.2 The friction rings in the molds are all made of 45 cast steel.
2.3 The steel plate we use is produced by Laigang which is one of the four major steel mills, and its abrasion resistance will be guaranteed.
2.4 The carbon-dioxide arc welding is applied into the all welding. The plasma cutting machine is used for cutting. Welding seam is smooth and nice, and the cutting seam is very exquisite. All above ensure the mold tough and durable and extend the service life greatly.
3. Technical Parameter of Prestressed Spun Concrete Pipe Moulds
| Mold Diameter(mm) | Cylinder Thickness | Hooped, Longitudinal Reinforcement |
| 300~600 | 6mm | 8mm×60mm |
| 800~1000 | 8mm | 10mm×80mm |
| 1200~1500 | 10mm | 12mm×120mm |
| 1500~2000 | 10mm | 14mm×150mm |
located in the famous Haight Kyushu, one of the ancient historical and cutural city-Qingzhou city, with convenient transportation.
Founded in 2006, we are a professional manufacturer engaged in concrete poles/pipes making machine design, manufacture, installation and matainance. And in 2010 invest 80 million RMB to build a new plant., now the company covers an areaof 148 acres, with 140million yuan fixed assets. employee 302 people,.
Four large standard modern workshop equip with superior production equipment, complete testing equipment, more than 140 sets mordern equipement effectively gurantee the performance and quality.
we can supply the whole sets of concrete poles/pipes making equipments.

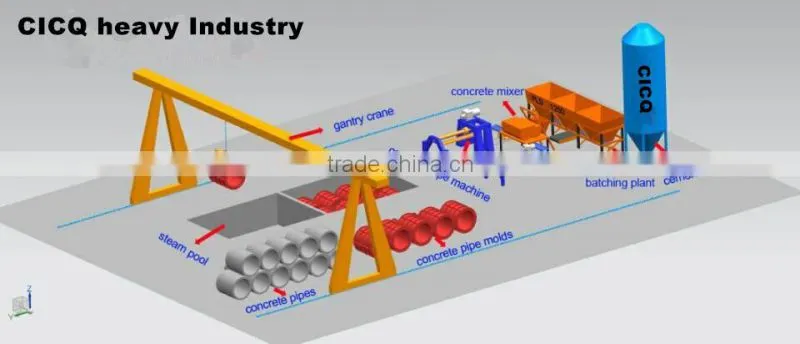

Concrete Pipes product line wiht complete set of equipment:
1. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
2. Concrete Batchers;
3. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
4.Electiric pole making mould (8M-18M, round/square)
5.Well pipes and drain pipes making mould(2m,4m,8m)

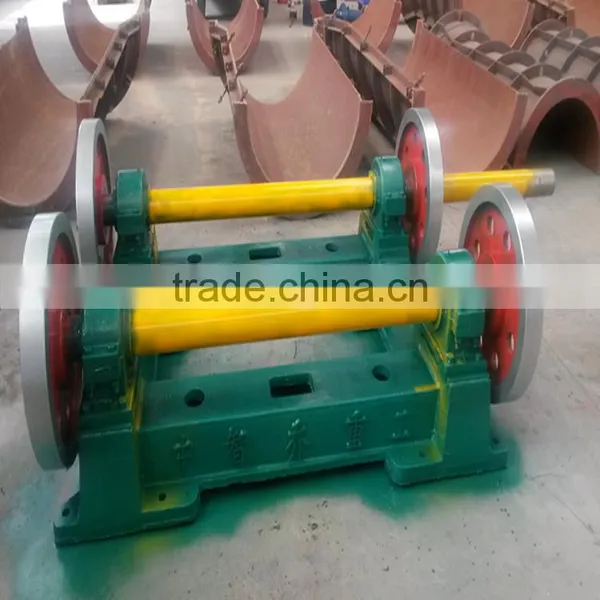

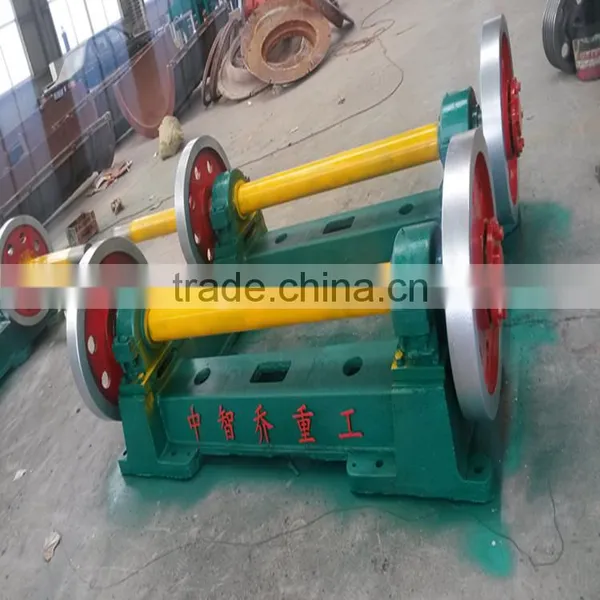

6.Suspension cement pipe making machine
7. Centrifugal machine
8. Vertical extrusion molding machine
9 Reinforcement cage seam welder
10.Boiler
11.Feeding machine
1. Provide complete production line supporting machines with high performance and good quality;
2. Provide reasonable design of plant,office, warehouse etc and related drawings according to customers' requirements.
3. Provide all machines layout plan in production plant and responsible for the layout of machines.
4. Responsible for all Installation and commissioning of all machines as well as the workers production training.
5. Promise to supply required wearing parts of machines as per requirements of customers timely with favorable prices within 2 years.
