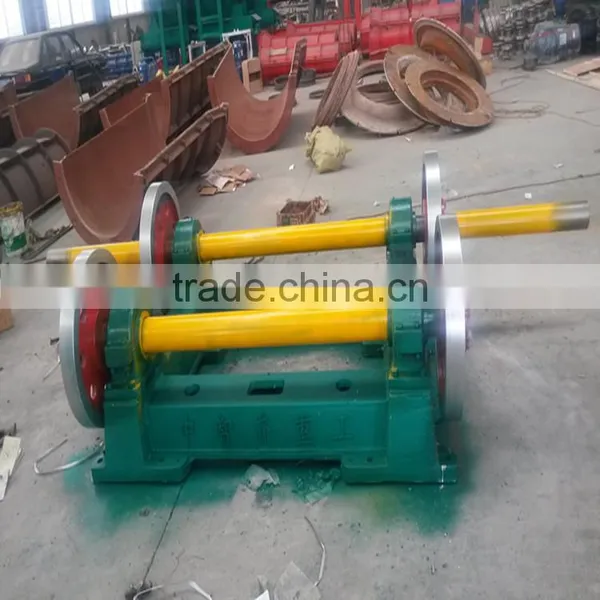

Reinforced Electric Concrete Pole Making Machine
1. Overview
1. Supply complete production equipment such as tensioning machine, winding machine, button head machine, straightening machine, boiler, concrete mixer, cranes and other accessories.
2. Spinning time: 10-15min for one pole (low speed--medium speed--high speed)
3. Pole machine wheel span: 2m/unit
4. Curing time or natural drying: 4 hours (durable, anti-crack)
5. We provide installation, commissioning, trainning, and log life mold maintenance
2. Parameter
| Pole Mold Diameter (mm) | Spinning wheel pitch(mm) | Running wheel diameter (mm) | Mold Length (m) |
| 150 | 2000 | 600 | 7-12 |
| 170 | 2000 | 600 | 7-12 |
| 190 | 2000 | 650 | 7-15 |
| 230 | 2000 | 650 | 6-9 |
| 300 equal diameter | 2000 | 600 | 6-9 |
| 350 equal diameter | 2000 | 650 | 6-12 |
| 30 | 2000 | 650-780 | 6-15 |
The production efficiency is determined by mould turnover.
Each mold could produce 2 poles per day
Technical Parameter and Price of Prestressed Spun Concrete Pole Moulds | |||||||
NO |
L |
W |
Dt |
Db |
t |
Ø |
@ |
1 |
Pole Length |
Weight |
Upper Dia |
Bottom Dia |
Pole Thickness |
Bar Thickness |
Bar Number |
|
(M) |
(KG) |
(CM) |
(CM) |
(cm) |
(mm) |
(PCS) |
|
7 |
1470 |
15 |
24.3 |
5 |
4.8 |
8 |
2 |
8 |
1680 |
15 |
25.6 |
|
|
9 |
3 |
9 |
1890 |
15 |
27 |
|
|
9 |
4 |
10 |
2300 |
19 |
32.3 |
|
|
12 |
5 |
11 |
2530 |
19 |
33.6 |
|
|
12 |
6 |
12 |
2760 |
19 |
35 |
|
|
13 |
7 |
13 |
2990 |
19 |
36.3 |
|
|
14 |
8 |
14 |
3220 |
19 |
37.6 |
|
|
15 |
9 |
15 |
3450 |
19 |
39 |
|
|
15 |
1. we help you to design the plant
2. we help you to debug the machine
3. we help you to trian the worker
4. we will not back until pole sucessfully be produced
