Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation

Weifang Xiandai Plastics & Rubbers Co., Ltd.
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-1
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-2
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-3
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-4
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-5
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation thumbnail-6
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-1
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-2

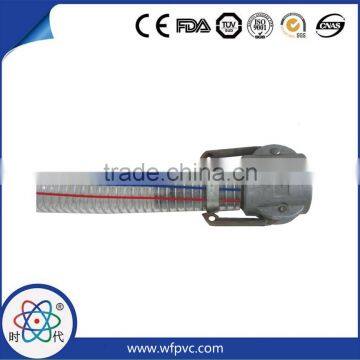

Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-3
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-4

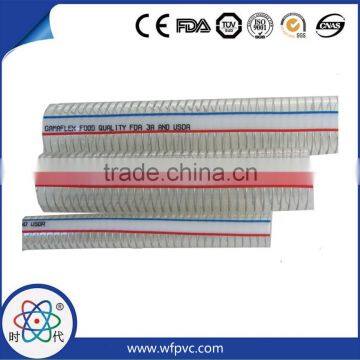

Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-5
Sprial Steel Wire Reinforced Water Conveying PVC Hose Reel Irrigation photo-6
US$ 1.5 - 2.5 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Shidai
Model Number:
Pvc Pipe
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Shidai
Model Number Pvc Pipe
Material PVC
Specification 5/16" to 8" Or As Client's Request, Diameter:8mm-200mm
Length 50m, 100m or customerized
Thickness 2.5mm-10mm
Standard FDA
Product Description

Product Application

Applications:
The hose is widely used for drawing and conveying water, oil and powder in factories, agriculture, engineering, foodstuffs and sanitation lines.

Characteristics:

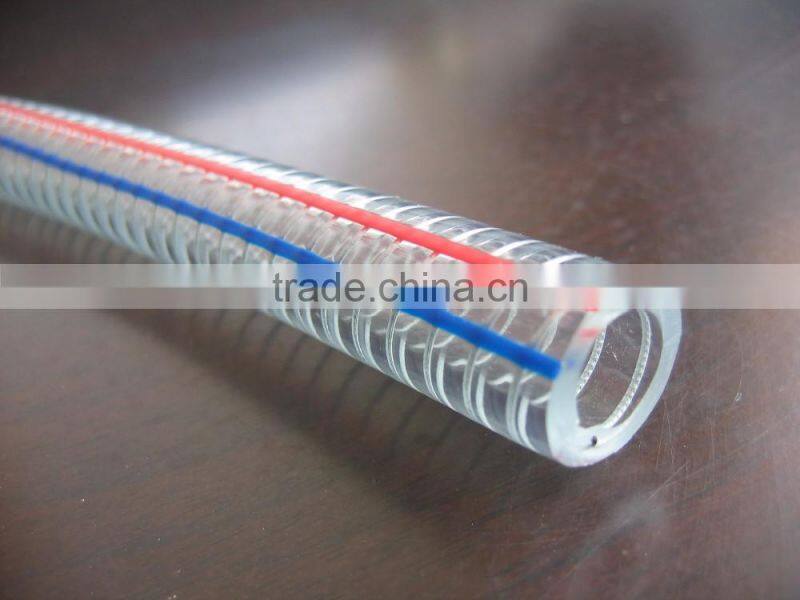

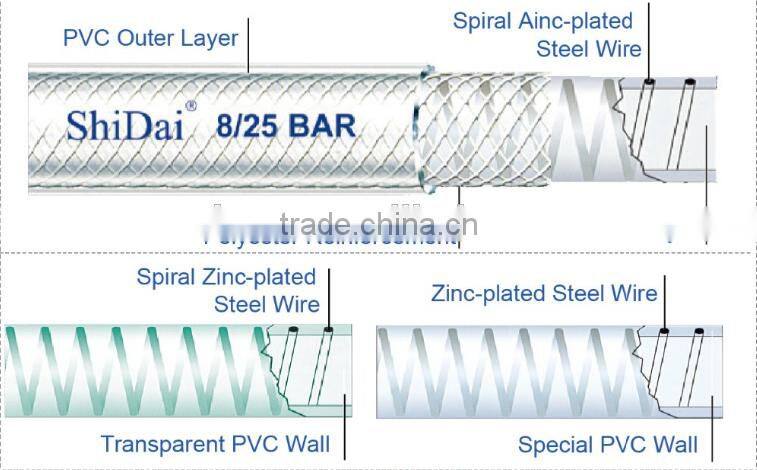

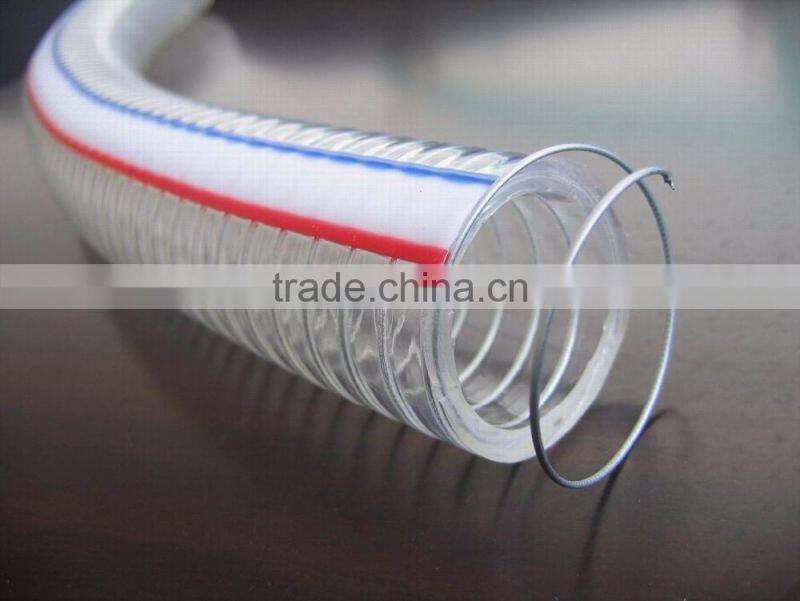

This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending radius. It has good adaptability to hard weather conditions and minus pressure.
With colorful symbol lines on the surface of the hose, it can be more beautiful.

Working temperature:
5℃~65℃

Specification of PVC Steel Wire Reinforced Hose I

Item No.

 Inch

           Metric Measurement
               mm

  W.P

 B.P MPa

 Weight
Kg/roll

Volume
Inner Diameter
Outer Diameter
Length
M/roll
MPa
At 23℃
At 60℃
GZ-8×2.5
5/16
8
13



  100
-0.1~1.1
3.3
1.6
12.4
0.032
GZ-9×3
3/8
9
15
3.3
1.5
18
0.041
GZ-12×3
1/2
12
18

-0.1~1.0
3.0
1.5
22
0.052
GZ-15×3.5
5/8
15
22
3.0
1.3
31
0.083
GZ-19×3.5
3/4
19
26

    50
-0.1~1.0
3.0
1.2
19
0.06
GZ-25×4
1
25
33

-0.1~0.7
2.5
1.0
27.5
0.10
GZ-32×4.5
1-1/4
32
41



    40
2.0
0.9
31.6
0.141
GZ-38×5
1-1/2
38
48

-0.1~0.6
1.8
0.8
40.5
0.164
GZ-45×5.5
1-3/4
45
56
1.7
0.7
53.5
0.21
GZ-48×5.5
1-7/8
48
59



-0.1~0.5
1.6
0.7
56
0.243
GZ-50×6
2
50
62
1.6
0.7
63
0.30
GZ-60×7
2-3/8
60
74
    30
1.5
0.5
67
0.308
GZ-63×8.5
2-1/2
63
80






   20
1.5
0.5
57.5
0.24
GZ-75×8.5
3
75
92

-0.1~0.4
1.3
0.5
66.8
0.291
GZ-90×9
3-1/2
90
108
1.2
0.5
84
0.532
GZ-100×9
4
100
118


-0.1~0.3
1.0
0.5
93
0.476
GZ-127×8
5
127
143
1.0
0.5
102
0.88
GZ-152×8
6
152
168
1.0
0.5
121
0.982
GZ-200×10
8
200
220
1.0
0.5
220
2.083

Product Details:

1.Small bending radius, higher service life.

2.Good adaptablity to hard weather.

3.Strict drinking water level testing system.

4.High adaption at both high pressure and minius pressure.

5.With copper wire inserted, to avoid block by static.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Company iformation

Certifications

Our Service

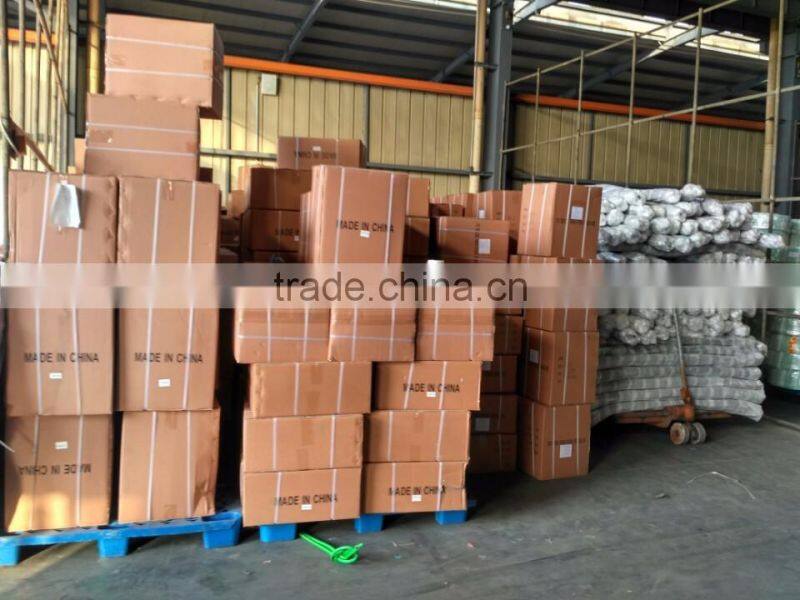

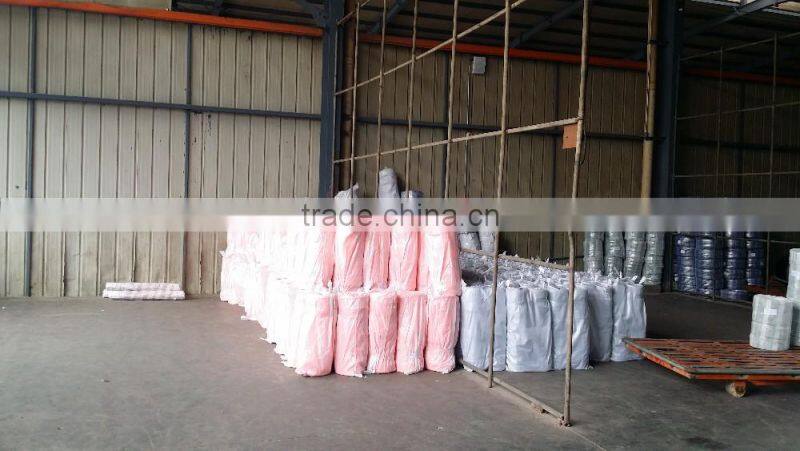

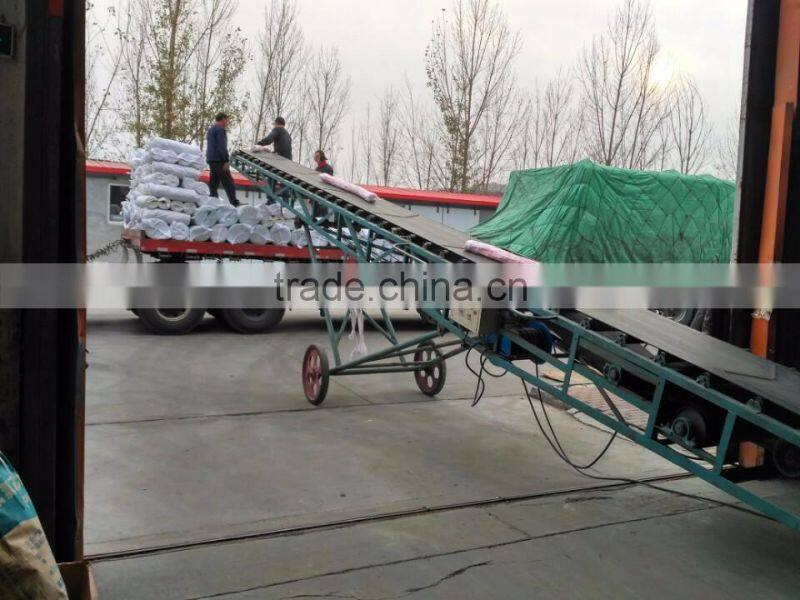

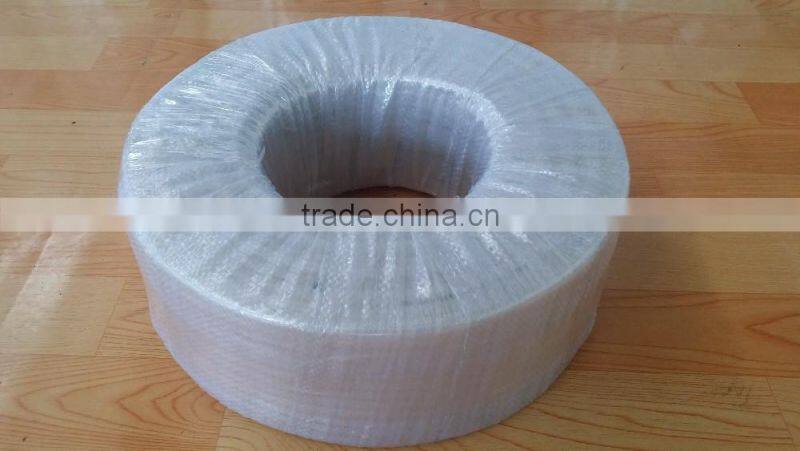

Packing & Delivery
FAQ

To remove all your hesitatation, there might be some other small questions, see:

1.Are u a factory?

   Yes! We are one of the largest manufature of PVC hose in China.

2.Experience?

    We already be in this for field for about 20 years.

3.Can we have your own logo?

   Yes, OEM order also be welcomed. We can supply our PVC hose according to your request, like logo,           brand name, color, size, packing,etc.

4.Smple order?

    Available! We welcome sample order to prove our quality. You can be more assures with us.

5.Production ablity?

   We hold the largest producing ablity in Asia. We can produce 100000 roll per month, our producing time     is very short, fit for urgent order.

6. Delivery time?

    We would deliver gods within 5-7 days after production, quick!


You might ask, your company is very big and trustable, then price might be high!
If you think so, why not come to us and test?
See dear, is every question been solved?
Come and let us know you!!
