China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-1
China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-2
China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-3
China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-4
China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-5
China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for Sale for Sale photo-6
US$ 900 - 1,500 MOQ: 5 Units
Key Specifications
Get Latest Price
Use For:
Passenger
Driving Type:
Motorized
Displacement:
151 - 200cc
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Use For Passenger
Driving Type Motorized
Displacement 151 - 200cc
Body Type Closed
Certification Other, CCC ISO SONCAP
Brand Name Trikmoto ambulances car price
Place of Origin Chongqing, China
Model Number KW200ZH-1
Size 3550*1300*1780

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

1. Main Advantages of Three Wheel Ambulance:

  • Humanized configuration: Motorized tricycles replaced traditional labor force transportation, more convenient and faster, save your costs both on energy and time. Especially very powerful and useful when transporting large and heavy goods and driving roads with serious condition.
  • Low maintenance: With correct using, the robust and reliable body & power source of tricycles will keep health for a long time. Do not need to maintain frequently. Daily inspection and cleaning can be easy finished by yourselves in your garden or before your house door. All these require little maintenance fee.
  • Wide range of application: Allows transporting grain, bullamacow, fertilizer, water, silt, coal, metals, wood, fruit, aquatic product, passengers and more, as long as you can think and you need. With one tricycle in your house, it will be your good helper both on daily life and work. Therefore it is very effective and productive.
  • Ready to use: The operating system of cargo tricycle is very easy to handle, and much closer to common users. Its simplicity allows many operators to use without in-depth training.

2.Main Tech of Three Wheel Ambulance

Engine specification

engine type  water cooled
engine  single cylinder,4-stroke
bore×stroke  63.5×62.2
working volume  196.9cc
Nominal displace  200cc
Compression Ratio  9.0/1
starter system  electric/kick
Ignition Model  C.D.I.
advance angle of ignitionBTDC11±2°(≤1500)33.5±2≥4000)
way valve  underneath type camshaft
lubricating system pressure splash
engine net weight  32kg
engine dimension  354×324×435mm
maximum power(kw/rpm) 10.2/7500
maximum torque(N.m/rpm) 14/6000
fuel consumption  ≤354
Low idling speed  1500
exhaust pollution  CO≤3.8%,HC≤800ppm
starting ability  ≤15s
clutch type  Wet Multi-Plate
derailleur type  Regular meshing gear type
transmission ratio,junior 3.333
Output sprocket teeth 15
The capacity of lubricating oil1.1L
carburetor  PZ30
spark plug  D8RTC
lubricating oil pump Internal and external rotor
Magnetor type  Permanent magnet AC
Tricycle specification
Dimension3700×1400×1850mm
Cargo box size:2.2*1.4m (checkered bottome board,ordinary side board)
Rear axle:220mm semi-floating car rear axle
Front shocker:europe-america one-armed shock absorber
Spring plate:4+2 underneath type steel plate with spring
Wheels:4.50-12 front wheel 4.50-12 rear wheel
40*80mm keel frame
28A battery
Bigger fuel tank
small footplate
Max.Load capacity:1 ton
Max.Speed:60km/h
transmission Type:Shaft

Remarks:we can produce it as per client's request

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

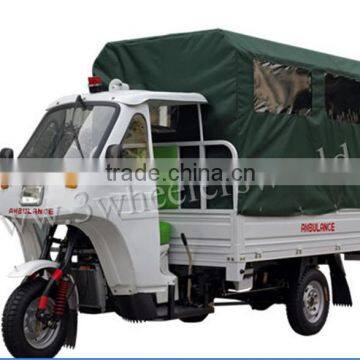

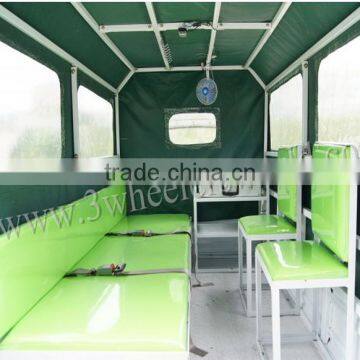

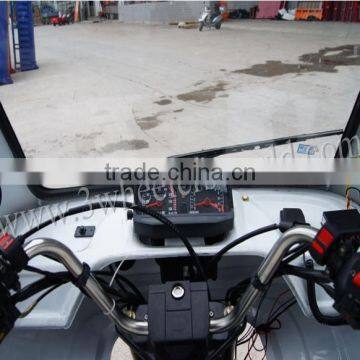

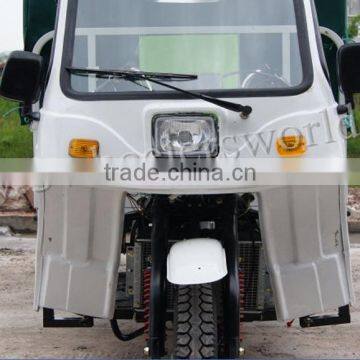

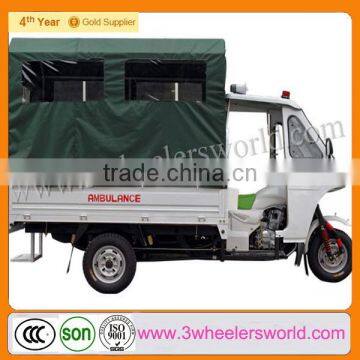

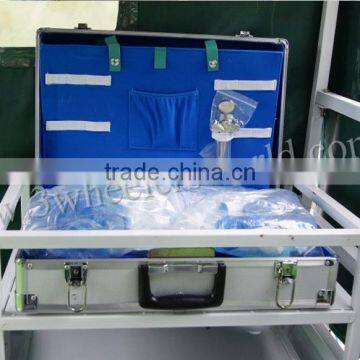

3. Product Picture of Three Wheel Ambulance

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

4.Pictures of  Facory, Packaging , Certificate

China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for saleChina Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

 China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale

 China Direct Factory Promotion Tricycle Ambulance /Three Wheel Ambulance /3 Wheel Car for sale for sale
