Solar water Pumping System
Solar water Pumping System is consist of PV panel,pumping inverter/controller,AC/DC pump .
HSPL/HXXXXL/HA/B series produts are conver the DC power of the PV array to 3ph-AC power
and drives the pump,according to the power of PV array output,regulates output frequency and let PV output max power at all time.
Product Introduction
Product Advantage:
Hybrid(Solar,AC Power,Battery,Diesel generator)
Automatic switching
MPPT MEPT function
Solar Booster for saving solar panels
Metal Shell,Waterproof IP65
Setting working time,Control the flow
Film capacitor 100000 working hours
Work with any 3 phase pump
Features:
1.Convert the DC power of solar array into AC power to the water pump.Soft start and Variable Frequence drive the pump.
2.Second Generation of MPPT Function:Automatic /don't need set MPPT voltage by LCD/LED.Efficiency is Max to 30% higher than the inverter who need to set the MPPT Voltage,more output water flow.
3.One key for startup/Stop,support to adjust the output water flow also.
4.Without battery,storing water is more efficient than storing electricity,reduce the cost of constrution,operating and routine maintenance
5.Protection:Over temperature,Over input voltage,over input current,over reted load,input anti-reverse,AC output short circuit,phsae missing,phase unbalance,lighting.
dry run protection by software/Well sensor,waterpfoof.
6.water level detactive of tank for over flow,Optional of pressure sensor for long
distance between the well and tank.
7.Mobile phone control or computer remote monitoring through RS485/GPRS/wifi/Ethernet(optional)
Solar Pump Inverter Parameters
| Model | HSPL750H with Booster | |
| DC Input | Rated Power(W) | 750W |
| Min DC Input Voltage(V) | 55V | |
| Max DC Input Voltage(V) | 95V | |
|
Rated Power of DC Input Voltage Request(V) |
62.5-95V | |
| AC Output |
Rated Power AC Voltage(V) 3 phase |
220V |
|
Rated Power AC Current(A) |
2.1A | |
| Inverter efficiency | 97% | |
| Output frequency(Hz) | 0~50/60 | |
| Others | Water Level Sensor (Water of Well) | Yes |
| Water Level Sensor(Water of tank) | Yes | |
| AC Switcher | Optional | |
| GPRS Monitor &Controller | Optional | |
| Protection type | IP65 DC input Low/Over Voltage | |
| DC Input Anti-Reverse | ||
| Output overload,Output short circuit | ||
| Over temperature | ||
| Sensor of Water Empty/Full | ||
| Lighting | ||
| Operation Limit | Noise(1 m) | <50dB |
| Operation environment temperature | -10 to 60Degree | |
| Humidity | 15%-+95%RH | |
| Using altitude(m) | <4000Altitude higher than 1000m pls consider to use less loads | |
| Others | Prohibiting the installation location:direct sunlight,thicking dust,corrosive gas or oil mist,flammable.etc | |
| Adapted Pump | Support Pump's HP | ≤1HP |
| Rated Power(W) | ≤750W | |
| Rated Frequency(Hz) | 0~50/60 | |
| Rated Voltage | AC-220V-3 phase | |

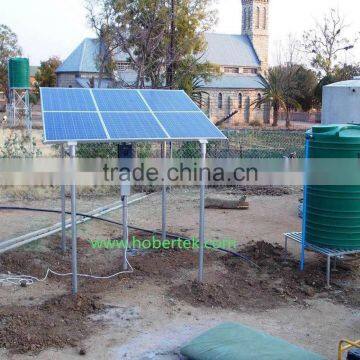

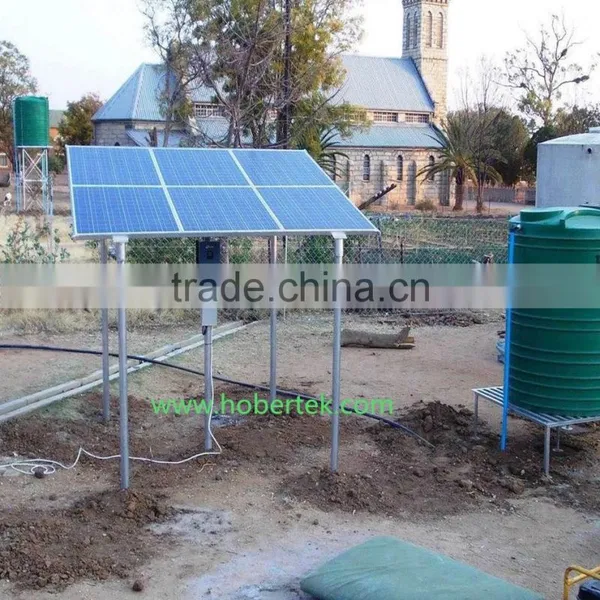

Project and Product Application
Hober technology co.,ltd is a professional large-scale manufacturer of solar pump inverter, integrating development and production together. As a leader in china ,we have patent by ourselves and CE certification ,and still focus on research, development and innovation, Our company was established in 2009, Located near hongkong which convenient sea, land and air transportation. already exporting to Asia, Australia,Africa and 20 other countries and regions. “reasonable prices, efficient production time and good after-sale service” are our tenets. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
1,-Global leading professional inverter manufacturer
2,-Perfect product quality:100% full bum-in test
3,-Test report:CE,RoHS,UL,ISO9001-2008
4,-Monthly production capaciy:1,000 pcs
Shipping Time
China Post (10-30 working days)
EMS (7-15 working days)
DHL (7-15 working days)
UPS (7-15 working days)
•We will ship to a physical address only, please provide physical address and telephone.
number for Expedite service
•The most reliable, affordable way of shipping method depends on your address.
•Online tracking number will be emailed to buyer through email.
•We are unable to take any responsibility for any custom delay.
