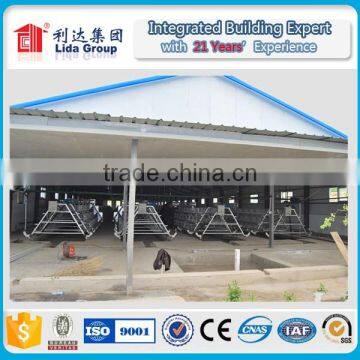

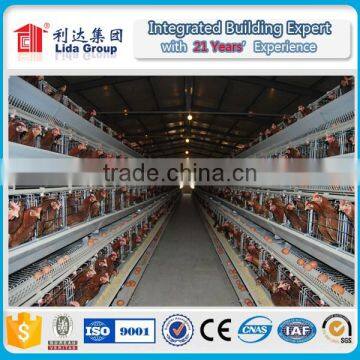

Lida Brand Low Cost Chicken Farm House

Lida brand low cost chicken farm house

Technical details

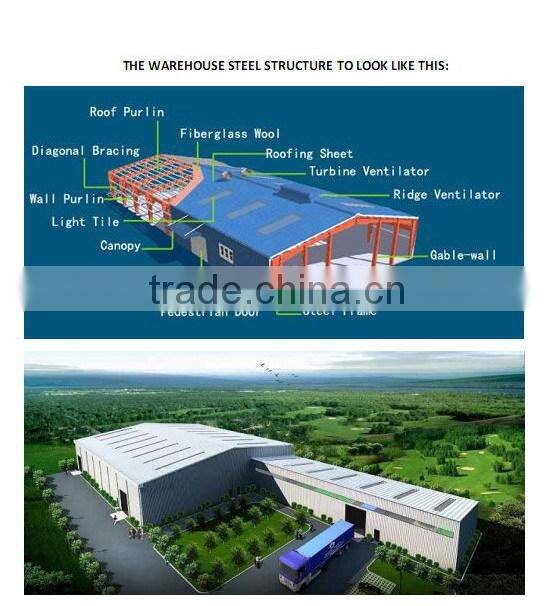

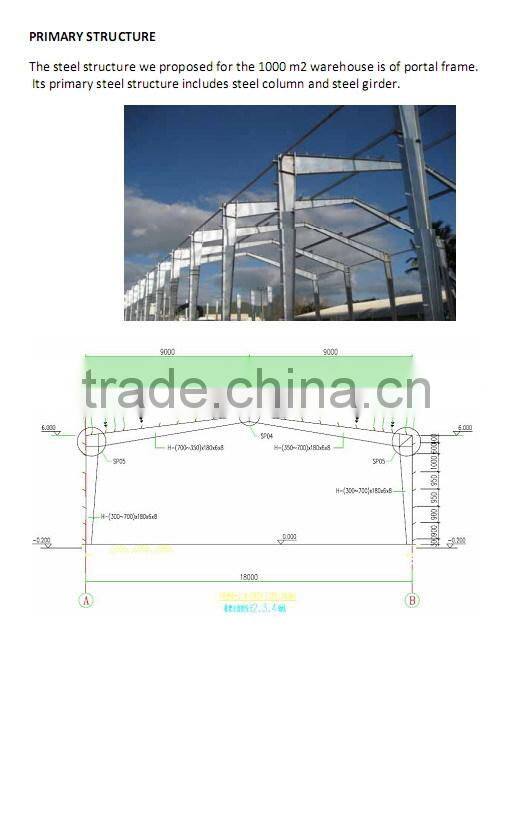

Main steel structure

H-section steel. Steel grade Q235 or Q345

Treatment: pre-welded clips for easy erection,

all pre-cut&pre-drilled,

Hot-dipped Galvanized, any-rust

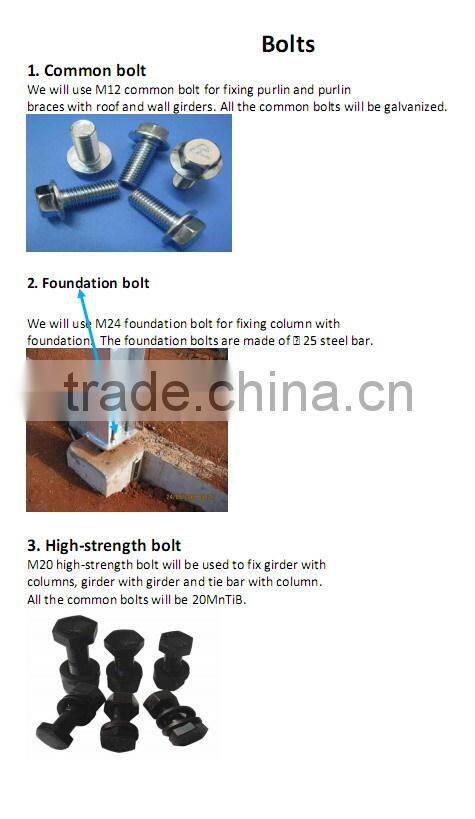

Accessory: Intensive bolts. Grade: 10.9

Anchor bolt: M24, steel Q235

Ordinary bolt: galvanized bolt

Brace

Cross support: Dia 20 round bar, steel grade A36 (Q235), after processed and galvanized

Angle brace: Steel angle bar. 50mm*50mm*4mm, steel grade A36 (Q235), after processed and galvanized

Brace between column: round bar, steel grade A36 (Q235), after processed and galvanized

Belt bar: 89*3 after processed and power coate

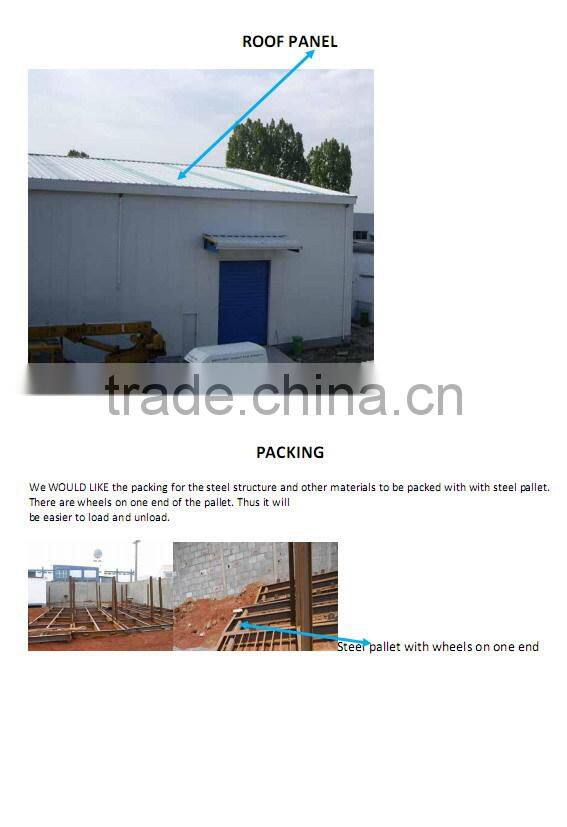

Roof:

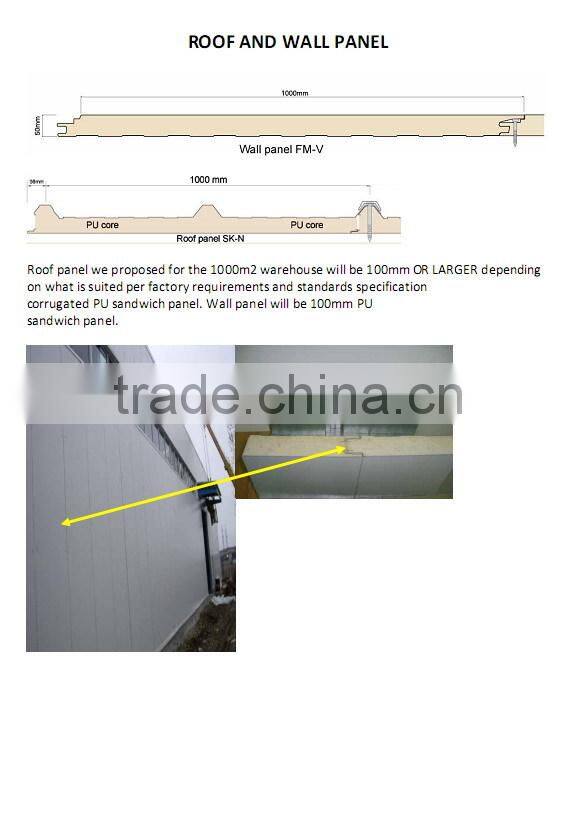

Out-roof sheeting: 0.5mm, V840 pre-painted galvanized steel corrugated sheet. Or EPS sandwich panel

Transparent lighting panel (PVC sky light): 6mm thickness PVC

Accessories: glass glue, self-tapping screw, rivet, etcurling: C220*75*20*2.5 or C160*60*2.5 pre-painted or galvanized

Trim: pre-painted galvanized steel sheet

Wall:

Out wall sheeting: 0.5mm v900 pre-painted galvanized steel sheet or Sandwich panel

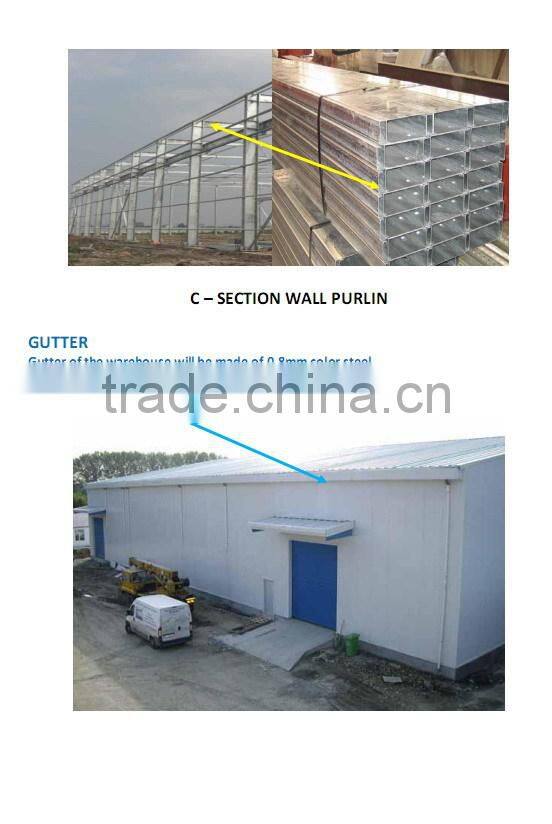

Wall purlin

Door: slidding doors/ Rolling doors/

Windows: PVC frame,glass window

Gutters: steel sheet thickness 0.8mm

Rainspout: 110 PVC

Crane: with or without crane in 5tons to 20tons

Safety bar in front door:
