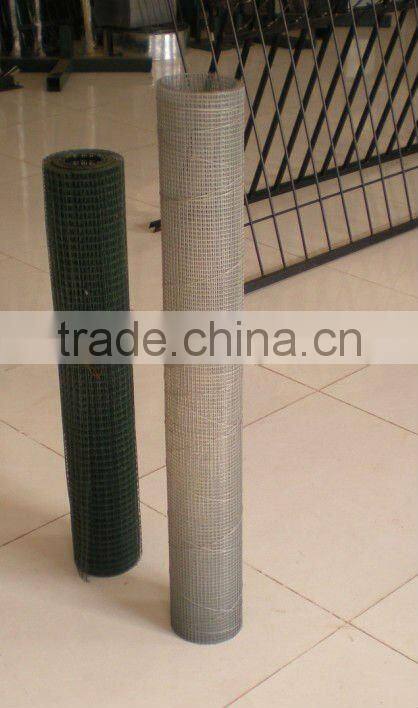

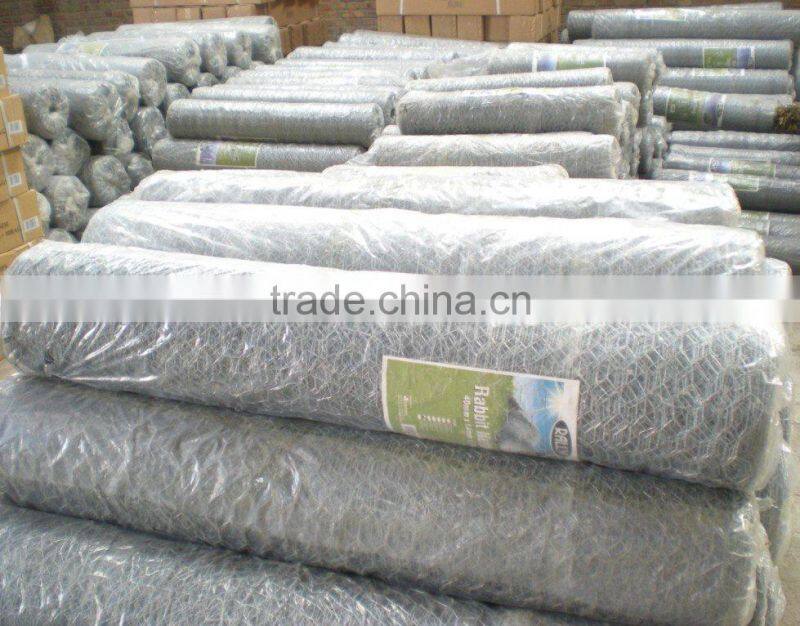

Galvanized Fencing Wire Mesh

Normal RAL6005 color, other RAL color

can also be available upon request

Wire dia

Mesh

Panel height

Length

3.0-5.0mm

50*200mm

0.63m

2.0m/2.0m/2.5m

55*200mm

0.83m

2.0m/2.2m/2.5m

1.03m

2.0m/2.2m/2.5m

1.53m

2.0m/2.2m/2.5m

2.03m

2.0m/2.2m/2.5m

SPECIFICATIONS FOR THE FENCING PANEL

MESH SIZE

WIRE THICKNESS

COATING

HIGHT

LENGTH

FOLDS

WEIGHT

50mmx200mm

4.0mm/5.0mm

(before PVC coated is 4.0mm and after PVC coated is 5.0mm)

Galvanized and PVC coated

0.63m

2.00m

2

3.76kg

0.83m

2.00m

2

4.85kg

1.03m

2.00m

2

5.95kg

1.23m

2.00m

2

7.05kg

1.43m

2.00m

2

8.15kg

1.63m

2.50m

3

11.67kg

1.83m

2.50m

3

13.04kg

2.03m

2.50m

4

14.51kg

2.23m

2.50m

4

15.88kg

2.43m

2.50m

4

17.18kg

Note: 1,The opening can be 50mmx100mm,50mmx150mm or other size.
2,The wire thickness can be on the customer’s request
3, For the finish coating ,we can do electric dipped galvanized and PVC coated ,hot dipped galvanized and PVC coated, PVC coated without galvanizing. The customer can also choose PVC painted finish treating.
4,The color of the PVC powder is available in all RAL colors
5, Regarding the height and length of the panel, customer’s special demand can be also considerable
