Specifications
1. Size:dia1500mmXmax600mmheight2. The size can be changed according to customer's need.3. Material: Carbon

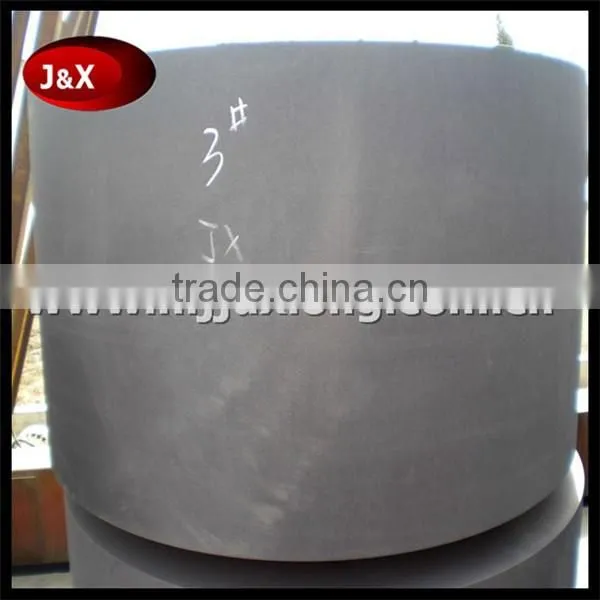

JX GRAPHITE DISC
1. Place of Origin: China(mainland)
2. Product Name: graphite disc
3. Size: dia630-1530mm x max800mm height
4. The size can be changed according to customer's need.
5. Brand Name: J&X
6. Usage:It can be used Photovoltaic,single crystal silicon furnace,mono-crystal silicon furnace, making single crystal silicon and mono-crystal silicon.
Test Item |
Unit |
JXD1 |
JXD2 |
Electric resistance |
μΩm |
8.5 |
≤8.5 |
Bulk Density |
g/cm3 |
1.72-1.74 |
1.70-1.72 |
Grain Size |
mm |
0.8 |
0.8 |
Compressive Strength |
Mpa |
37 |
≥35 |
Bending Strength |
Mpa |
17 |
≥14.5 |
Porosity |
% |
18 |
≤20 |
Ash Content |
% |
0.11 |
≤0.2 |
C.T.E. |
100-6/°C |
2.5 |
≤2.5 |
Size |
mm |
Max Diameter 1500mm Max Height 600mm |
|
JX MAIN MARKET ALL OVER THE WORLD
JX PRODUCTION SHOP
JX PROFESSIONAL TEST EQUIPMENTS
