Natural flexible graphite roll/foil/sheet/paper density 1.5

FOB Price

USD $0.1 - $5 / Roll

10 Rolls(Min.Order)

Supply Ability 10000 Square Meter / Square Meters per Month
Port China port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	J&X	Application:	Car gasket	Dimensions:	0.05-1.0mm
Chemical Composition:	graphite and carbon

Product Description

Product name:flexible graphite roll

1.Usage:

It's the basic material of graphite sealing part. It's maily used to make packing ring,graphite tape,sealing gasket,composite panel mainly used to make car gasket

2.Specification

Thickness	Density	Sulphur	Carbon	Chlorine	Tensile Strength
mm	g/cm3	ppm	%	ppm	MPA

0.13	0.7-1.5	800-500	99. 3	40	≥4.0
		500-200	99.4	30	≥4.5
		≤200	99.5	20	≥5.0

0.2-0.5	0.7-1.1	800-500	99.3	40	≥4.0
		500-200	99.4	30	≥4.5
		≤200	99.5	20	≥5.0

0.5-1.0	0.7-1.1	800-500	99.3	40	≥4.0
		500-200	99.4	30	≥4.5
		≤200	99.5	20	≥5.0

Note:
1. If the thickness 0.5mm density≥1.2g/cm3, the tolerance of thickness and density can not be guarantee0.03.

2. If the thickness 0.5mm density≥1.3g/cm3, it is better to produce the sheet than rolls.Sheet sise:
1000x1000mm and 1500x1500mm.

3. It is rather difficult to produce the products in which the sulphur≤200ppm and carbon≥99.5%,

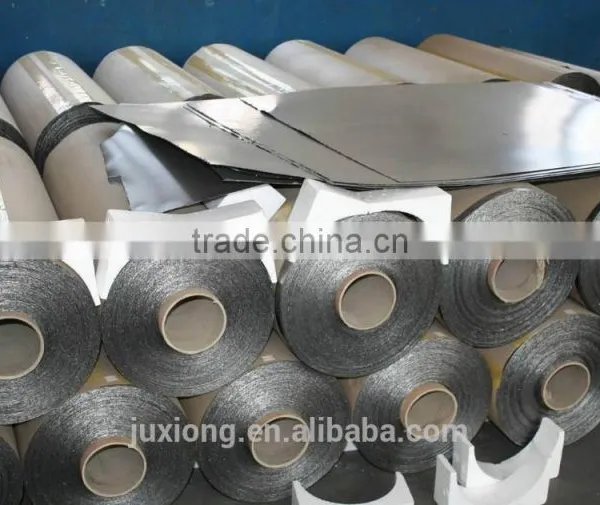

Picture 1
