Hot sale carbon graphite brick/block with high quality and competitive price

Specifications

1. good resistance to high-temperature
2. oxidation&slag erosion
3. long working life and high bulk
4. high refractability

JX GRAPHITE BRICK AND CARBON BRICK

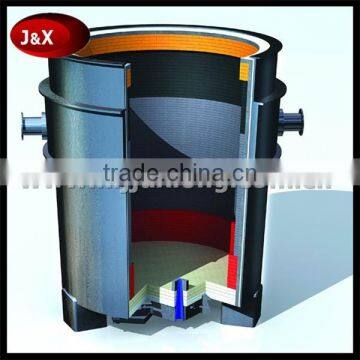

The JX graphite brick and carbon brick are  widely used as the lining material in various of high temperature furnace or chemical equipment. In many chemical processes, the equipment and reaction vessels must be protected against the acidic and caustic materials used in the processes. The linings made from ceramic or synthetic plastic type materials are often unsuitable, since they may not withstand chemical attack, high temperature or sudden temperature changes. Alkaline solutions and hydrofluoric acid are of great importance in chemical technology, but they rapidly destroy equipment linings not made of carbon containing materials.





TECHNICAL PROPERTY FOR GRAPHITE BRICK

Test Item	unit	JX- GZ1	JX- GZ2	JX- GZ3
Electric Resistance	μ Ωm	8.3	≤8.	≤9.0
Bulk Density	g/cm³	1.72-1.74	1.70-1.72	1.68-1.70
Grain Size	mm	0.8	0.8	0.8
Compressive Strength	M pa	40	≥35	≥32
Bending Strength	M pa	17.5	≥14.5	≥14.5
Porosity	%	18	≤20	≤22
Ash Content	%	0.09	≤0.2	≤0.3
C.T.E.( to 100 °C)	100-6/°C	2.4	2.5	2.9
Size The size can be made according to customers’ requirement	mm	76mm x 115mm x 230mm 64mm x 115mm x 230mm 31mm x 115mm x 230mm



























































TECHNICAL PROPERTY FOR CARBON BRICK

SPECIFICATION	UNIT	Non-impregnated	Impregnated
Bulk Density	g/cm3	1.5-1.65	1.65-1.8
Porosity	%	10to20	≤8
Compressive Strength	Mpa	45-65	≥80
Bending Strength	Mpa	18	≥26
Tensile Strength	Mpa	8	≥12.5
Ash Content	%	≤3	≤3
Using Temperature	℃	800-1000	≤180
Acid Resisting	HCL+H2SO4, 20%	≥98	≥99
Alkali Resisting	%	≥98	Nil
SIZE		240 x 115 x 20mm                         (Thick: 30mm 40mm 50mm 65mm 80mm 100mm)
PACKAGE		Carton on wooden pallet or by negotiation.
