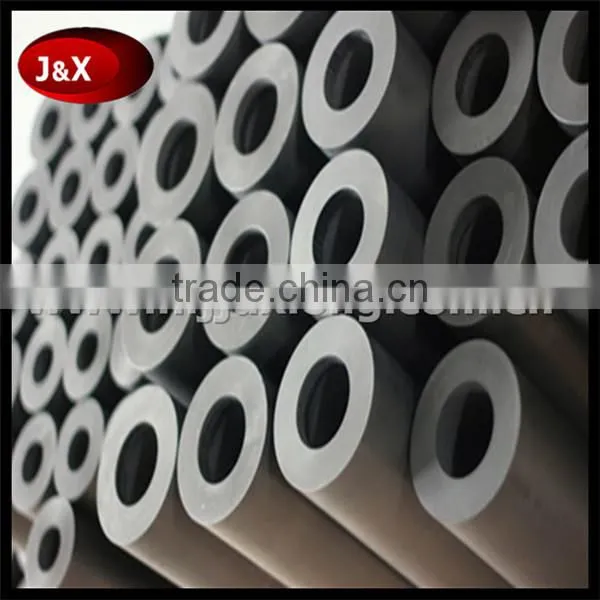

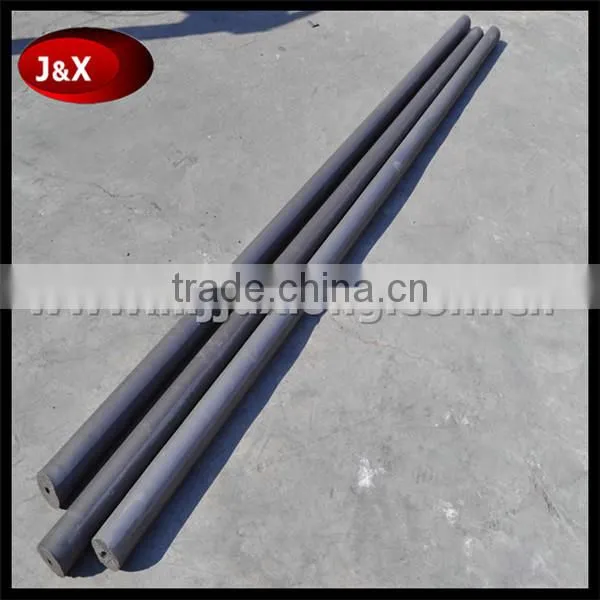

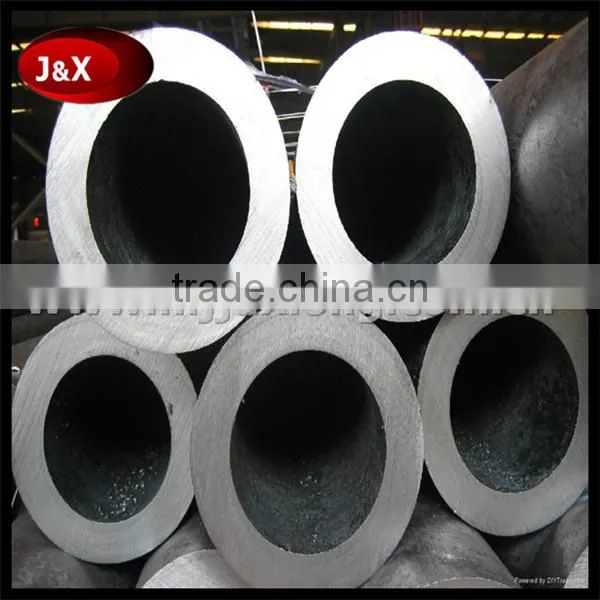

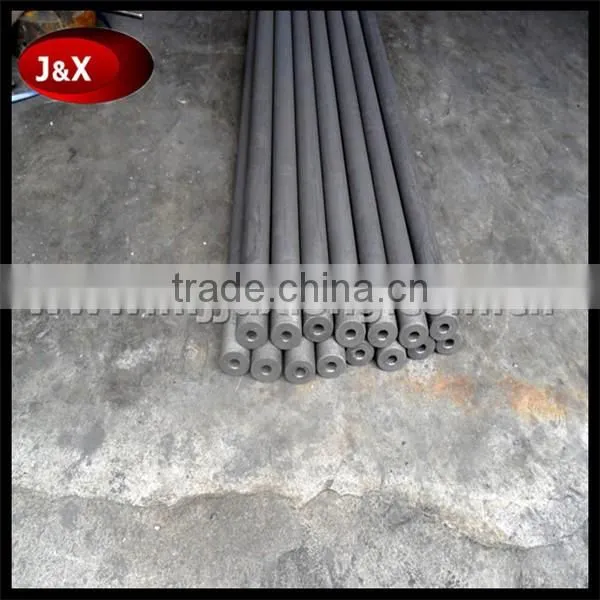

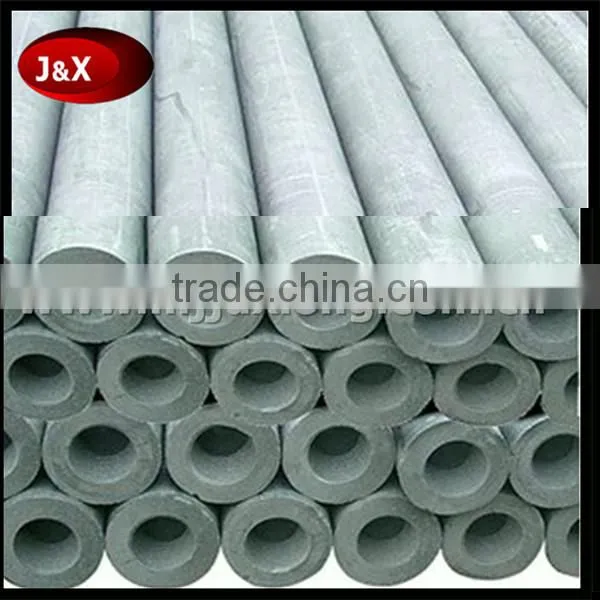

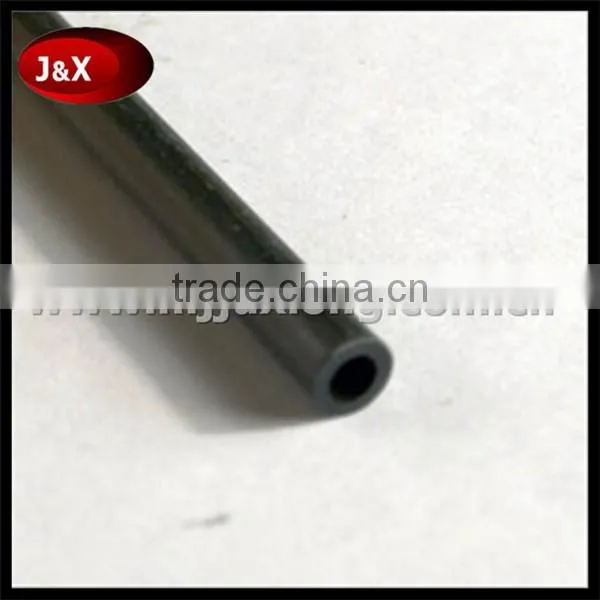

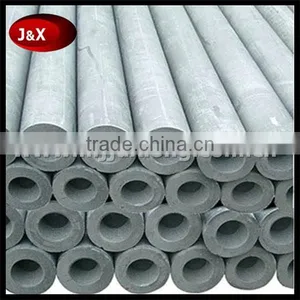

Graphite Tube for Vacuum Furnace
Specifications
1. Straightness:<2.52. Design Pressure<0.3
3.Wall Thickness Tolerance:+/-0.5
4. Inner dia:22-254mm
5.Outside dia:32-330mm
Graphite Tube
|
The Dimension of Resbon Graphite Tube
| ||||||
|
Nominal Dia. mm |
Inner Dia. mm |
Outside Dia. mm |
Wall Thickness mm |
Wall Thickness Tolerance mm |
Straightness mm/m |
Design Pressure MPa |
22 |
22 |
32 |
5 |
±0.5 |
≤2.5 |
≤0.3 |
25 |
25 |
38 |
6.5 |
±0.5 |
≤2.5 |
≤0.3 |
30 |
30 |
43 |
6.5 |
±0.5 |
≤2.5 |
≤0.3 |
36 |
36 |
50 |
7 |
±0.5 |
≤2.5 |
≤0.3 |
40 |
40 |
55 |
7.5 |
±0.5 |
≤2.0 |
≤0.2 |
50 |
50 |
67 |
8.5 |
±0.5 |
≤2.0 |
≤0.2 |
65 |
65 |
85 |
10 |
±1.0 |
≤2.0 |
≤0.2 |
75 |
75 |
100 |
12.5 |
±1.0 |
≤2.0 |
≤0.2 |
102 |
102 |
133 |
15.5 |
±1.0 |
≤2.0 |
≤0.2 |
127 |
127 |
159 |
16 |
±1.0 |
≤2.0 |
≤0.2 |
152 |
152 |
190 |
19 |
±1.0 |
≤1.5 |
≤0.2 |
203 |
203 |
254 |
25.5 |
±1.2 |
≤1.5 |
≤0.2 |
254 |
254 |
330 |
38 |
±1.2 |
≤1.5 |
≤0.2 |
JX MAIN MARKET ALL OVER THE WORLD

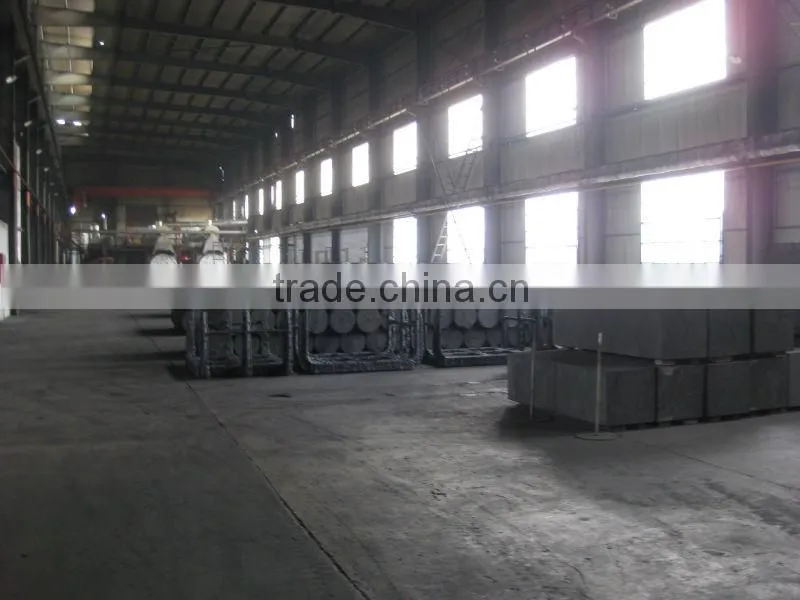

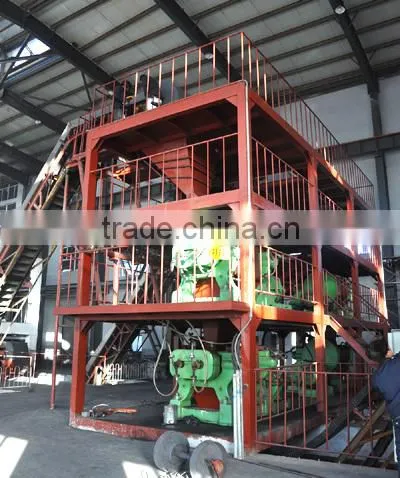

JX PRODUCTION SHOP

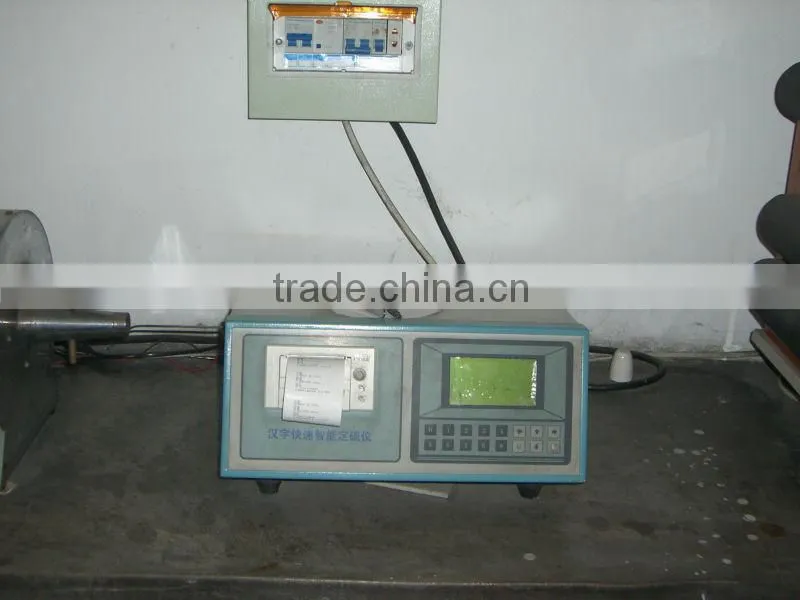

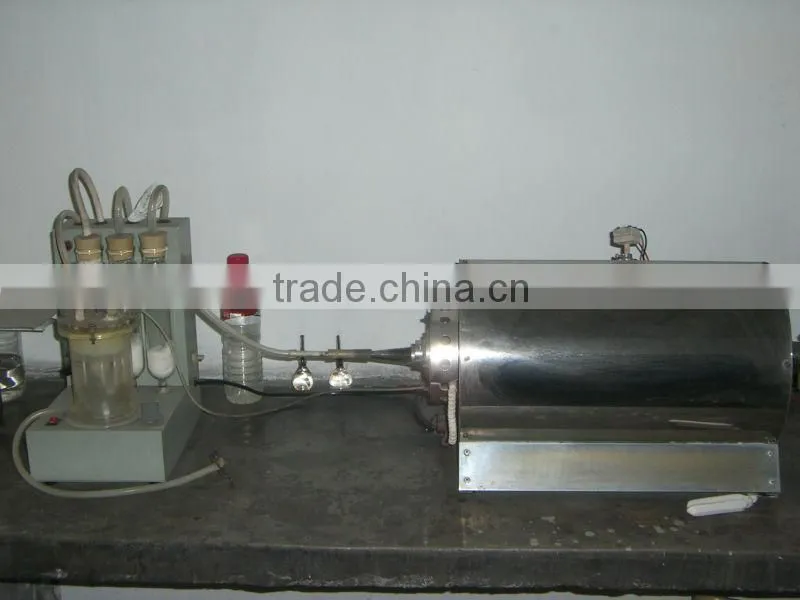

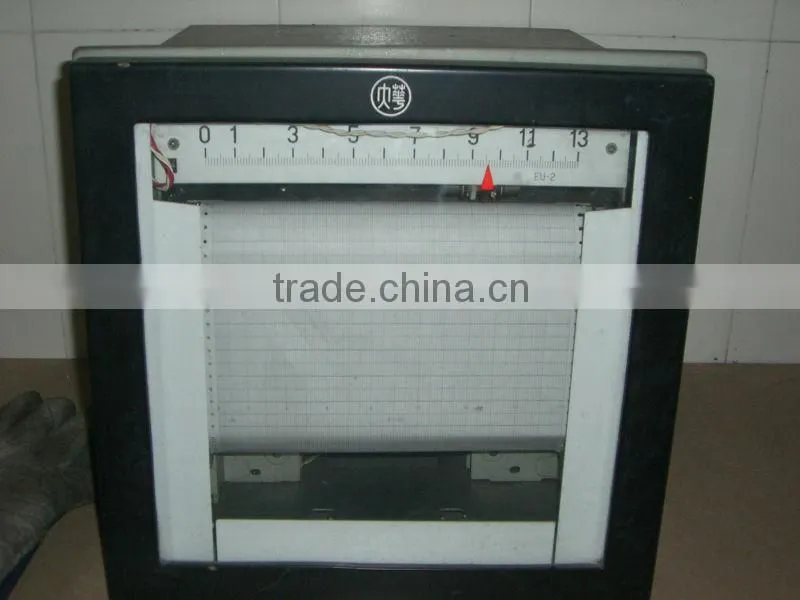

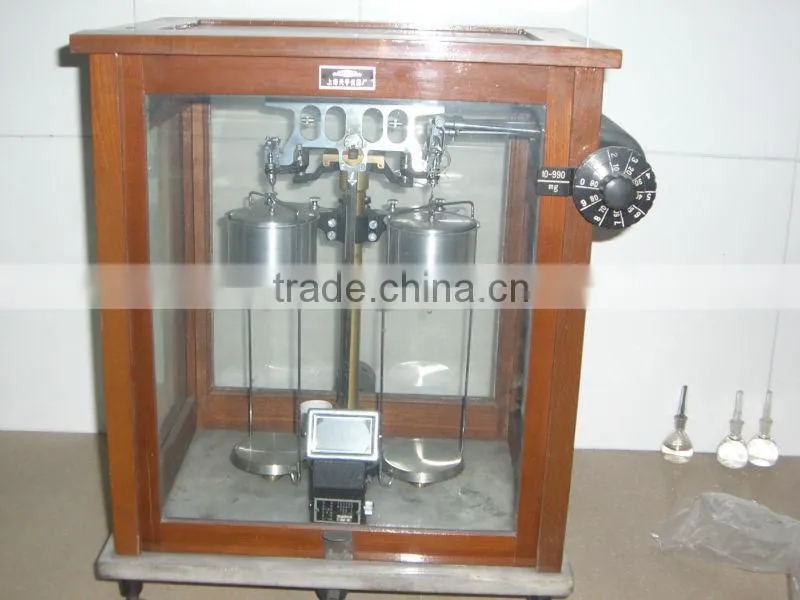

JX PROFESSIONAL TEST EQUIPMENTS
