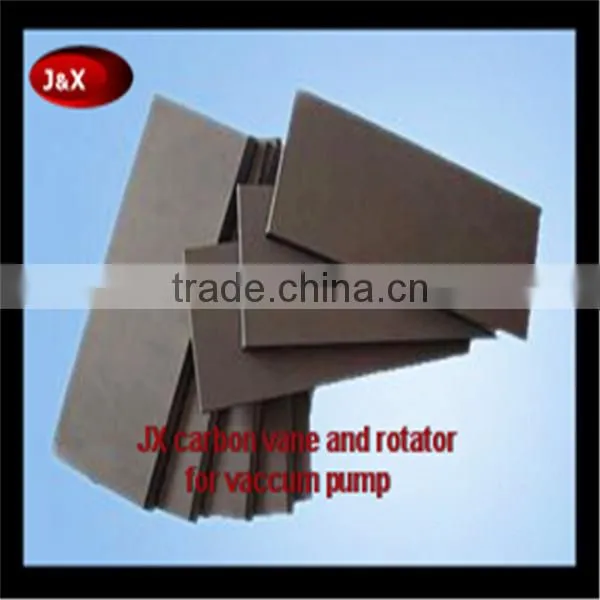

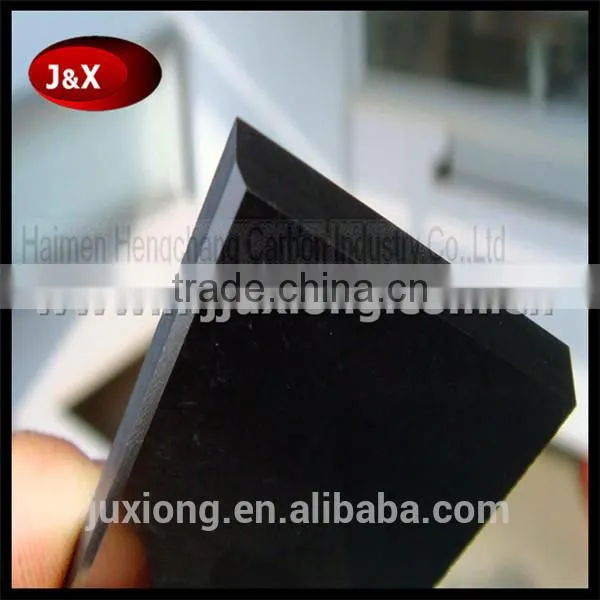

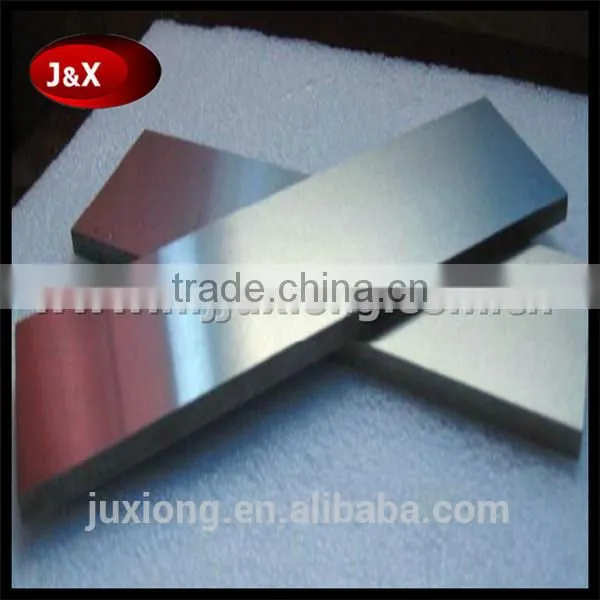

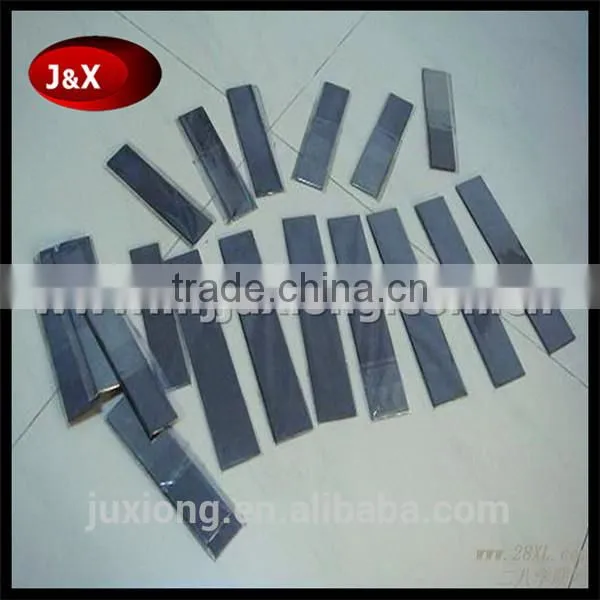

JX Carbon Vane
• Low wear rate
• Low coefficient of thermal expansion
• Dimensionally stable
• Compatible with food & pharmaceuticals
• Excellent thermal shock
• Good hardness
• Good impact resistance
• Excellent strength
Vane for alternator
Carbon vanes are important elements in dry running rotary and vacuum pumps as well as in wet vane-type pumps while liquids being pumped have poor lubricating features.Owing to the low specific density of carbon material, the specific contact pressure exerted by the vane can be kept to a low level thus influencing vane life favorably.
Rotor & Vane for vacuum pump
Vacuum pump of a camshaft direct driving manner has a strong durability and a low power consumption compared with an existing alternator driving manner.
The technical properties of Carbon Vane
The material grade |
JXGC |
JXEK60 |
Density( g/cm³) |
1.78 |
1.73 |
Compressive strength(MPA) |
65 |
80 |
Flexural strength (MPa) |
110 |
120 |
Young modulus(GPa) |
18.0 |
22.0 |
Rockwell hardness (HRB) |
60 HR 5/100 |
80 HR 5/100 |
Shore hardess |
60 |
66 |
Thermal expansion coefficient ( E-6/K) |
12.0 |
11.0 |
Porosity (%) |
NIL |
NIL |
Temperature(℃) |
180 |
180 |
PACKAGE
JX PROFESSIONAL TEST EQUIPMENTS
Export market all over the world
