Specifications
1.material: steel type and graphite2.Product name:Graphite spiral wound gasket
3.Type:inner ring,outer ring and inside and ou

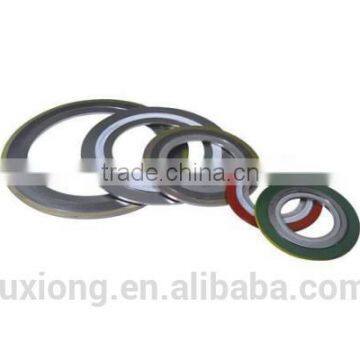

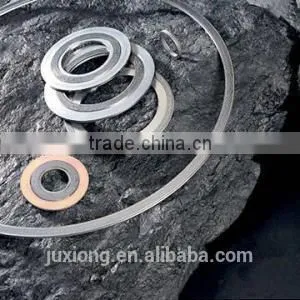

Spiral Wound Gasket
This product is made by selecting the corresponding material to process as per the customer’s requirements.
There are four types such as basic type, with inner ring , with outer ring, with inner and outer ring. We also can make according to related standard or customer’s requirements.
It has the good recovery function and particularly is more obvious when the gasket receives the fluctuation of the system pressure and temperature.
The application temperature scope is - 200°C~+1000°C, and can maintain the reliable seal effect under the 400Bar high pressure.
Used in electric-power factory, nuclear power factory, chemical industry, petrochemical, refinery, boiler, flange attachment point and other domains.
| Application temperature | -200°C---+1000°C |
| Size | within 2600mm |
| Application area | electri-power factory,nuclear power factory,chemical industry, petrochemical, refinery,boiler,flange attachment point and other domains |
| Thickness | 2.5mm, 3.2mm,4.5mm |
| Type | Basic type,with inner ring, with outer ring,with inner and outer ring |
| MOQ | 100 pcs |
Package: Standard export package
Delivery time: 20 days after confirmation
Payment: L/C, T/T, West Union, Paypal
