Specifications
1.temperature:-200-8002.Pressure:3-50Mpa
3.Velocity:0-20m/s
4.Twistlimit:S230/m Z230/m
5.PH range:0.14

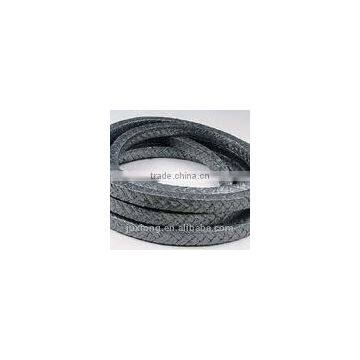

Product name: Graphite Wire
1.Introduction
The braided graphite yarn is used high barometric maxima with the high carbon low sulphur expanded graphite amid heat800-1000centigrade of the bulgy furnace, because of the compound in the scalelike graphite was decomposed, the volume expands 160-280 doubles,they become very low density vermiform objects, with defferent natural fiber enhanced material such as: the cotton fiber, glass fiber and carbon fiber etc., add the adhesive ,process aqueeze and silver become the strip forming the compound machine, pass the spinning machine then become the graphite yarn. For the adaptation different work conditionate spinning machine stranding wire inside metallic material, such as the inconel wire, the SS wire and copper wire etc., make various enhanced flexible graphite yarn for weave the graphite packing of the different use.
2.Types of reinforced fiber for graphite yarn:
| JX-1110 | Graphite yarn reinforced by cotton fiber |
| JX-1120 | Graphite yarn reinforced by glass fiber |
| JX-1130 | Graphite yarn reinforced by SS304wire |
| JX-1131 | Graphite yarn with outside braided SS304 wire jacket |
| JX-1132 | Graphite yarn with outside crocheted SS304 wire jacket |
| JX-1140 | Graphite yarn reinforced by inconel wire |
| JX-1141 | Graphite yarn with outsidebraided inconel wire jacket |
| JX-1141F | Graphite yarn with inconel over knitted(flat type) |
| JX-1142 | Graphite yarn with outside crocheted Inconel wire jacket |
| JX-1142F-09 | Free of ignition loss graphite yarn with external crocheted Inconel wire jacket |
| JX-1150 | Graphite yarn reinforced by copper wire |
| JX-1170 | Graphite yarnreinforced by carbon fiber core |
| JX-1170F | Graphite yarnreinforced by carbon fiber core(600centigrade/1.5h losson ignition less than3%) |
| JX-1181 | Graphite yarn with outside braided nomex fiber jacket |
| JX-1190 | Graphite yarn reinforced by synthetic fiber carrier |
| JX-1100P | Graphite yarn with PTFE impregnated |
| JX-1100N | Low-sulfur graphite yarn(sulfur content less than300ppm) |
