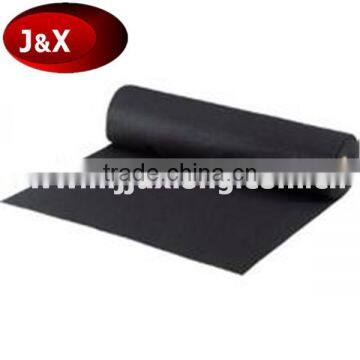

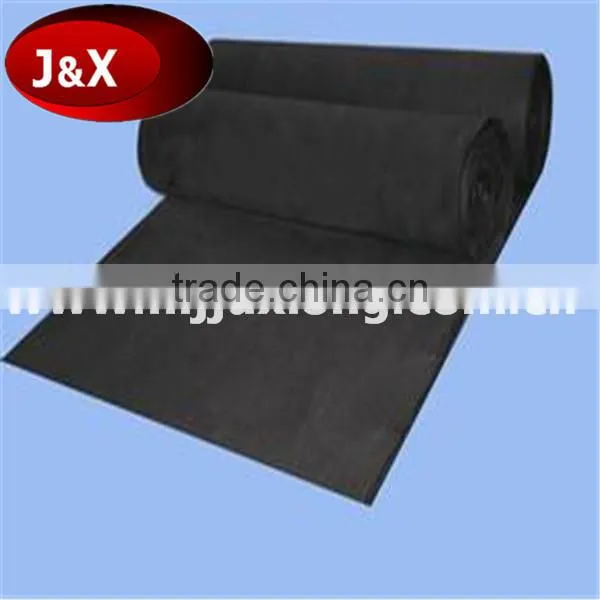

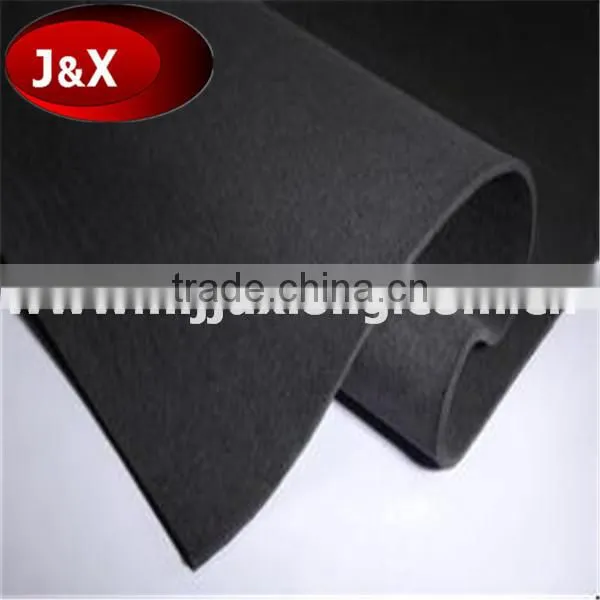

Help CenterCarbon Fiber Heat Resistant Insulation Cloth
Related Products
The carbon fabric is woven by the PAN(Polyacrylonitrile)-based carbon fiber with characteristics of high electrical conductivity, excellent heat insulation ability and ideal structural strength. It's divided into heating carbon fabric, heat insulation carbon fabric and structural strengthening carbon fabric. It also can be used as the reinforced material in carbon/carbon composite products.
Specification |
Temperature |
||||||
Item |
Unit |
Value |
Process Temperature |
ºC |
1450 |
||
Carbon Content |
% |
≥98.5 |
Operating Temperature
|
In the air |
ºC |
≤400 |
|
Surface Density |
g/m2 |
3k: 150-180 6k: 300-350 12k: 500-550 |
In the vacuum |
ºC |
≥2200 |
||
In the inert atmosphere |
ºC |
≥1800 |
|||||
Thermal Conductivity |
1050ºC W/(m.k) |
0.17-0.21 |
Dimension |
||||
Electric Resistance |
Ωmm2/m |
40 |
Thickness |
3k: 0.3mm 6k: 0.5mm 12k: 0.7mm |
|||
Tensile Strength |
Mpa |
≥500 |
width |
30-1500mm |
|||
Elongation |
% |
1.5 |
Length |
50-100m |
|||
Ash |
% |
≤1.5 |
Package |
Wooden case |
|||
