Specifications
1.Ideal material for decoration2.Service temperature(CEL):-40-+-120
3.Heat deformation temperature(Mpa):134,139
Polycarbonate solid sheet
Colors: Clear, Opal, Green ,Blue, Bronze , Lake-blue ,
Note : Special specification and color can be processed against customer's demand.
Thickness: 1mm-15mm
Max Width: 2100mm
Stand width:1220mm,1560mm,1820mm,2100mm
Length: no limit,
Features:
1) Light transmission: Up to88%
2) Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting
3) Temperature resistance range: -40 ~ 120°, C
4) Light weight: Only 1/12 of the weight of glass of the same thickness
5) Ultraviolet resistance: With UV protective layer
6) Flame resistance: Rated class B1
7) Sound and heat proof
applications of our products:

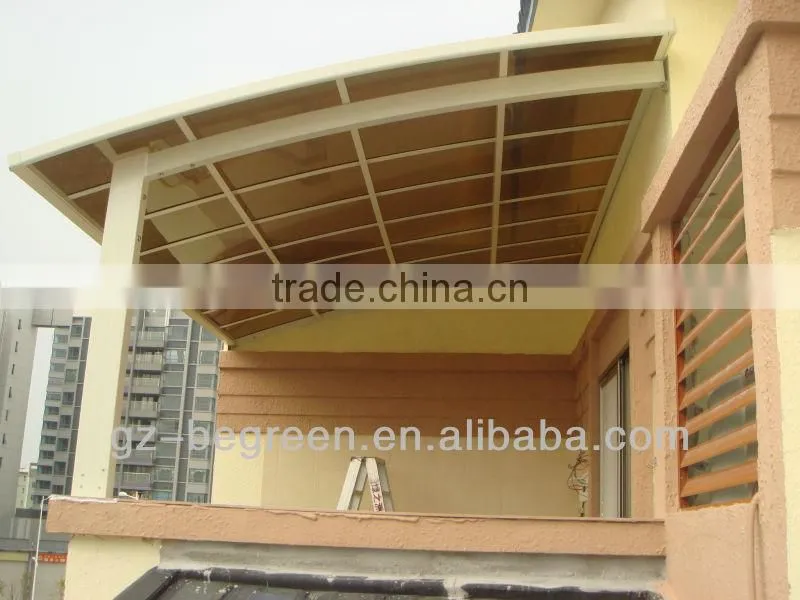

1) roofing for swimming pool, shopping malls, commercial streets
2) Sunshade for stadiums and bus stops, gazebo, open air carport,
2) lighting canopy for corridors, passages and subway entries
3) flashing for bank ATMs, telephone box, gateways, garages
4) Sound and heat insulation wall for expressways and houses
5) Heat preservation material for agricultural greenhouse, flower greenhouse.
6) Soundproof material for partitions
7) Unbreakable material for glazing widows, roof glazing.
Technical data
No. | characteristics | unit | PC multi-wall sheet | PC solid sheet |
1 | (1m,1kg) Falling dart impact |
| No cracks on surface | No cracks on surface |
2 | Tensile yield strength | Mpa | > | > |
3 | Shore hardness |
| 80.4(A) | 81.2(A) |
4 | Bending elastic modulus | Gpa | 2.4 | 2.12 |
5 | Elongation at break | % | 65 | 130 |
6 | Light transmissivity(clear) | % | 80.2(6mm) | 88(3mm) |
7 | Service temperature |
°C |
-40°C- +120°C |
- 40°C- +120°C |
8 | Head deformation temperature (1.8Mpa) |
°C |
134 |
139 |
9 | Coefficient of linear expansion ( - 30°C) - +30°C |
°C-1 |
6.4*10-5 |
7.23*10-5 |

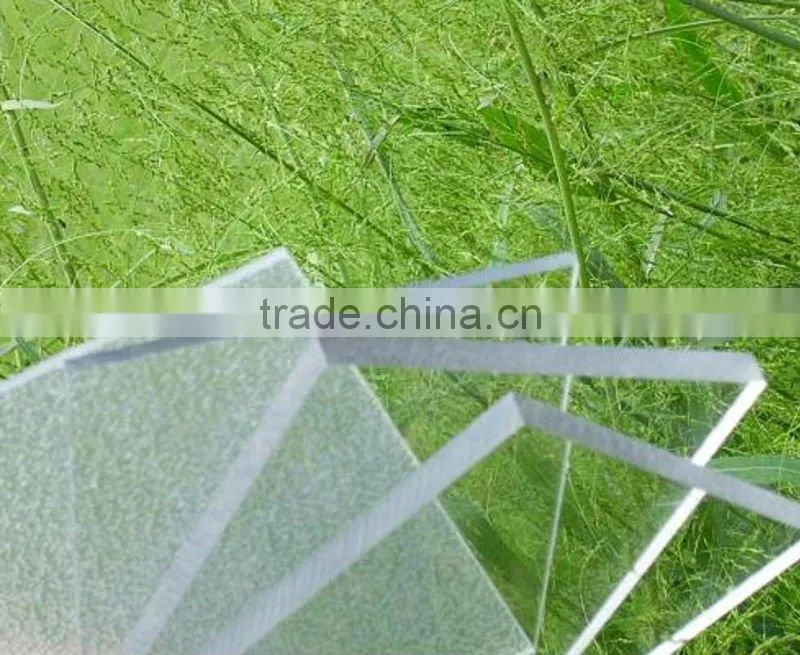

Picture show
PC emboss sheet ,PC flat sheet,ect.
