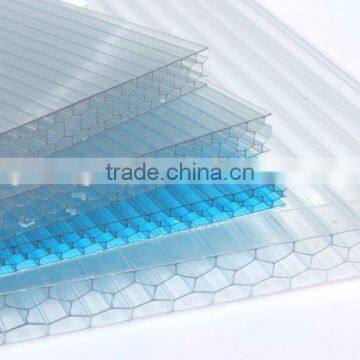

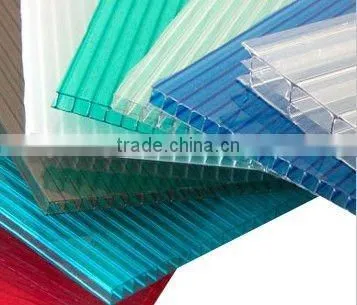

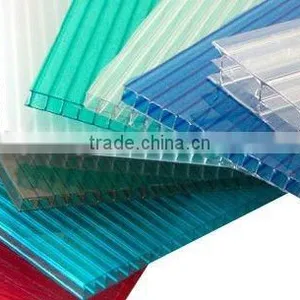

Polycarbonate Multi-wall sheet
is a type of engineering plastic of excellent intergration capability,ideal material for roofing panel.
Polycarbonate 3- wall hollow sheet
Thickness : 10mm / 12mm / 14mm / 16mm
Maximun width : 2100mm
Polycarbonate 4 wall hollow sheet
Thickness : 6mm / 8mm /10mm / 12mm
Maximun width : 2100mm
Polycarbonate 5-wall hollow sheet
Thickness : 12mm / 14mm / 16mm / 20mm / 25mm
Maximun width : 2100mm
Polycarbonate X-wall hollow sheet
Thickness : 10mm / 12mm / 14mm / 16mm / 20mm / 25mm
Maximun width : 2100mm
Polycarbonate honeycomb sheet(PC Alveolate sheet)
Thickness : 6mm / 8mm / 10mm / 12mm / 14mm / 16mm / 20mm
Maximun width : 2100mm
Length : 5800mm / 11800mm
Color : Clear , Opal , Green , Blue , Bronze , Lake-blue
Note : Special specification and color can be processed against customer’s demand
Features:
1. Light transmission:up to 88%
2. Impact resistant:80 times that of glass, 15 times thats of acrylic sheeting
3. Temprature service : -40°C ~~120°C
4. Light weight: only 1/12 of the weight of glass at same thickness
5. UV Protection
6. Fire retardance: Rated Class B1
7. Sound & Heat Insulation
Applications:
1)Roofing for swimming pool,shopping malls,commercial streets
2)Sunshade for stadiums and bus stops,gazebo,open-air carport
3)Lighting canopy for corridors,passages and subway entries
4)Flashing for bank ATMs,telephone box,gateways,garages
5)Sound and heat insulation wall for expressways and houses
6)Heat preservation material for agricultural greenhouse,flower greenhouse
7)Soundproof material for partitions
8)Unbreakable material for glazing windows,roof glazing
Name:Polycarbonate Multi-wall Sheet
Specifications:
| No. | Description | Dimension | Standard Color | Quantity 40'ft (pcs) | |||
| Thickness (mm) | Width (mm) | Length (mm) | Weight (kg/M²) | ||||
| 1 | PC hollow sheet (2-wall) | 4 | 2100 | 5800 | 0.8 | Clear, Opal, Bronze, Lake Blue, Green, Blue | 1100 |
| 2 | PC hollow sheet (2-wall) | 6 | 2100 | 5800 | 1.2 | 750 | |
| 3 | PC hollow sheet (2-wall) | 8 | 2100 | 5800 | 1.4 | 550 | |
| 4 | PC hollow sheet (2-wall) | 10 | 2100 | 5800 | 1.6 | 440 | |
| 5 | PC hollow sheet (3-wall) | 10 | 2100 | 5800 | 1.9 | 440 | |
| 6 | PC hollow sheet (3-wall) | 12 | 2100 | 5800 | 2.1 | 380 | |
| 7 | PC hollow sheet (3-wall) | 14 | 2100 | 5800 | 2.3 | 315 | |
| 8 | PC hollow sheet (3-wall) | 16 | 2100 | 5800 | 2.6 | 275 | |
| 9 | PC hollow sheet (4-wall) | 6 | 2100 | 5800 | 1.3 | 750 | |
| 10 | PC hollow sheet (4-wall) | 8 | 2100 | 5800 | 1.6 | 550 | |
| 11 | PC hollow sheet (4-wall) | 10 | 2100 | 5800 | 1.8 | 440 | |
| 12 | PC hollow sheet (4-wall) | 12 | 2100 | 5800 | 2 | 380 | |
| 13 | PC hollow sheet (4-wall) | 14 | 2100 | 5800 | 2.3 | 315 | |
| 14 | PC hollow sheet (4-wall) | 16 | 2100 | 5800 | 2.6 | 275 | |
| 15 | PC hollow sheet (4-wall) | 18 | 2100 | 5800 | 2.9 | 245 | |
Note: Special colors and specifications can be customized.
Material: Grade A--virgin material . Grade B --- first class recycled material .
Max Width: 2100mm
Packing: Both sides covered with PE protective film
Technical Features:
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
Certification
Project
More Pics
GUANGZHOU BEGREEN PLASTIC ARTICLES CO., LTD is an enterprise specialized in producing various plastic articles. We take plastic sheets, especially polycarbonate(PC) sheet as the main items and also process thermoplastic products. We have accumulated rich experience in the polycarbonate sheet market. We know well the market demands and how to develop and promote new related products. Now we have been cooperating with international renowned equipment and material suppliers to produce PC multi-wall sheet, PC solid sheet, PC embossed sheet, PC skylight, PC DIY awning/canopy, PC carport, PC greenhouse and matched accessories for projects.
Our PC sheet features excellent properties of good light transparency, high impact resistance, anti-aging, sound & heat insulation, light weight and beautiful appearance etc. Nowadays PC hollow sheet, PC solid sheet have been widely used in architectural lighting series of large-scale projects, for instance, sunshades for stadiums, airport, hotel and bus shelters, and sound & heat insulation screen for expressways and houses. They have been also widely applied as the "urban furniture" materials, for instance, advertising lamp boxes, shelter for Bank ATMs, Eco-garden restaurants, lighting for corridors, passages and subway entries, all kinds of shapes solarium and smoking shelters, flashing of home balconies etc. With the rapid development of modern agriculture and aquaculture industry, PC sheet has become a new kind of material for greenhouse and shade canopies.
