Corrugated Polycarbonate/Plastic Sheet As Roof Tile

FOB Price

Negotiable / Piece

500 Pieces(Min. Order)

Port Guangzhou Shenzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	BEGREEN / FREESKY
Model Number	PCT760-76-16(2.5mm)

Product Description

Specifications

Corrugated roofing sheet
PC roofing sheet
Light wieght & UV Protection
Impact resistance
Anti-aging & Fire retaedant

Corrugated roofing sheet

has been very popular world-wide for its following outstanding performances :

Features :

Light weight: its light weight offers significant savings interms of transportations,handling,

& installation

UV-Protection : 50 micron

Impact capacity: It has outstanding impact resistance over a wide temperature range

-40°C — +120°C ,and also prolonged outdoor exposure

Weather ability:As a roof glazing material ,it is subject to extremes of weather ,storms ,hail-stones,wind ,snowfalls & ice formation.

Under these conditions ,the product is virtually unbreakable and capable of withstanding the subsequent temperature change to sunny conditions with breaking or bucking

Fire retardant : flame retardant rating is up to grade B1

Temperature service: -40°C — +120°C

Sound & Heat Insulation

Environment protection : Recycable,colorless,tasteless,smokeless,nontoxic

Speciafications :

Thickeness : 0.8mm,1.0mm,1.3mm,1.5mm,2.0mm,3.0mm

Wildth : 760mm,840mm,930mm

Length : Flexible

Color : clear,white,blue,green,bronze

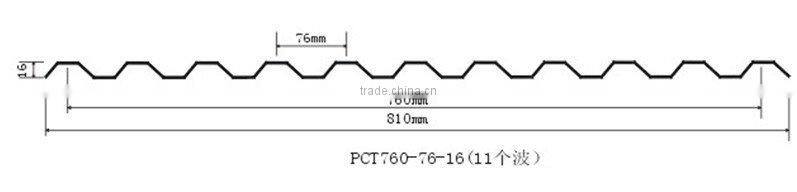

Width & Profiled : 720mm,930mm,1120mm round wave,820mm trapezoidad wave

Applications:

Factories,warehouses,carports,agricultural and trading markets,road fences,balconies and heat-insulation shed,etc.

corrugated roofing sheet,transparent roofingtile

Corrugated Sheet

Specifications

corrugated polycarbonate sheet
1. produced from 100% virgin Bayer material
2. 10-year quality guarantee
3. uv coated
4.OEM

Product Details:

Thickness(mm)	0.8mm, 1.0mm, 1.2mm,1.5mm
Width	Check the pic above
Length(mm)	no limit
Color	clear(transparent), milky white, green, blue, bronze
Weight	from 0.75 kgs/sqm to 1.70 kgs/sqm according to thickness
Lead time	7-10days for one full container after receiving 30% deposit by T/T
MOQ	1000sqm
Packing details	both sides with PE pretective film and waterproof tape

Material Characteristics:

No.	Characteristics	Unit	Data
1	Impact Strength	J/m	850
2	Light Transmission	%	85
3	Specific Gravity	g/cm3	1.2
4	Coefficient of Thermal	mm/m °c	0.065
5	Service Temperature	°c	-40 to +120
6	Heat Conductivity	W/m2°c	2.3-3.9
7	Tensile Strength	N/mm2	>60
8	Flexural Strength	N/mm2	100
9	Modulus of Elasticity	MPa	2400
10	Tensile Stress at Break	MPa	>65
11	Elongation at Break	%	100
12	Specific Heat	kj/Kgk	1.17
13	Heat Deflection Temperature	°c	140
14	Effect of Soundproof	dB	3 - 4

Product Features:

1. Light trasmission: up to 85%

2. Impact resistance: 80 times that of glass, 15 times that of acrylic sheeting.

3. Temperature resitance range: -40 to 120 Celsius Degree.

4. Light weight: only 1/12 ofthe weight of glass with same thickness.

5. Ultraviolet resistance: with UV protective layer.

6. Flame resistance: B1 grade

7. Sound and Heat proof

Application:

1. Windshield

2. Telephone booth

3. Advertisement signboard

4. Billboards on lamp boxes

5. Instrument safety panel

6. LED screen

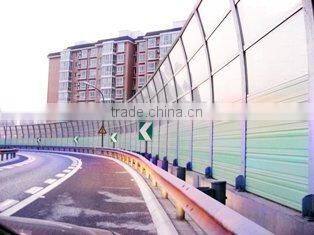

7. Expressway sound insulation panel

8. Lighting and partition walls for banks, hospitals and stations

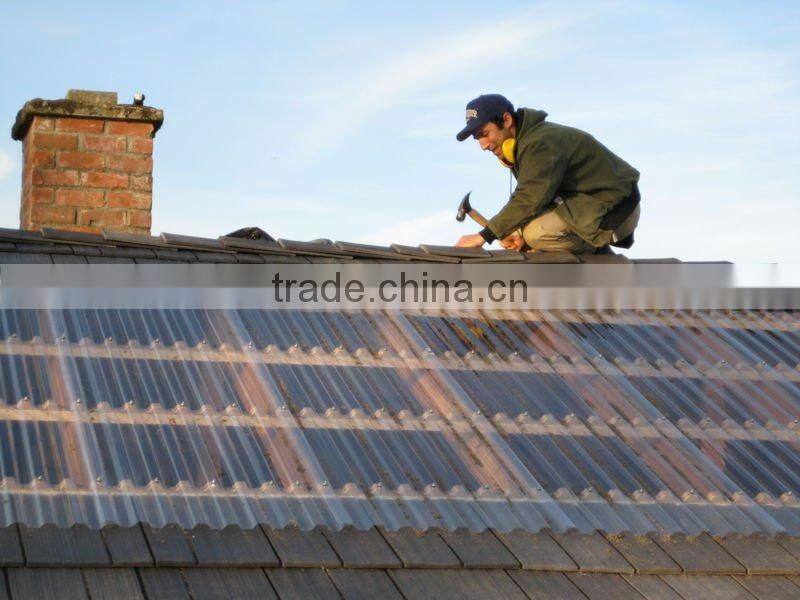

9. Carport, Greenhouse, Veranda, Patio roof covering

Features:

Light Transmission,Weathertstripped,Impact Resistance,Fire Retardance,Lightweigh

Projection

Company Information

GUANGZHOU BEGREEN PLASTIC ARTICLES CO., LTD is an enterprise specialized in producing various plastic articles. We take plastic sheets, especially polycarbonate(PC) sheet as the main items and also process thermoplastic products. We have accumulated rich experience in the polycarbonate sheet market. We know well the market demands and how to develop and promote new related products. Now we have been cooperating with international renowned equipment and material suppliers to produce PC multi-wall sheet, PC solid sheet, PC embossed sheet, PC skylight, PC DIY awning/canopy, PC carport, PC greenhouse and matched accessories for projects.

Our PC sheet features excellent properties of good light transparency, high impact resistance, anti-aging, sound & heat insulation, light weight and beautiful appearance etc. Nowadays PC hollow sheet, PC solid sheet have been widely used in architectural lighting series of large-scale projects, for instance, sunshades for stadiums, airport, hotel and bus shelters, and sound & heat insulation screen for expressways and houses. They have been also widely applied as the "urban furniture" materials, for instance, advertising lamp boxes, shelter for Bank ATMs, Eco-garden restaurants, lighting for corridors, passages and subway entries, all kinds of shapes solarium and smoking shelters, flashing of home balconies etc. With the rapid development of modern agriculture and aquaculture industry, PC sheet has become a new kind of material for greenhouse and shade canopies.
