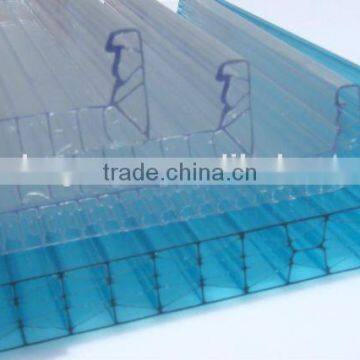

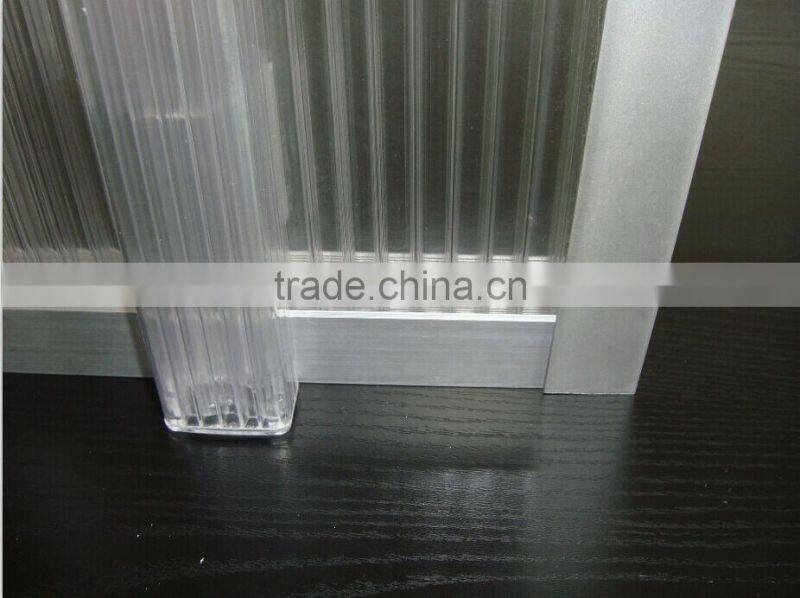

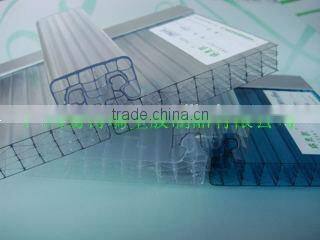

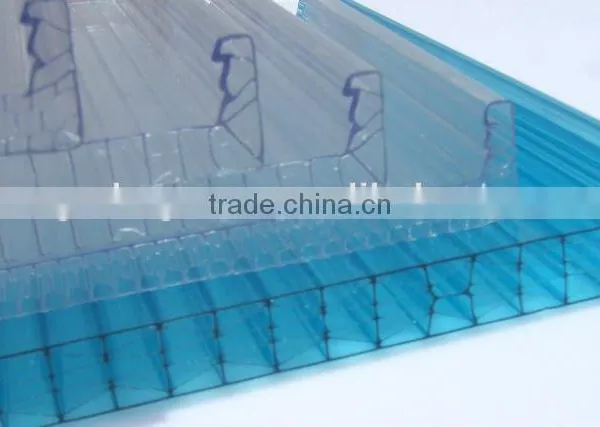

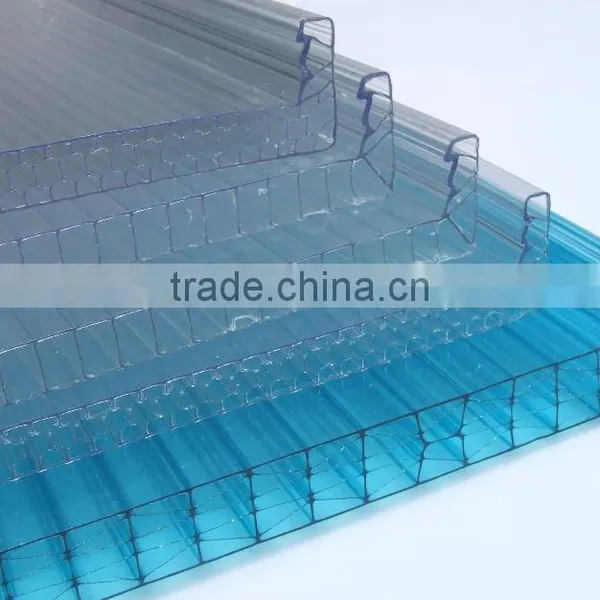

Name:Polycarbonate Multi-wall Sheet
Specifications:
Name:U-sheet
Size:60cm/80cm*580cm
Thickness:8,10,12,14,16,18mm
Color:clear,bronze,blue,green,white
Section:Honeycomb,rectangle, rhombic
Material: Grade A--virgin material . Grade B --- first class recycled material . Note: Special colors and specifications can be customized.
Max Width: 2100mm
Packing: Both sides covered with PE protective film
Technical Features:
| 1) Impact strength: | 850J/m. About 200-350 times of common glass. |
| 2) Light weight: | About 1/2 times of glass of the same thickness. |
| 3) Light transmission: | 80%-92% for different thickness of clear color |
| 4) Specific gravity: | 1.2 g/cm3 |
| 5) Coefficient of thermal expansion: | 0.065 mm/m° C |
| 6) Temperature range: | -40° Cto 120° C |
| 7) Heat conductivity: | 2.3-3.9 W/m2 º |
| 8) Tensile strength: | >=60N/mm2 |
| 9) Flexural strength: | 100N/mm2 |
| 10) Heat deflection temperature | 140 ° C |
| 11) Modulus of elasticity: | 2, 400mPa |
| 12) Tensile street at break: | >=65mPa |
| 13) Elongation at break: | >100% |
| 14) Specific heat: | 1.16J/kgk |
| 15) Soundproof index: | 4mm-27dB,10mm-33dB |
Certification
Project
More Pics
GUANGZHOU BEGREEN PLASTIC ARTICLES CO., LTD is an enterprise specialized in producing various plastic articles. We take plastic sheets, especially polycarbonate(PC) sheet as the main items and also process thermoplastic products. We have accumulated rich experience in the polycarbonate sheet market. We know well the market demands and how to develop and promote new related products. Now we have been cooperating with international renowned equipment and material suppliers to produce PC multi-wall sheet, PC solid sheet, PC embossed sheet, PC skylight, PC DIY awning/canopy, PC carport, PC greenhouse and matched accessories for projects.

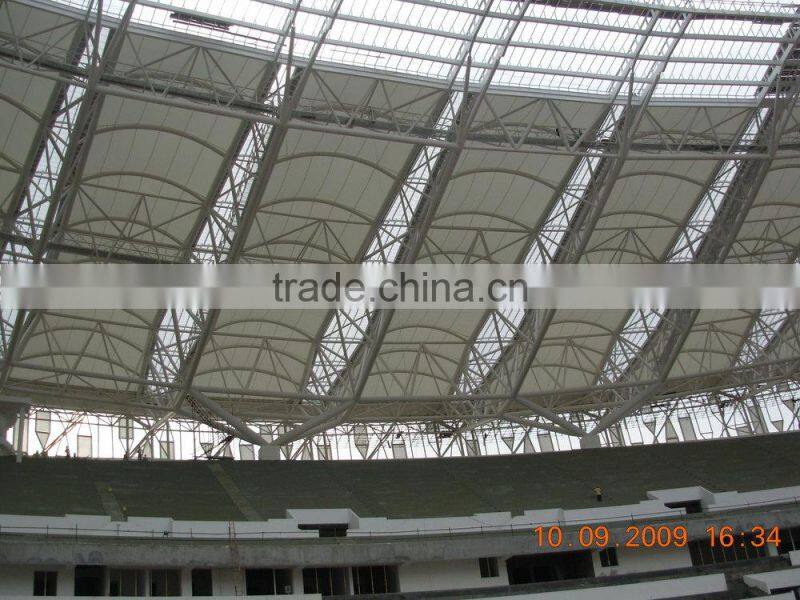

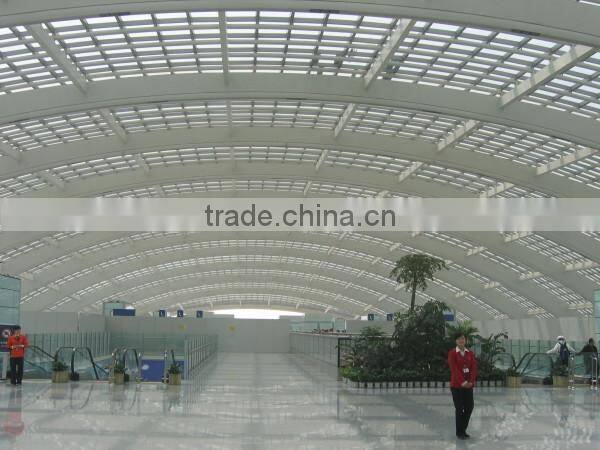

Our PC sheet features excellent properties of good light transparency, high impact resistance, anti-aging, sound & heat insulation, light weight and beautiful appearance etc. Nowadays PC hollow sheet, PC solid sheet have been widely used in architectural lighting series of large-scale projects, for instance, sunshades for stadiums, airport, hotel and bus shelters, and sound & heat insulation screen for expressways and houses. They have been also widely applied as the "urban furniture" materials, for instance, advertising lamp boxes, shelter for Bank ATMs, Eco-garden restaurants, lighting for corridors, passages and subway entries, all kinds of shapes solarium and smoking shelters, flashing of home balconies etc. With the rapid development of modern agriculture and aquaculture industry, PC sheet has become a new kind of material for greenhouse and shade canopies.
GUANGZHOU BEGREEN PLASTIC ATICLES CO.,LTD
Address: First floor of Building D. Shenjing Industrial park.No.20, Section 2, Industry Rd.Jiahe Wanggang . Baiyun District. Guangzhou. China 510440
Tel: 0086-20-36743386 Fax: 0086-20-36743389 Skype:begreengz Mobile:15017541361 Gmail:gzbegreen
Contact:Rita
