Diy Handcart by OD 28mm Plastic Coated Steel Pipe

US$ 0.1 - 2 MOQ: 1 Set

Key Specifications

Brand Name:

Model Number:

Usage:

Industrial

Wuxi Gujia Hardware Products Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Brand Name GJ

Model Number HC

Usage Industrial

Structure Other, by diy

Material Other, lean tube+metal joints

Wheel Four-wheel

Product Description

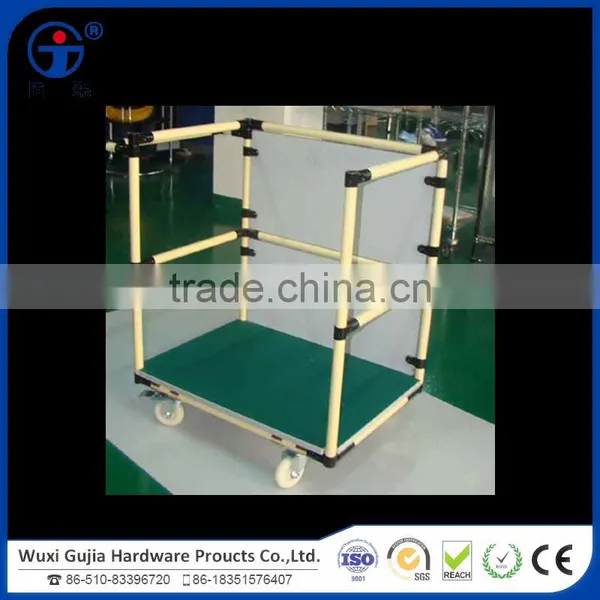

Details for hand truck / handcart
Components of hand truck / handcart: lean pipe+metal joint(clamp)+caster
lean pipe:
Material:	Extruded plastics (Outside ) + Galvanized Steel tube (Middle) + Antirust Coat (Interior)
Technics:	Cold Rolled
Degree of hardness:	90
External diameter:	28.0mm
Internal diameter:	21.6mm-24mm
Thickness of steel tube:	0.8mm ,1.0mm,1.2 mm,1.5mm, 2.0mm
Main Color:	Beige/White/Black (or depends on requiments)
Standard length:	4000mm
Application:	To assemble rack and worktable,handcart, storage shelving, assembly line, logistics container,warehouse shelving,light or medium duty shelving,shelving racks etc.
Weight:	0.8mm-0.52kg/m,1.0mm-0.67kg/m,1.2mm-0.80kg/m
Loading capacity :	0.8mm-50kg/m,1.0mm-60kg/m,1.2mm-90kg/m,1.5mm-110kg/m,2.0mm-150kg/m
package	10pcs per bundle / wrapped with film, or depends on buyer's requirement.

Metal pipe joint
PN no.
Technics:	cold rolled steel plate
thickness:	2.3mm
Surface treatmet:	electrophoresis / zinc plated /chrome plated
Application:	pipe rack connector
Packing:	100pcs /box
Weight:	9-13kg/box
MOQ:	100 set
Price:	0.3-2.0 USD /set

flat plate caster	PN:
1.material:	PU
2.Diameter:	3"-5"(75mm-125mm)
3.wheel thickness(thread):	30mm
4.caster installation height:	100mm-160mm(4"-6.26")
5.loading capacity:	100kg-135kg
6.bolt hole:	M8*40mm
lor:	black or red
8. Direction:	fixed or swivel
9. brake or lock	with or without
10.package	45pcs/carton,carton size 33.52632cm,G.W.:19.5kg/carton
11.application	applied to moving products,such as handtruck,workbenches,scaffold,handcart,storage cart,push cart etc.

Stem caster	PN:
1.material:	PU
2.Diameter:	3"-5"(75mm-125mm)
3.wheel thickness:	30mm
4.caster installation height:	100mm-158mm+-2mm(4"-6.26")
5.loading capacity:	100kg-135kg
6.bolt post:	M16*60mm
lor:	black or red
8. Direction:	fixed or swivel
9. brake or lock	with or without
10.package	45pcs/carton,carton size 33.52632cm,G.W.:19.5kg/carton
11.application	applied to moving products,such as handtruck,workbenches,scaffold,handcart,storage cart,push cart etc.
