Specifications
1,Vapor Permeable Membrane /Waterproof Roofing film2,Good air permeability
3,Good pull
4,CE certification
5,Green environm
vapor Permeable Membrane /Waterproof Roofing film
1), Introduction of Waterproof Breathable Membrane

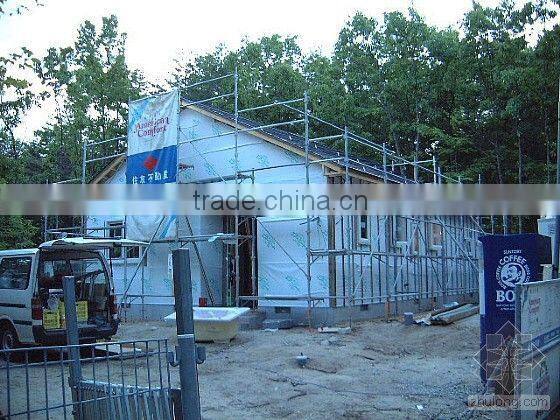

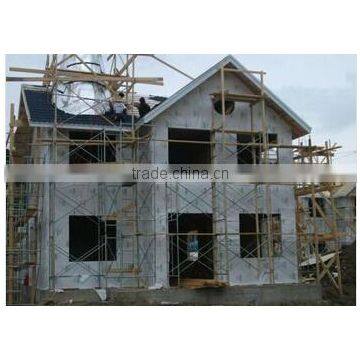

- Breathable Membrane is a water resistant membrane but with high vapour permeability, use as diffusion open roofing felts under pitched roof tile or vapour permeable barrier housewraps on timber frame walls
- Breather membrane functions as a weather-resistant barrier, preventing rain from getting into the roof or wall assembly while allowing water vapor to pass to the exterior.
- Breather membrane may also serve as an air barrier if it is sealed carefully at seams.
- Breathable Membrane have good "water resistance", good "water vapor permeability", and good "air barrier properties".
4), Performance of Breathable Membrane:

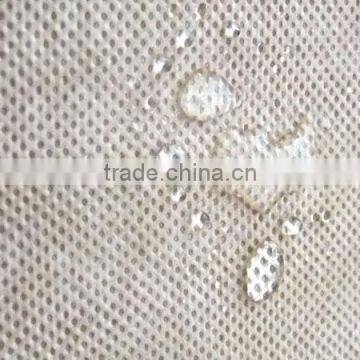

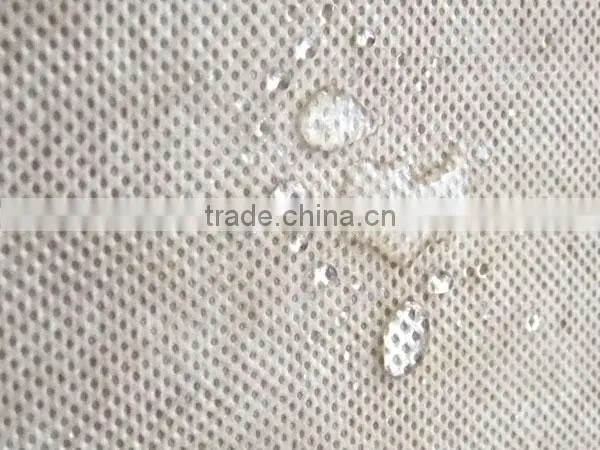

Resist liquid water passing through, but allow water vapour to pass through.
5), Structure of Breathable Membrane:
All SHANQUAN vapour permeable membranes are 3 layers thermal laminated:
PP non-woven fabric + PE fuctional film + PP non-woven fabric
Spun-bonded polypropylene non-woven fabric layers for protection and reinforcement.
Micro-porous polyethylene film is the functional layer which is water-resistant but allow water vapour to pass through.
PRODUCT SPECIFICATION
| Product Name | Breathable House Wrap / Weather Protection Barrier | |
| Raw Material | PP + Polyester | |
| Standard Weight | 80gsm, 90gsm, 95gsm, 100gsm, 115gsm, 120gsm, 140gsm, 160gsm. | |
| Standard Width | 1.5m (+/-1%) | |
| Standard Length | 50m or upon customer's requested. | |
| Water Vapor Transmission Rate | 95gsm/115gsm | 80,90,100,120,140,160 gsm |
10-20 | 2250g/sqm.24h | |
| UV Resistant | more than 3month | |

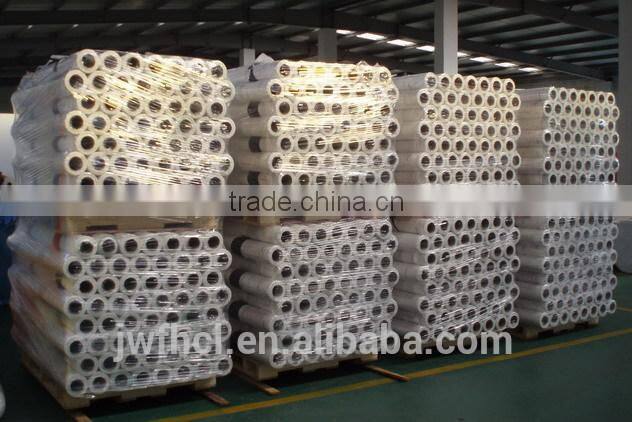

| Packaging | 1.Each roll in a plastic bag | |
| Wall Breathable Wrap | Breathable Membrane for Building | |
| HouseWrap for Roofing | HouseWrap for Roofing |
Our Breathable membrane mainly used as underlay for pitched roof and enclosure protection for insulation layer of wall.
FEATURE:
- Completely waterproof: As it provides the building's exterior with superior waterproofing functions, it improves the building's durability.
- Enhancement of energy efficiency: With superior waterproof and windproof properties, it increases the efficiency of air cooling and heating of the house, thereby offering great energy savings.
- Superior humidity permeability: As moisture inside building is effectively allowed to permeate outward, it prevents the degradation of the building due to moisture.
- Prevention of ultraviolet rays: Using UV processed film to prevent oxidization due to the exposure to ultraviolet rays during the building's construction period, it maximizes the durability of the building.
- Environment-friendly: It has superior durability and can be used for a long time with a single implementation, making it environment-friendly.
- Easy to cut and install: Lightweight and easy to cut, it is easy to work during the building construction.
USAGE

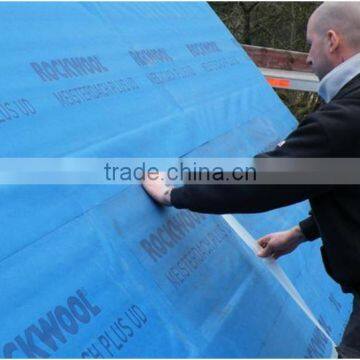

The purpose of the membrane is to allow water vapour to permeate through from the insulation into the cavity above and yet prevent water from the cavity entering the quilt. Breather membranes are installed over the top of quilt insulation and below the external profiled sheet.
