Specifications
light shipment machinery with a single bucket,loading blasting-down rock or ore by caving into the tramcars.Rock Loader :

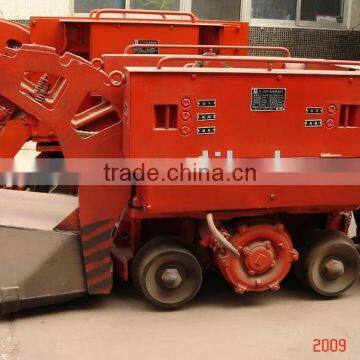

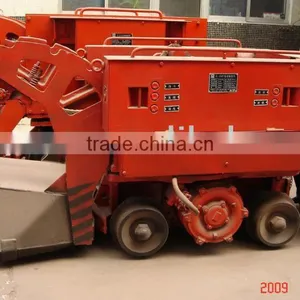

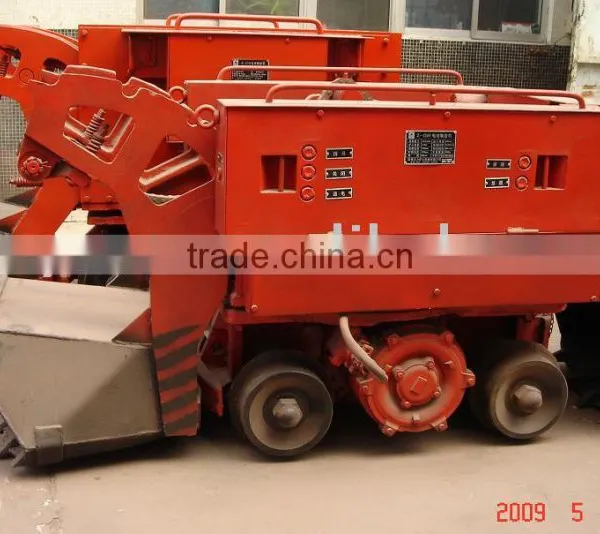

Electric Rock Loader without steel wire ropes is the light shipment machinery with a single bucket,its use is to load blasting-down rock or ore by caving into the tramcars,in order to realize mechanized loading. It is suitable for level or slope less than 8 degrees,prospecting or excavation laneways with the small section ( 2m X 2.2m ). Loadable materials include a wide range of materials such as metal ores, general rock , sand and salt . Loadable rock diameter can be up to 500mm and it has the highest efficiency in diameter of 200 to 300 mm. The machine is damp-proof, dripping-proof and non-explosion-proof suitable for dry and damp areas.
Z-17AW | Z-20 | Z-20W | Z-45 | Z-30AW | ZQ-26 | ||
Loading capacity m3/h | 20-30 | 30-40 | 30-40 | 60-70 | 50--60 | 40-50 | |
Bucket volume m3 | 0.17 | 0.20 | 0.20 | 0.45 | 0.30 | 0.26 | |
Loading width (m) | 1.7 | 2.0 | 2.0 | 2.8 | 2.2 | 2.7 | |
Track distance (mm) | 600(optional 750 or 762 | ||||||
energy | Electric | Compressed air | |||||
power | engine | Wind motor | |||||
Moving motor power kw | 10.5 | 10.5 | 10.5 | 18.5 | 15 | 10.5 | |
Bucket motor power kw | 10.5 | 10.5 | 13 | 15 | 15 | 15 | |
Unloading height(mm) | 1250 | 1330 | 1360 | 1500 | 1370 | 1250 | |
Outside diamension mm | length | 2120 | 2480 | 2400 | 2630 | 2620 | 2375 |
width | 1011 | 1210 | 1330 | 1500 | 1300 | 1380 | |
Full spread height | 1920 | 2180 | 2180 | 2500 | 2260 | 2240 | |
height | 1200 | 1518 | 1460 | 1565 | 1545 | 1455 | |
Mass weight kg | 3760 | 3750 | 3700 | 5100 | 4600 | 2700 | |
