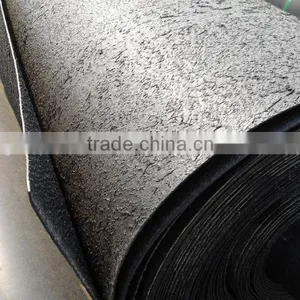

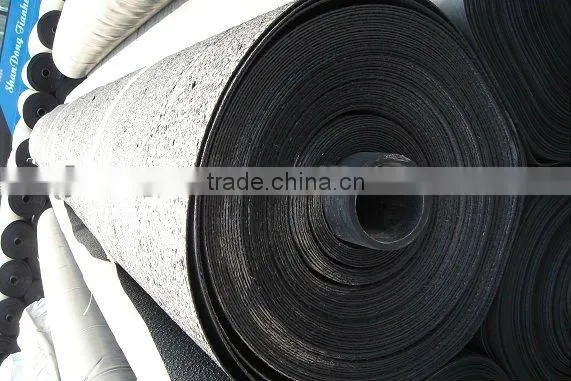

Help Center1.5mm-3mm ASTM Standard Textured HDPE Geomembrane
Related Products
Specifications
Premium grade linear high density polyethylene (HDPE) geomembrane liner that has a textured surface on one or two sides

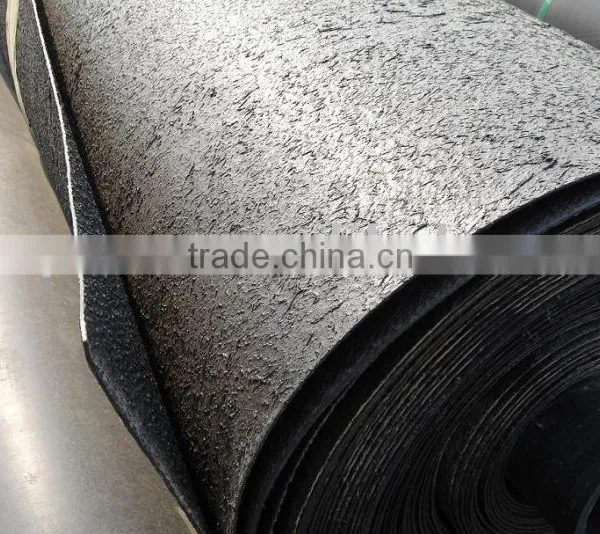

Textured geomembrane is a premium grade linear high density polyethylene (HDPE) geomembrane liner that has a textured surface on one or both sides of the liner. It is a coextruded, textured liner, with the textured surface as an integral part of a three layer co-extruded geomembrane sheet. Our textured geomembrane is available with width lor can be customerized.
Tech date attached
High Density Polyethylene (HDPE) Geomembrane - Textured
Properties |
Test Method |
Test Value |
Testing Frequency (minimum) |
||||||
0.75 mm |
1.00 mm |
1.25 mm |
1.50 mm |
2.00 mm |
2.50 mm |
3.00 mm |
|||
|
Thickness mils (min. ave.) lowest individual for 8 out of 10 values lowest individual for any of the 10 values |
D 5994 |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
nom.(-5%) -10% -15% |
per roll |
Asperity Height mils (min. ave.) (1) |
GM 12 |
0.25 mm |
0.25 mm |
0.25 mm |
0.25 mm |
0.25 mm |
0.25 mm |
0.25 mm |
every 2nd roll (2) |
Density (min. ave.) |
D1505 /D 792 |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
0.940 g/cc |
90,000 kg |
|
Tensile Properties (min. ave.) (3) yield strength break strength yield elongation break elongation |
D 6693 Type IV |
11 kN/m 8 kN/m 12% 100% |
15 kN/m 10 kN/m 12% 100% |
18 kN/m 13 kN/m 12% 100% |
22 kN/m 16 kN/m 12% 100% |
29 kN/m 21 kN/m 12% 100% |
37 kN/m 26 kN/m 12% 100% |
44 kN/m 32 kN/m 12% 100% |
9,000 kg |
Tear Resistance (min. ave.) |
D 1004 |
93 N |
125 N |
156 N |
187 N |
249 N |
311 N |
374 N |
20,000 kg |
Puncture Resistance (min. ave.) |
D 4833 |
200N |
267 N |
333 N |
400 N |
534 N |
667 N |
800 N |
20,000 kg |
Stress Crack Resistance (4) |
D 5397 (App.) |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
300 hr. |
per GRI GM10 |
Carbon Black Content (range) |
D 1603 (5) |
2.0-3.0 % |
2.0-3.0 % |
2.0-3.0 % |
2.0-3.0 % |
2.0-3.0 % |
2.0-3.0 % |
2.0-3.0 % |
9,000 kg |
Carbon Black Dispersion |
D 5596 |
note (6) |
note (6) |
note (6) |
note (6) |
note (6) |
note (6) |
note (6) |
20,000 kg |
Oxidative Induction Time (OIT) |
D 3895 D 5885 |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
100 min. 400 min. |
90,000 kg |
|
Oven Aging at 85°C (7),(8)
|
D 5721 D 3895 D 5885 |
55%
80% |
55%
80% |
55%
80% |
55%
80% |
55%
80% |
55%
80% |
55%
80% |
per each formulation |
UV Resistance (9) |
GM11 D 3895 D 5885 |
N.R. (10) 50% |
N.R. (10) 50% |
N.R. (10) 50% |
N.R. (10) 50% |
N.R. (10) 50% |
N.R. (10) 50% |
N.R. (10) 50% |
per each formulation |
