Specifications
Stainless Steel Wire MeshMaterial:302,304,304L,316,316L
Mesh:1 to 635 mesh
Wire diameter:2.03 to 0.0203mm
LxW:1x30m

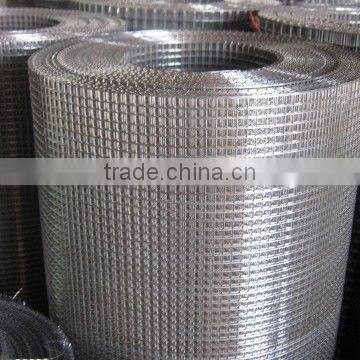

Stainless steel wire cloth
1 Normal Material:
302, 304, 304L, 316, 316L
2 Mesh: 1 – 635 mesh
3 Wire diameter: 2.03mm – 0.0203mm
4 Size:
Standard size: width x length 1x 30m
Width: 0.5m – 4m
Length: 25m – 100m
5 Packing: Water Proof Paper, wooden Crate.
6 Weaving patterns:
<1>Stainless steel wire cloth plain woven
<2>Stainless steel wire cloth twill woven
Stainless Steel Wire Mesh Plain weave is the most commonly used weave. Each warp wire crosses alternately above and below each weft wire. Warp and weft wires generally have the same diameter.
Twill Weave Stainless Steel Wire Mesh is made by each weft wire passing alternately over two, and then under two successive warp wires and each warp wire passing alternately over two and under two successive weft wires. It is possible to be used to allow a heavier than standard wire diameter.
7 Use:
Stainless steel wire mesh and stainless steel wire cloth products are widely used in petroleum, chemical industry, environment protection, mine, airspace, paper-making, electronic, metallurgy etc. Special size and specification are available according to customers' requirement.
