Double Twisted Barbed Wire (factory)

Double Twisted Barbed Wire (factory) photo-1
US$ 500 - 900 MOQ: 10 Tons
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Honsen
Model Number:
HSwm-2424
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name Honsen
Model Number HSwm-2424
Material Iron Wire
Surface Treatment Galvanized
Type Barbed Wire Coil
Razor Type Single Razor

Specifications

Barbed iron wire(14 years factory)
1,ISO9001&14001
2,wire dia:BWG8-17
3,Barb length:1.5-3cm
4,FOB:500-900/T

Double Twisted Barbed Wire (14 years factory)



Barbed Wire Overview

Classified into PUMA, MOTTO and IOWA types, barbed wire is actually produced mostly in IOWA types. Materials applies include galvanized steel and plastic coated carbon steel.

Galvanized Barbed wire

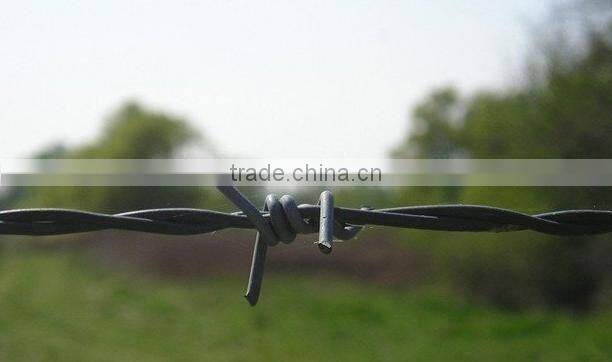

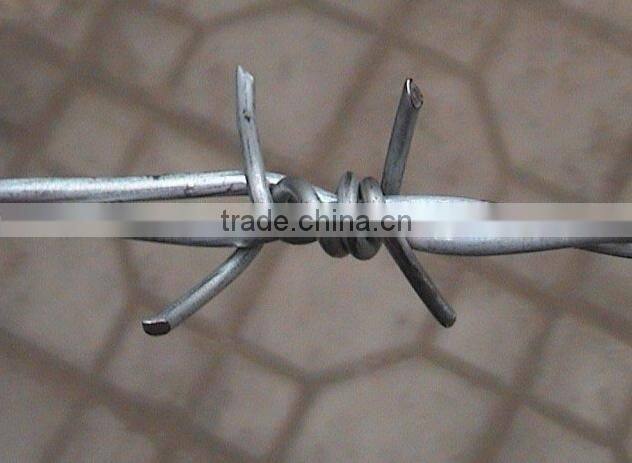

Galvanized Barbed Iron Wire in IOWA type has 2 strands and 4 points. Barbs' distance can be 3-6 inches with a tolerance at 1/2" less or more.

Galvanized Barbed Wire is suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.

Patterns Available for Galvanized Barbed Wire:
Single Twisted Barbed Wire
Double Twisted Barbed Wire
Traditional Twisted Barbed Wire

Features: Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

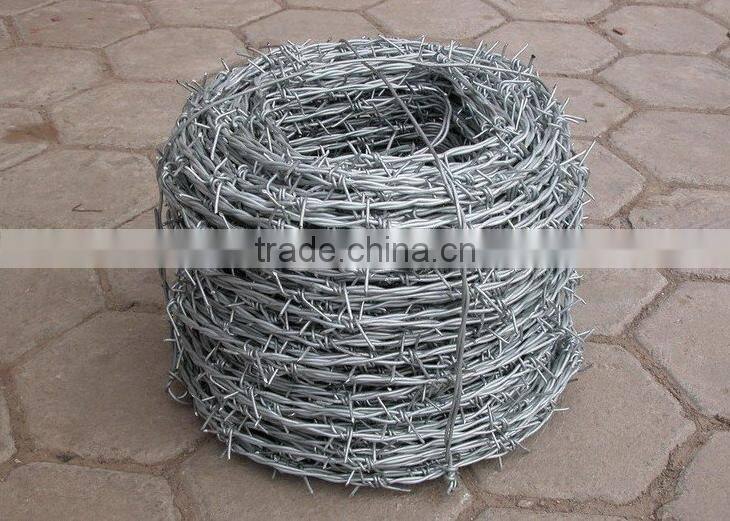

Packing: In coils.

PVC Coated Barbed Wire
We offer plastic coated barbed wire in different colors, mostly green coated.
Technical Info of PVC Coated Barbed Iron Wire:
Core of PVC Coated Barbed Iron Wire can be galvanized iron wire or black annealed iron wire.
Colors: A variety of colors like green, blue, yellow, orange, gray, is available with PVC Coated Barbed Iron Wire produced by us.
Tensile strength of Standard PVC Coated Barbed Iron Wire is 30-45 kgs./sq.mm.
Packing: In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.

Barbed Wire Uses: Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection. Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.

Barbed Wire Specification

Type

Wire Gauge (SWG)

Barb Distance (cm)

Barb Length (cm)

Electro Galvanized Barbed Wire; Hot-dip zinc plating barbed wire

10# x 12#

7.5-15

1.5-3

12# x 12#

12# x 14#

14# x 14#

14# x 16#

16# x 16#

16# x 18#

PVC coated barbed wire; PE barbed wire

before coating

after coating

7.5-15

1.5-3

1.0mm-3.5mm

1.4mm-4.0mm

BWG11#-20#

BWG8#-17#

SWG11#-20#

SWG8#-17#



PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.
