Specifications
1.PP Biaxial Geogrid2.PP Uniaxial Geogrid,HDPE Uniaxial Geogrid
3.Fiberglass Geogrid
4.Warp Knitted Polyester Geogrid
Product Introduction

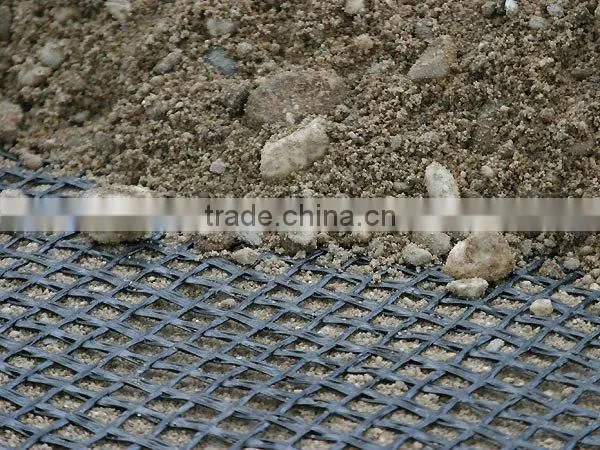

One-direction stretch geogrid is made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching. This process makes high molecule in direct line state in oblong oval net structure with uniform distribution and high node intensity.
Product Features
1. Enhance roadbed and effectively diffuse its load to improve its stability and bearing capacity and increase service life;2. Be able to bear more alternate load; 3. Prevent roadbed distortion and crack caused by the loss of roadbed materials; 4. Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase service life and reduce maintenance expense; 5. Combine anchor sprouting concrete construction method to give side slope maintenance, which not only saves investment by 30%-50% but also reduces erection time by one time or above. 6. To increase geogrid in the roadbed and surface of highways can reduce flexure, track and put off the flawing appearance by 3-9 folds and reduce the thickness of structural layer by 36%.
Product Function
One-direction stretch geogrid is kind of high strength synthetic materials. It has extensive applications in dyke, tunnel, pier, highway, railway and building.
Item |
TGDG35 |
TGDG50 |
TGDG80 |
TGDG110 |
TGDG140 |
TGDG170 |
TGDG200 |
TGDG220 |
Yield Strength, KN/m |
35.0 |
50.0 |
80.0 |
110.0 |
140.0 |
170.0 |
200 |
220 |
Elongation Ratio ,% ≤ |
10 |
|||||||
Yield Strength at 2% elongation ,KN/m≥ |
10.0 |
12.0 |
26.0 |
32.0 |
42.0 |
55.0 |
70.0 |
85.0 |
Yield Strength at 5% elongation, KN/m≥ |
20.0 |
28.0 |
48.0 |
64.0 |
80.0 |
100.0 |
120 |
140 |
Product Length/roll,(m) |
60 |
50 |
||||||
Product Width ,(mm) |
1000-1400 ,2000-2500 |
|||||||
