Help Center2 Inch Low Pressure Hammers/Middle Pressure DTH Hammers(ND25A), Low Pressure Hammer
Related Products
-
Low Price Middle-low Air Pressure DTH Hammer(NBR3A)US$ 1 - 10,000MOQ: 1 Piece -
4 Inch DTH Drill Hammer/Iron Ore Mining DTH Hammer(QL40)US$ 900 - 10,000MOQ: 1 Piece
-
10" DTH Drill Hammer/High Air Pressure Down Hole Hammer(SD10)US$ 5 - 10,000MOQ: 1 Piece
-
High Quality 4" Down Hole Drill Hammer(ND45/DHD340/COP44)US$ 900 - 10,000MOQ: 1 Piece
-
Construction Drilling DTH Hammer/Water Well Drilling Hammer/Oilfeild Drilling DTH Hammer(ND475A)US$ 9 - 10,000MOQ: 1 Piece
Specifications
Low Pressure Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life, reliable
Faster Drilling Speed and Most Advanced Air DTH Hammer:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without foot valve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
ND25A DTH Hammer Technical Data
Length (Without Bit) |
Weight (Without Bit) |
External diameter |
Bit Shank |
Hole Range |
Connection Thread |
872mm |
16.00kg |
71mm |
HD25 |
76-90 |
T42*10*1.5 |
Working Pressure |
Impact rate at 1.5Mpa |
Recommended rotation speed |
Air consumption |
||
1.0Mpa |
1.5Mpa |
||||
1.0-1.5Mpa |
25HZ |
22-35r/min |
4m³/min |
6m³/min |
|
Item Description |
Weight (kg) |
Part Number |
|

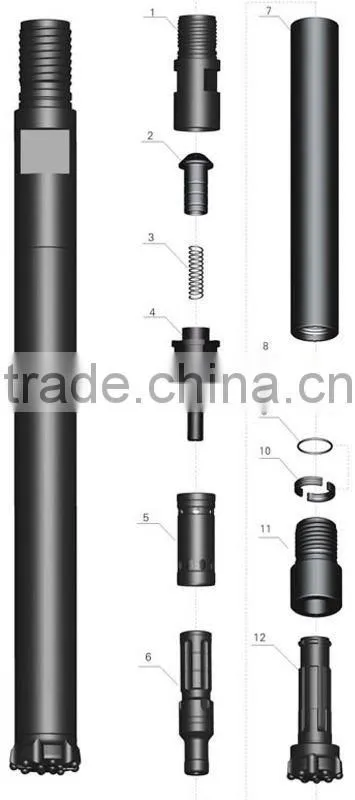

1. Top Sub 2. Check Valve 3. Spring 4. Air Distributor 5. Internal Cylinder 6. Piston 7. External Cylinder 8. Guided Sleeve 9. o Ring 10. Stop Ring 11. Drive Chuck 12. Drill Bit |
3.10 0.10 0.05 0.60 0.80 3.80 4.50 0.60 0.005 0.10 1.40 3.20 |
ND25A01 ND25A02 ND25A03 ND25A04 ND25A 05 ND25A06 ND25A07 ND25A08 ND25A09 ND25A10 ND25A11 ND25A12 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
