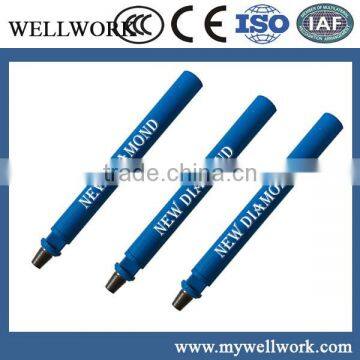

Deep Hole Drill Rig Hammer

Name: Deep Hole Drill Rig Hammer
Brand: new diamond
SKU: 141946600
Availability: InStock

Xian Wellwork Industrial Co., Ltd.

US$ 550 - 10,000 MOQ: 1 Piece

Key Specifications

Brand Name:

new diamond

Model Number:

drill rig hammer

Type:

Drill Shank

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name new diamond

Model Number drill rig hammer

Type Drill Shank

Machine Type Drilling Tool

Material Carbide

Processing Type Forging

Use Ore Mining

Place of Origin Hunan, China

Certification Other, ISO9001

Specifications

deep hole drill dth hammer :
1.efficient energy transfer
2.faster drilling speed
3.lower oil consumption
4.longer life

Product Description

deep hole drill rig hammer (manufacturer) :

1. 10 years manufacturing experience;

2. Certificate: ISO9001:2008

3. Material: Carbide

It has the following advantages:

Valveless air distribution. More reliable.
Simple design of the piston, long life.
More efficient energy transfer, faster drilling speed, lower air consumption and lower oil consumption.
Fewer internal parts, simple structure, longer life, less failure and easier to maintain because all the parts are heat treated.
Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.

Product Name:	drilling rig hammer
Description:	drilling rig hammer were used for blast hole drilling and water well drilling project. Working with DTH drilling pipe and DTH drill bit, mainly applied in Mining, Marble quarry or well drilling and other construction projects.
Quality level:	95% similarity to COP/SD/MISSION/QL/BR/DHD etc famous brand
MOQ:	No requirement for testing and trial order
Series:	COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc

Specification:	Weight (kg)	External Diameter (mm)	Connection thread	Hole rang (mm)	Impact rate	Recommended rotation speed
Low air pressure DTH hammer CIR type	5 ~22	50~180	CIR**	55~200	820 rpm
Middle air pressure BR & COP type	10~30	70~110		85~115
3 inch DTH hammer COP34/QL30 etc	24.5	81	API 2 3/8 Reg	90~110	28Hz (at 17 bar)	28 r/min
4 inch DTH hammer COP44/DHD340 etc	39.2	99	API 2 3/8 Reg	110~150	27Hz (at 17 bar)	25~40 r/min
5 inch DTH hammer COP54/Mission50 etc	71.5	125	API 2 3/8 or API 3 1/2 Reg	135~165	25Hz (at 17 bar)	20~30 r/min
6 inch DTH hammer COP64/QL60 etc	98	142	API 3 1/2 Reg	152~216	23Hz (at 17 bar)	15~25 r/min
8 inch DTH hammer COP84/SD8 etc	188	180	API 4 1/2 Reg	203~305	20Hz (at 17 bar)	15~20 r/min
