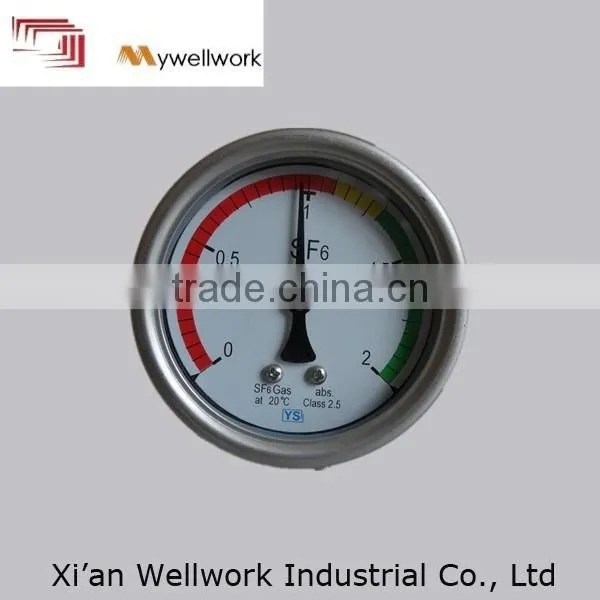

hot high degree of accuracy SF6 denisty relay with valve
- 20000 Piece / Pieces per Month
- FOB Xi'an
- T/T Credit Card
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | YS | Model Number: | MJ-II |
Usage: | Other, pressure switch electrical appliances industry |
Product Description
Specifications
1.SF6 leak detector2.Temperature compensation SF6 stainless steel leak detector.
3.beautiful appearance.
hot high degree of accuracy SF6 denisty relay with valve
Specifications
1. Sf6 Gas Density Monitor (100mm)
2.Temperature compensation SF6 leak detector
3.beautiful appearance and small volume.
Features:
1. Temperature compensated bourdon tube pressure gauge
2. Suitable for indoor or outdoor installation
3. AISI304 hermetically sealed stainless steel case
4. AISI316 parts in contact with gas
5. Indicated values and signal outputs independent of installation altitude
Application:
1. Gas Insulated Switchgear (GIS)
2. Gas Insulated Lines (GIL)
3. SF6 circuit breakers
4. Gas insulated busbar systems
Description:
These instruments are used to monitor SF6 gas density in sealed tanks. They are applied to indicate gas density and to provide a signal outputs when the density reaches preset threshold values. They are designed to monitor Medium Voltage systems.
Parameter:
Nominal size: | 63mm, 100mm |
Scale range: | -0.1 to 0.9 MPa (customizable) |
Accuracy: | 20C: Class 1.0 or 1.6; -20C to +60C: Class 2.5; -30C to -20C: Class 3.0 |
Degree of protection: | IP65 |
Ambient conditions: | -30C to +60C |
Leakage rate: | < 1*10-9 Pa.m3/s (Helium mass spectrometer) |
Pressure connector: | M20*1.5 (customized) |
Location: | Bottom or back |
Electrical connection: | Compact pluggable box with M20*1.5 cable gland |
Cable size: | 1.5mm; 2 recommended; 2.5mm maximum |
Insulation properties: | Insulation resistance >100 M (500V DC); Withstand voltage 2kV, 50/60 Hz 1 min (to case) |
Contact type: | Pointer driven magnetic snap action signal contacts; 80%Ag, 20%Ni, 10m Au plated |
Contact ratings: | 30W/50VA, 1A max; 220VDC/380V 50/60Hz max |
Window: | Safety glass |
Weight: | 1.1kg |
1.How to order goods?
Answer: The way to process goods order is: Please offer us the inquire infomation,include:Product name and Detail mode No,Purchase quanunity before send us inqurie.We will offer the proforma invoice (P/I) immediately after receiving buyer's order infomation, buyer confirm that all the details on the P/I are correct, then pay according to the payment term on the P/I, we will send out goods in four working days after we received payment,expect special model.
2.Would you offer free samples?
Answer: Normally the low cost goods (price don't more than USD5.00,such as:valve,parts) can be sent free of charge and customers just need to bear a little shipping charge, or you can provide your DHL,FEDEX,EMS,UPS courier account number to us.
3.How to pay for goods?
Answer: Basically, L/C, TT, Paypal,West Unison. please send inquire to our email for the details.
4. How to ship your order?
Answer: We usually ship small order by air, There are many international couriers for your option, such as DHL, Fedex, UPS and China EMS. If you already have account with DHL, UPS or other couriers, you can advise us in advance an we can send the goods under your account,
We usually ship large orders by sea. In general, the ocean shipment will spend more days than by air, So the shipping way is subject to your demand in advance. And customs clearance paperwork and procedures will be handled by the forwarder. In case of any additional documentation, QZ will assist the forwarder with it as much as possible.
5.Delivery time?
Answer: During four days after order confirmation....
