Economy UTP Stripper & 110 Punch Down Tool Cable Tools

Economy Twisted Pair Stripper & 110 Punchdown

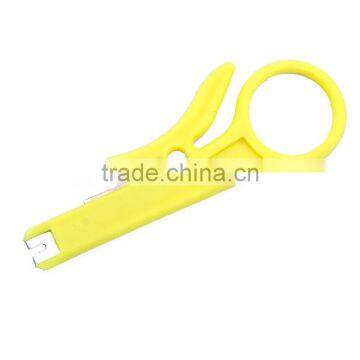

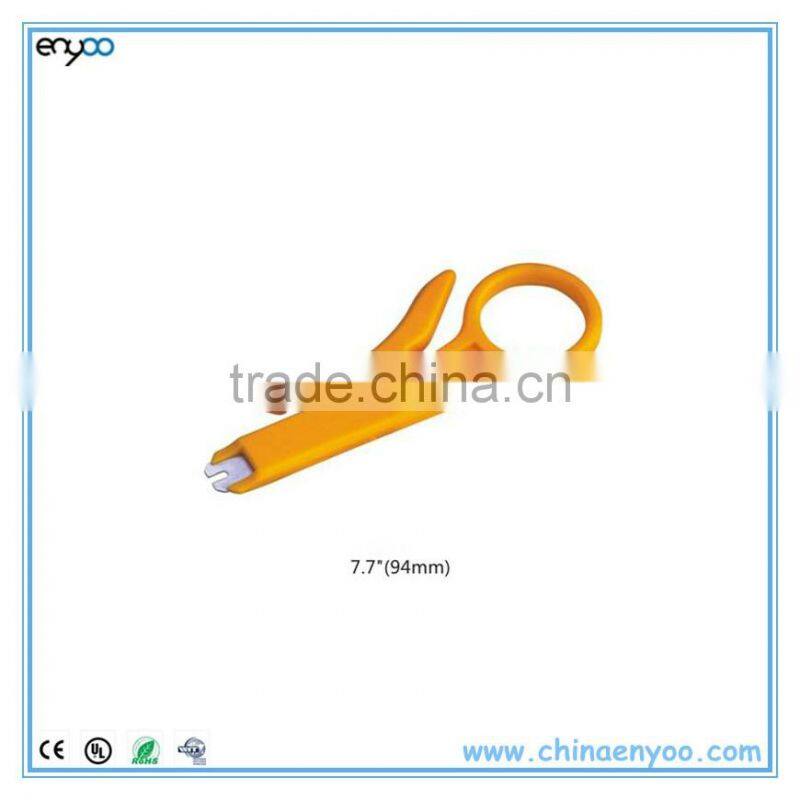

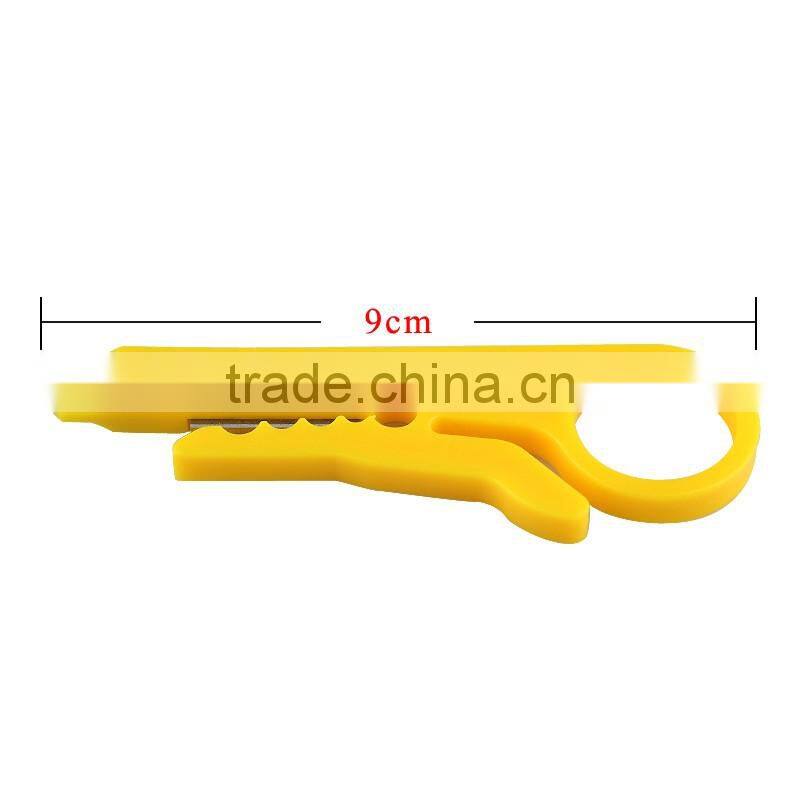

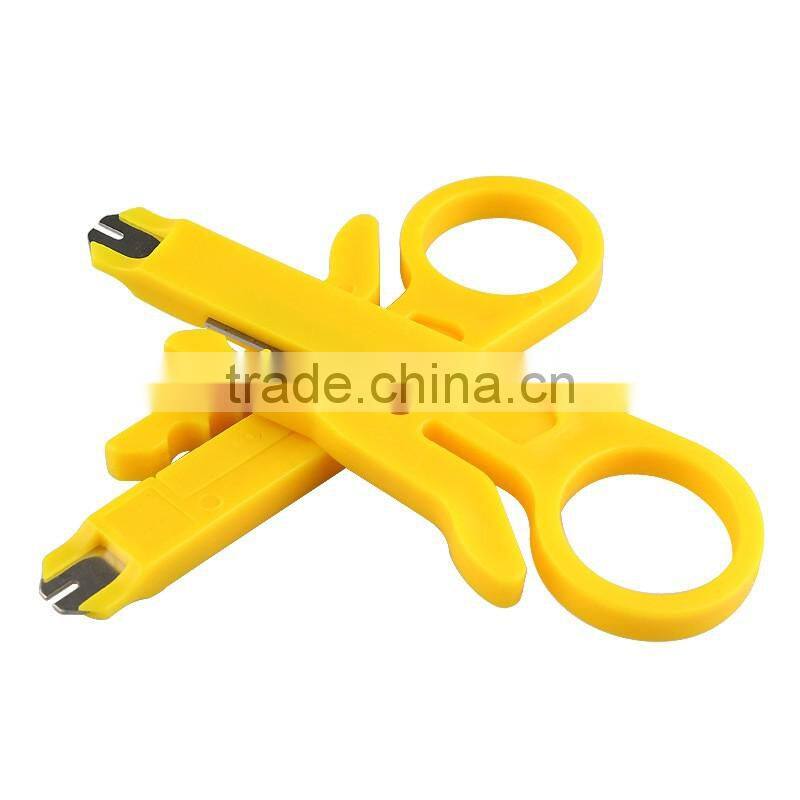

1. Photos of product

2.Products Description:

Economy Twisted Pair Stripper & 110 Punchdown

The Economy strip tool is perfect for small Ethernet installations. This tool combines a stripping blade and 110 punchdown blade in one convenient package. The economy UTP stripper tool is prefect for do-it-yourselfers. Now you can install Cat5 or Cat6 cable without buying an expensive punchdown tool and cable stripper.

Features:

• Simple to Use
• Great for Cat5 and Cat6 Cable
• Suitable for small jobs
• Multi-station stripper
• Rotary action operation
• 110 Type punchdown blade in tip

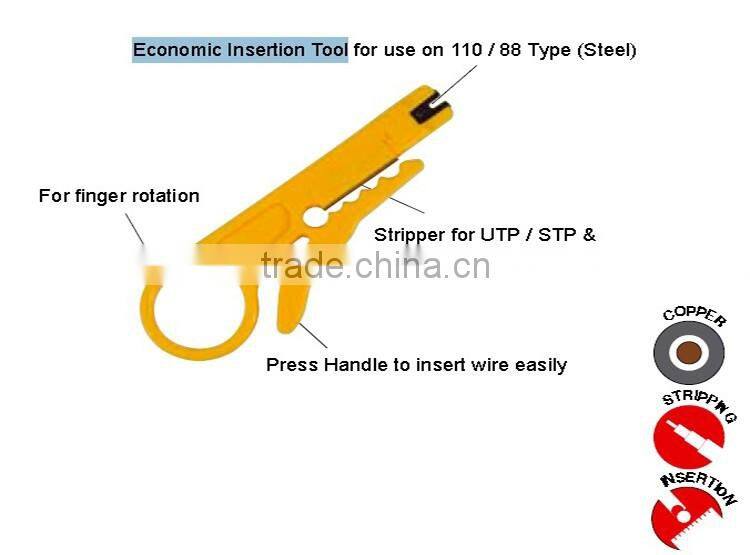

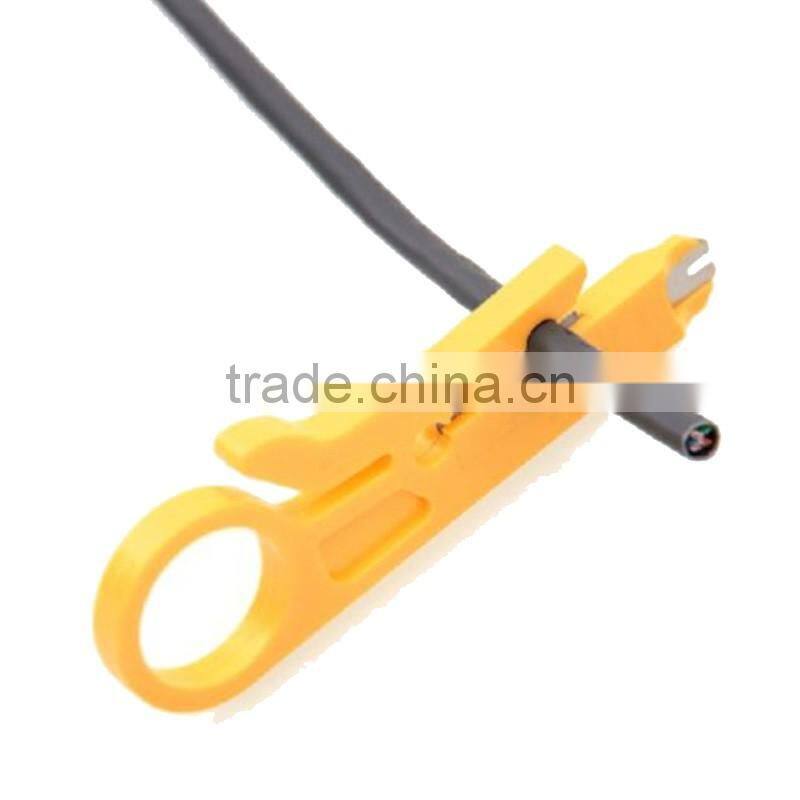

The simple design of this tool makes it very economical; this multi-use tool can be used to strip the jacket from UTP / STP cable between 5mm and 6.2mm in diameter. The steel insertion blade located at the tip can be used to punch down wires onto 110/88 type termination blocks

Features :

Strips data cables from 5mm – 6.2mm in diameter

110/88 insertion tip

Low cost

Specification :

Function: Strips round cables between 5 and 6.2mm in diameter Inserts wires into 110 style Terminal Blocks

Material: Body: ABS. Blade: Hardened Stainless Steel

Length: 95mm

Weight: 11g

Q: What’s the difference between Impact and Non-impact punchdown tools?

A: Impact Punchdown tools are designed for any volume of terminations. They are spring loaded which provides a mechanical advantage when punching. Impact punchdown tools provide most of the force required. Another advantage of an impact punchdown tool is they will give a cleaner and more consistent punch because the tool controls the force applied to the wire.

Non-Impact Punchdown Tools are designed for low volume terminations. They are a great choice for home users who only plan on installing a few lines. Unlike impact punchdown tools the user must provide all of the force required to punch, seat, and cut the wires. This can become tiresome for large installations. Non-impact tools a generally less expensive than impact tools.

Q: What is the difference between 66 punchdown block and 110 punch down block?

A: A 66 punch down block is typically used in telephone operations for connecting wires to the hubs. The 110 punch down block will typically be used in computer networking applications

3.    Certifications of Product

More product to choose

4.    Packing of Product

Packing specification:

1.package:1pcs/poly bag
2.Economic packing:1000pcs per carton
3.N.W:11KGs G.W.:12KGs
4.MEAS:52*39*38CM

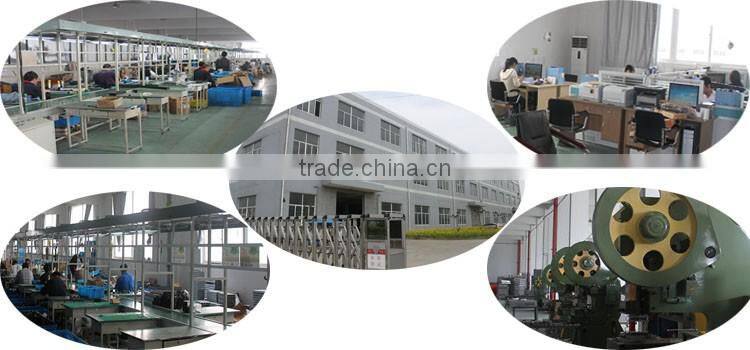

5.   Our Company View
