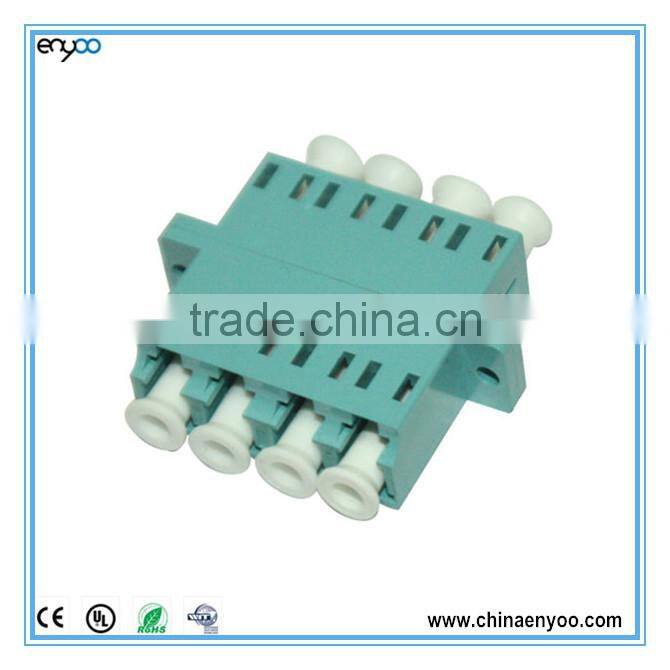

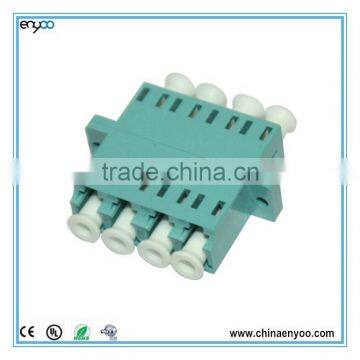

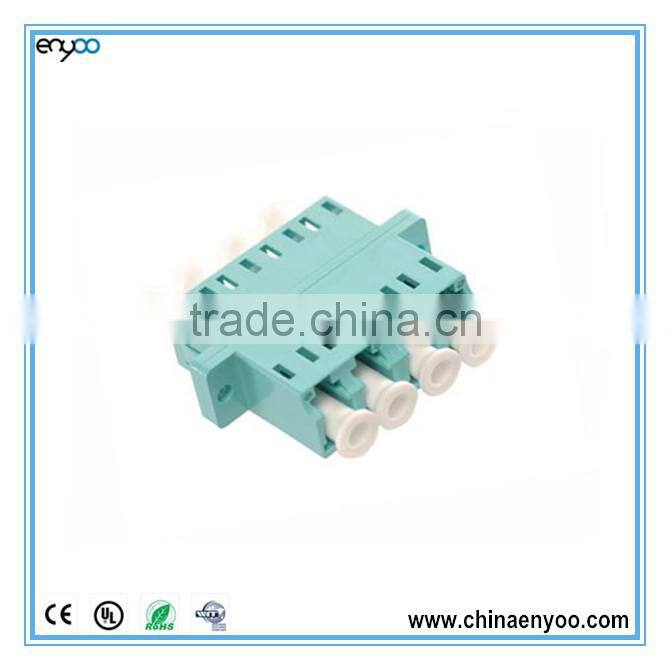

LC OM3 fiber optic adapter
Enyoo offers a range of quality LC adapters which have high precision alignment sleeves for improved reliability and better reconnectability. The LC adapters come with ceramic sleeves for singlemode and phosphor bronze sleeves for multimode. The housing is available in different colours with options for flange or flangeless body and metal, or inbuilt, clips.
LC OM3 fiber optic adapter Features
Complies with IEC 61754-20
High precision alignment sleeve
Low insertion loss and high reconnectability
RoHS, REACH SvHC compliant
Available in simplex, duplex and quad adapters
LC OM3 fiber optic adapter Applications
Telecommunications networks
CATV, LAN, MAN and WAN application
Data processing networks
Cable television
Fibre-to-the-home
Premises distribution
Technical Specification
| CERAMIC | PHOSPHOR BRONZE | CONFORMANCE | |
| Insertion Loss (Typ) | 0.1dB | 0.15dB | IEC 61300-3-4 |
| Mating Durability | 500 | IEC 61300-2-2 | |
| Receptacle Retention Force | 1N – 2.5N | IEC 61754-20 | |
| Operating temperature | -25 to +70oC, 12 cycles | IEC 61300-2-22 | |
Ordering Information
| MODE | TYPE | COLOUR | PART NO. | CONFIGURATION |
| SM | APC | GREEN | LCQUADGREEN |
Flange with two holes and SC footprint with metal clips |
| SM | PC | BLUE | LCQUADBLUE | |
| MM | PC | BEIGE | LCQUADBEIGE | |
| MM | PC | AQUA | LCQUADAQUA |
