Specifications
1x2 Fused Optical Splitter1 Low insertion loss
2 Low polarization dependence
3 High optical return loss
1x2 Singlemode Optical Splitter
Fiber optic splitter, also called optical splitter, fiber optic coupler, is a device applied in optical fiber systems with one or more input fibers and one or several output fibers. There are mainly two types of optical splitters. One is fused splitter (FTB),The other is Planar Lightwave Circuits (PLC Splitter).For the fused optical splitter, It can be divided into different ratios. such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other. Planar Lightwave Circuits (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-density output (like 8,16,32,64 outputs). However, The most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, Optical splitter is a very important part in passive optic networks (PON).
1x2 Singlemode Optical Splitter
HIGH QUALITY 1x2 Singlemode Optical Splitter
1 Low insertion loss & excess loss
2 Low polarization dependence
3 High optical return loss
4 Better uniformity
5 Environmental Stability and Reliability
6 Small package size
1x2 Singlemode Optical Splitter Specifications
| Grade Parameter | Grade“A” | ||||
| Operation Wavelength (nm) | 1310 or 1550,1310/1550,1310/1490/1550 | ||||
| Bandwidth (nm) | ±20nm/±40nm | ||||
| Max.Excess Loss (dB) | ≤0.1dB(0.06dB TYP) | ||||
| Coupling Ratio (%) | 50/50 | 40/60 | 30/70 | 20/80 | |
| Typ. Insertion Loss (dB) | 3.1 | 4.1/2.4 | 5.4/1.7 | 7.2/1.1 | |
| Max. Insertion Loss (dB) | 3.4 | 4.5/2.7 | 5.8/2.0 | 7.6/1.5 | |
| Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.15/0.1 | 0.15/0.1 | |
| Thermal Stability (dB /°C) | ≤0.2dB | ||||
| Directivity (dB) | ≥55 dB(≥60dB 2×2) | ||||
| Operating Temperature(°C) | -40°Cto +85°C | ||||
| Package Type | 1.bare fiber 2.0.9 loose tube nnector type: FC/APC,FC/PC,SC/APC,SC/PC, all is optional | ||||
| Pigtail Length | 1 meter, others on request | ||||
| Package Dimensions(mm) | 3*46(min size) | 3*54 | |||
1x2 Singlemode Optical Splitter Applications
1 FTTH, LAN, PON & Optical CATV
2 Local ring net
3 Optical fiber communication system
4 Optical fiber test equipment
5 Optical fiber sensor

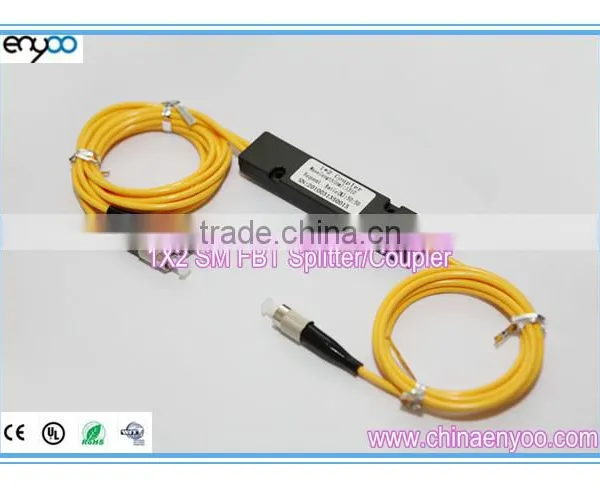

1x2 Singlemode Optical Splitter Image1
1x2 Singlemode Optical Splitter Image2
We Supply all kinds of FBT Splitter and PLC Splitter.
Facory Coner:
