4 Way Fiber Optical Coupler1 Low insertion loss
2 Low polarization dependence
3 High optical return loss
4 Way Fiber Optical Coupler
Fiber optic splitter, also called optical splitter, fiber optic coupler, is a device applied in optical fiber systems with one or more input fibers and one or several output fibers. There are mainly two types of optical splitters. One is fused splitter (FTB),The other is Planar Lightwave Circuits (PLC Splitter).For the fused optical splitter, It can be divided into different ratios. such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other. Planar Lightwave Circuits (PLC Splitter) can not work with different ratio rather than it provide a accurate splitting in high-density output (like 8,16,32,64 outputs). However, The most common type of fiber optic splitter splits the output evenly, which is coming out with the same output of light signals. As a result of its great function, Optical splitter is a very important part in passive optic networks (PON).
4 Way Fiber Optical Coupler
HIGH QUALITY 4 Way Fiber Optical Coupler
1 Low insertion loss & excess loss
2 Low polarization dependence
3 High optical return loss
4 Better uniformity
5 Environmental Stability and Reliability
6 Small package size
4 Way Fiber Optical Coupler Specifications
ITEM | 1×2 | 1×3 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | |
Operating Wavelength (nm) | 1260~1650 | |||||||
Insertion Loss IL(dB) | Typical | 3.6 | 6.0 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
Maximum (P/S) | 3.8/4.0 | 6.2 | 7.1/7.3 | 10.2/10.5 | 13.5/13.7 | 16.5/16.9 | 20.5/21.0 | |
Loss Uniformity (dB) | Typical | 0.4 | 0.4 | 0.5 | 0.5 | 1.0 | 1.0 | 1.5 |
Maximum | 0.6 | 0.6 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
Return Loss(dB) | 50/55 | |||||||
Polarization Dependent Loss (dB) | Typical | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 |
Maximum | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
Directivity (dB) | 55 | |||||||
Operation Temperature(°C) | -40~85 | |||||||
4 Way Fiber Optical Coupler Applications
1 FTTH, LAN, PON & Optical CATV
2 Local ring net
3 Optical fiber communication system
4 Optical fiber test equipment
5 Optical fiber sensor

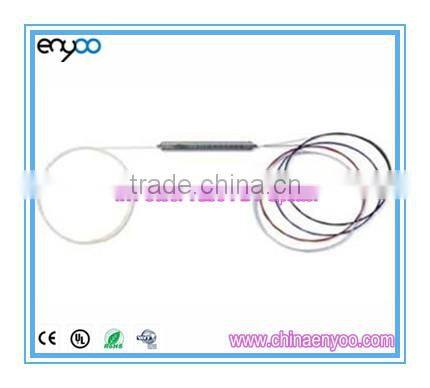

4 Way Fiber Optical Coupler Image1

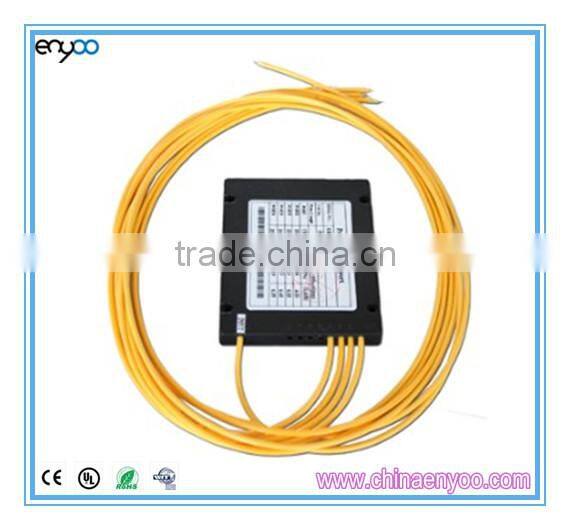

4 Way Fiber Optical Coupler Image2
We Supply all kinds of FBT Splitter and PLC Splitter.
