1*32 Tray Type PLC Splitter manufacturer

Specifications

Tray PLC Splitter
1. Low IL and PDL
2. High reliability
3. High channel counts
4. Wide wavelength range

Tray PLC Splitter Description:



PLC Splitter means planar lightwave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, low polarization dependent Loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks.



The PLC (Planar Light wave Circuit) Splitters are developed based on silica glass wave-guide process with reliable precision aligned fiber pigtail in a miniature package. PLC fiber splitter has many advantages, one semiconductor could realize 1X32 splitting or more, which help make it a small size, and its loss is not sensitive to the working wavelength.



The PLC splitter we offer are:1x2,1x4,1x8,1x16,1x32,1x64,2x4,2x8,2x16,2x32,2x64



Package type:Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type



Tray PLC Splitter Features:

Small size and aesthetic appearance;

Installation quick,reliable performance,stability;

Satisfy with industry standards



Tray PLC Splitter Applications:

Installed in 19"standard rack;

Equipment to be installed is a cable transfer box when the fiber branches in home;

Equipment to be installed is a customized box when the fiber branches in home.



Tray PLC Splitter Advantages:

Simple structure and easily processed;

Good uniformity,in particular the application of PON.



Tray PLC Splitter Performance Specifications:



Parameter		PLC Specifications(Not include the loss of connector)
Operating Wavelength(nm)		1260-1650
Port Type		1x2	1x4	1x8	1x16	1x32	1x64	2x2	2x4	2x8	2x16	2x32	2x64
Insertion Loss(dB)	Typical	3.6	6.8	10.0	13.0	16.0	19.5	4.0	7.0	10.5	13.5	16.5	20.5
	(P/S)Max	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.8	20.5/21.0	4.1/4.3	7.4/7.6	10.8/11.0	14.3/14.5	17.3/17.5	20.7/21.5
Uniformity(dB)	Typical	0.4	0.5	0.5	1.0	1.0	2.5	0.6	0.8	1.0	1.5	2.0	2.0
	Max	0.6	0.6	0.8	1.2	1.5	2.5	0.8	0.8	1.5	2.0	2.5	2.5
PDL(dB)Max	Typical	0.1	0.1	0.1	0.2	0.2	0.2	0.1	0.1	0.1	0.2	0.2	0.2
	Max	0.15	0.15	0.25	0.3	0.3	0.3	0.2	0.2	0.3	0.4	0.4	0.4
Wavelength Department Loss(dB)	Typical	0.1	0.1	0.1	0.1	0.2	0.2	0.1	0.1	0.1	0.1	0.2	0.2
	Max	0.2	0.2	0.2	0.5	0.5	0.5	0.2	0.2	0.3	0.5	0.5	0.5
Temp. Department Loss(dB)	Typical	0.3	0.3	0.3	0.4	0.4	0.4	0.3	0.3	0.3	0.4	0.4	0.4
	Max	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Directivity(dB) Min		55
Return Loss(dB) Min		55(50)
Operating Temperature( °c )		-40-+85
Storage Temperature( °c )		-40-+85
Fiber Length		1m or Customized
Fiber Type		G652, G655, G657(G657 A1), etc.
Connector type		Customized



Parameter		PLC Specifications(Include the loss of connector)
Operating Wavelength(nm)		1260-1650
Port Type		1x2	1x4	1x8	1x16	1x32	1x64	2x2	2x4	2x8	2x16	2x32	2x64
Insertion Loss(dB)	Typical	3.9	7.1	10.3	13.3	16.3	19.8	4.3	7.3	10.8	13.8	16.8	20.8
	(P/S)Max	4.1/4.3	7.4/7.6	10.5/10.8	13.8/14.0	16.8/17.1	20.8/21.3	4.4/4.7	7.7/7.9	11.1/11.3	14.6/14.8	17.6/17.8	21.0/21.8
Uniformity(dB)	Typical	0.4	0.5	0.5	1.0	1.0	2.5	0.6	0.8	1.0	1.5	2.0	2.0
	Max	0.6	0.6	0.8	1.2	1.5	2.5	0.8	0.8	1.5	2.0	2.5	2.5
PDL(dB)Max	Typical	0.1	0.1	0.1	0.2	0.2	0.2	0.1	0.1	0.1	0.2	0.2	0.2
	Max	0.15	0.15	0.25	0.3	0.3	0.3	0.2	0.2	0.3	0.4	0.4	0.4
Wavelength Department Loss(dB)	Typical	0.1	0.1	0.1	0.1	0.2	0.2	0.1	0.1	0.1	0.1	0.2	0.2
	Max	0.2	0.2	0.2	0.5	0.5	0.5	0.2	0.2	0.3	0.5	0.5	0.5
Temp. Department Loss(dB)	Typical	0.3	0.3	0.3	0.4	0.4	0.4	0.3	0.3	0.3	0.4	0.4	0.4
	Max	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5	0.5
Directivity(dB) Min		55
Return Loss(dB) Min		55(50)
Operating Temperature( °c )		-40-+85
Storage Temperature( °c )		-40-+85
Fiber Length		1m or Customized
Fiber Type		G652, G655, G657(G657 A1), etc.
Connector type		Customized



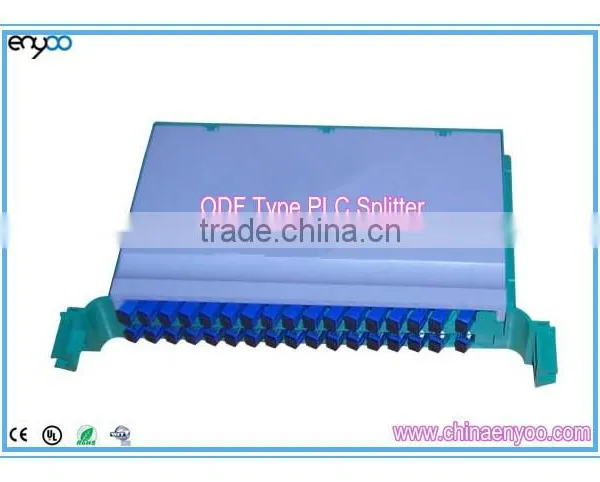

Tray PLC Splitter IMage1





Tray PLC Splitter Image2









WE supply PLC Splitter of  Bare,Fanout type,ABS box(Module),Mini Module,LGX Box,ODF rack type,19' rack type and Also FBT Type Splitter .
